101 Short Tee Combination - Reducing Short Tee

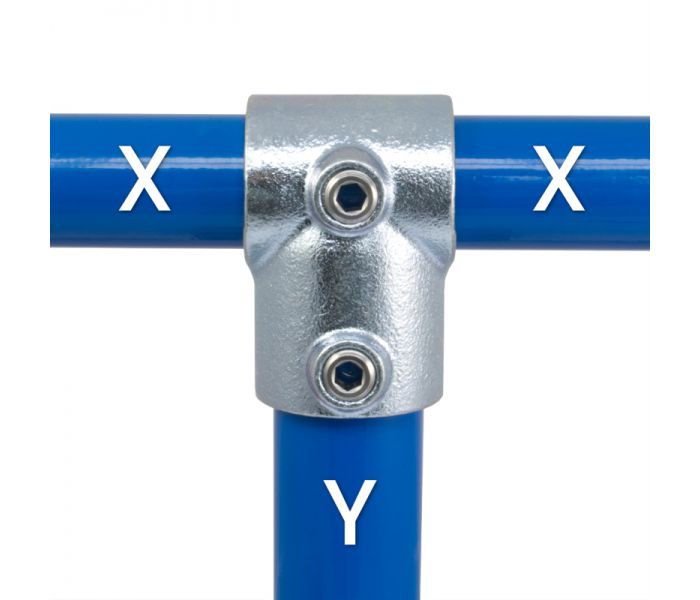

The Interclamp® 101 Short Tee Reducing connector is used to join tubes of unequal size on level sites. The tube clamp cannot be used where the through tube (horizontal in photo) has to be joined within the fitting. The key clamp can be used for handrails, barriers, guardrails, fencing, shopfitting, racking, exhibition stands and so much more.
Typical use on straight and level guardrails to connect the upright to the top rail or end or mid rail to the upright. Tubes cannot be joined inside a 101; to join tubes inside the fitting, use the 104. Normally used in conjunction with the 125 fittings.
Technical Drawing and Size Data
| Size | a (mm) | X | Y | Weight (kg) | Box Qty* | Part No |
| B34/C42 | 56 | B34 | C42 | 0.45 | 50 | 101-B34/C42 |
| C42/B34 | 57 | C42 | B34 | 0.40 | 50 | 101-C42/B34 |
| C42/D48 | 68 | C42 | D48 | 0.58 | 42 | 101-C42/D48 |
| D48/B34 | 64 | D48 | B34 | 0.42 | 50 | 101-D48/B34 |
| D48/C42 | 63 | D48 | C42 | 0.51 | 48 | 101-D48/C42 |
| E60/D48 | 74 | E60 | D48 | 0.69 | 32 | 101-E60/D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures are given as guidance only; dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes before receiving fittings.
