Adjustable Lifting Beam Type PEM 1t to 6t upto 5 metres span - Lifting Beams & Spreader Beams - Lifting, Hoisting and Winching
Adjustable Lifting Beam Type PEM 1t to 6t upto 5 metres span
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
Applications
The lifting of various loads.
Description

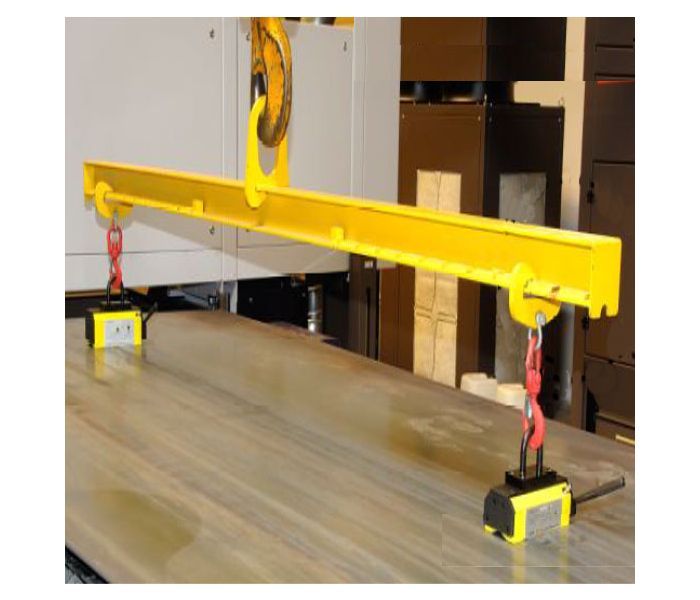

A range of lifting beams with adjustable load-centre distance, fitted with 2 lower attachment components. Each lower attachment point allows a shackle to be attached to which lifting accessories can be fitted. Optional shackles and swivel hooks are available (Lifting magnets not included but can be purchased separately).
Adjustable model: securing of lower attachment points between two steel locking components is simple and sure. The adjustment -with step of 100 mm- is easily made by moving the lower pieces along the beam
Standard sizes available
|
Capacity |
Length |
Minimum |
Adjustment increments mm |
| 1 | 1000 | 400 | 100 |
| 2000 | 1000 | 100 | |
| 3000 | 1000 | 100 | |
| 4000 | 2000 | 100 | |
| 5000 | 2000 | 100 | |
| 2 | 1000 | 400 | 100 |
| 2000 | 1000 | 100 | |
| 3000 | 1000 | 100 | |
| 4000 | 2000 | 100 | |
| 5000 | 2000 | 100 | |
| 3 | 1000 | 400 | 100 |
| 2000 | 1000 | 100 | |
| 3000 | 1000 | 100 | |
| 4000 | 2000 | 100 | |
| 5000 | 2000 | 100 | |
| 4 | 1000 | 400 | 100 |
| 2000 | 1000 | 100 | |
| 3000 | 1000 | 100 | |
| 4000 | 2000 | 100 | |
| 5000 | 2000 | 100 | |
| 5 | 1000 | 400 | 100 |
| 2000 | 1000 | 100 | |
| 3000 | 1000 | 100 | |
| 4000 | 2000 | 100 | |
| 5000 | 2000 | 100 | |
| 6 | 1000 | 400 | 100 |
| 2000 | 1000 | 100 | |
| 3000 | 1000 | 100 | |
| 4000 | 2000 | 100 | |
| 5000 | 2000 | 100 |
Download PDF for full dimensions and safe use..
