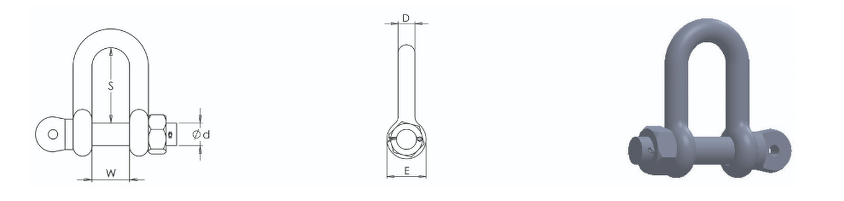

AISI 316L Stainless Steel Safety Pin Dee Shackle
Material: AISI 316L Stainless Steel
Markings: W.L.L. - Size -
Batch Number - Material Grade
Test: Batch Tested and Certified
Finish: Polished
| Part Code | W.L.L. (t) |
D (mm) |
d (mm) |
W (mm) |
S (mm) |
E (mm) |
Weight each (Kg) |
| 201.47.10 | 1.00 | 9.5 | 12 | 20 | 42 | 27 | 0.25 |
| 201.47.16 | 2.00 | 16.0 | 20 | 32 | 65 | 40 | 0.75 |
| 201.47.20 | 3.20 | 19.0 | 22 | 38 | 77 | 46 | 1.12 |
| 201.47.22 | 5.00 | 22.0 | 25 | 44 | 88 | 52 | 1.67 |
| 201.47.25 | 6.30 | 25.0 | 28 | 53 | 105 | 58 |
2.50 |
These load-rated stainless steel Dee shackles are supplied in three different options, screw pin, safety pin and safety pin with captive locking pin (to captivate the shackle to another item of lifting equipment most commonly used in the utility/wastewater sectors).
Load-rated stainless steel shackles are predominantly used in areas of high corrosion, such as the water utility/chemical/oil & gas sectors and food processing plants.
