Aluminium Adjustable Mobile Gantry - 1000 kg capacity
Key Features
- Easy erection and dismantling
- Adjustable height; is a big advantage when operating on uneven ground
- Gantry comes complete with a beam trolley as standard
- Continuously adjustable beam span is very useful in confined spaces
- High quality - built in Germany
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions

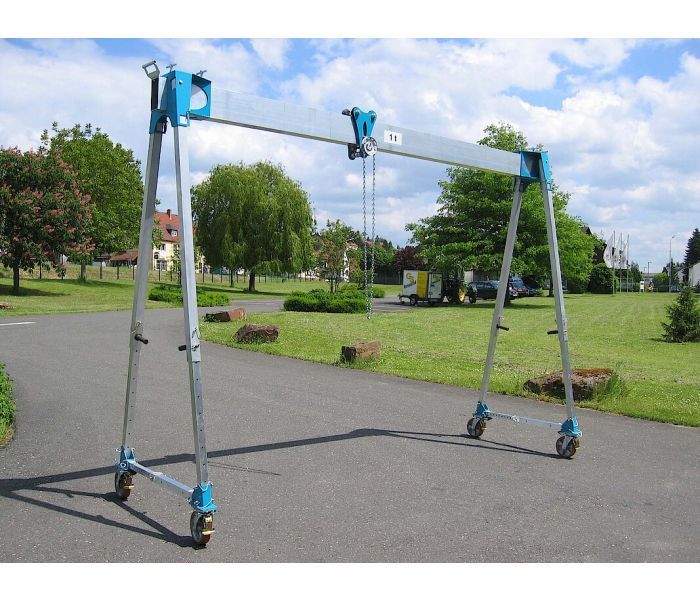

Aluminium Adjustable Mobile Gantry with trolley - 535-150
Easy assembly and easy to move on a level and solid ground
Option for cross country off-road pneumatic tyred
The beam and legs of the crane are manufactured of high-quality aluminium profiles. Therefore the construction is very light and can be easily moved in dismantled condition.
Due to link joints between beam and legs the crane is easily erected by two people: fold out the four legs, secure with bolts and adjust to height. Now only the two undercarriages must be assembled. In this case the erecting aid would prove to be useful, available as an accessory.
As a standard feature, the distance between the legs can be continuously adjusted on both sides via two screw adjustments. The crane height required can be adjusted in intervals.
The 200 mm diameter vulcanised rubber wheels are equipped with steering wheels and a manual brake. On request, cross country off-road wheels with pneumatic tyres are available.
The crane is equipped with a ball bearing trolley LK which is easily moveable on the beam section by pushing the load. The option for the trolley is a locking device. The trolley can be fitted with any manual hoist. The gantry can easily be dismantled for storage requiring very little space.
Specification Aluminium Mobile Gantry AVF- HV 1000 with trolley LK Order no. 535 150
- Safe working load 1000 kg
- Beam length 4,000 mm
- Beam travel distance continuously adjustable up to 3330 mm
- Clear height min./max. 1.88 m / 2.75 m
- Total weight 130 kg
Optional extras
- Erecting aid (2 pieces) Order no. 048 641
- Locking device for the trolley to be actuated by hand chain 9 kg Order no. 048 671
- Manual chain hoist HZE 1.0 Order no. 722 031
Safe working load 1000 kg
Min. headroom height 330 mm Lifting height 3 m. Weight 12 kg - Wheelset: cross country off-road wheels with pneumatic tyres 28 kg
Built by WiMAG Germany - Special designs available (See additional images for details) - contact us for a quote.
