Atlas Standard Mezzanine Pallet Gate 1500mm wide Galvanised
Key Features
- 1.5 m wide x 1.5 m deep inside load area x 1.65 m load height
- Mechanical construction - All parts are replaceable - CE marked
- Easy to install and simple to use - Instructions provided
- Meets HSE and Safety professionals requirements for mezzanine safety
- Galvanised finish - to BS EN ISO 1461
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions

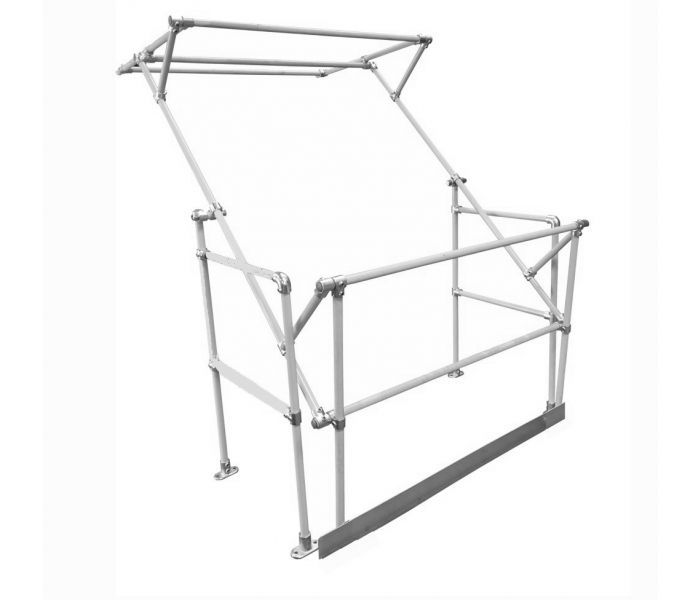

The Atlas 1500 Standard Pallet Gate in Galvanised Finish
Conformance with BS EN ISO 14122-3:2016 for handrails and mezzanine gates
Usually ex-stock subject to order quantity - Delivery 2-3 days

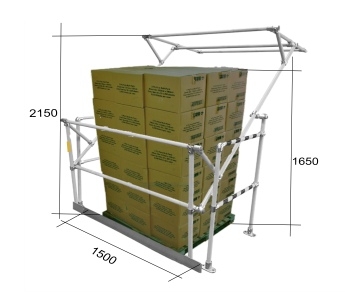

Dimensions
- Inside width 1500 mm (1750 mm overall width)
- Inside depth 1500 mm (1700 mm overall depth)
- Load height 1650 mm (2150 mm Overall height)
- Handrail height 1100 mm
- Space-saving side frames with a depth of 750 mm
SPECIFICATION - Atlas Standard mezzanine safety pallet gate
- Mechanical construction with all replaceable parts.
- Galvanised steel tubing to EN 10255. 33.7 mm diameter tube x 3.2 mm wall thickness. Galvanised to BS EN ISO 1461.
- Kick plate 100 mm x 3 mm Aluminium grade 6063 T6.
- All tube clamps standard cast steel galvanised to BS EN ISO 1461.
- All clamp grub screws are stainless steel to ensure minimal maintenance.
- Nylon pivot bushes with M20 galvanised bolt sets
- The handrail height of the Atlas pallet gate is 1100 mm. The gap between the top, knee rail and bottom guardrail is 466 mm. Guardrail centre to centre 500 mm.
- Testing 300 N/m applied to the pallet edge gate's top rail and knee rail in conformance with EN ISO 14122-3:2016.
Deflection not exceeding 3% of handrail height. - Installation, safe use, and maintenance instructions provided
- Floor fixings not included - Requires 8 x M12 coach bolts for 38mm board floors or M12 bolts/anchors
Features include
- Manufactured in the UK
- Nylon pivot bushes ensure smooth operation and that both gates work in unison.
- An aluminium kick plate (Toe board) prevents material from accidentally being pushed from an elevated space to a lower level.
- Compact side frames allow good pallet access with improved manoeuvrability for pallet removal.
- Weather-resistant all galvanised finish
- Free-standing -simple bolt-to-deck installation.
- Shipped with main sections pre-assembled for simple installation.
Benefits
- Protects all personnel by providing fall protection at all times on walking-working surfaces. This includes any surface higher than 500 mm above the ground level.
- No-weld assembly of components eliminate the need for hot works permits and site shutdowns to deliver a safer,
quicker set-up and installation with little or no damage to the finish. - Modular flexibility - Modular system design adapts to on-site conditions with the flexibility to retrofit, replace broken sections, or disassemble for repositioning when required.
Optional Extras
*Optional Floor Plate: 1250mm wide x 1150mm deep with 100mm deep edge protection - 3mm thick aluminium chequer plate - undrilled
Recommended for use on wooden mezzanine decks - Carriage free, if shipped with your Atlas Pallet Gate
