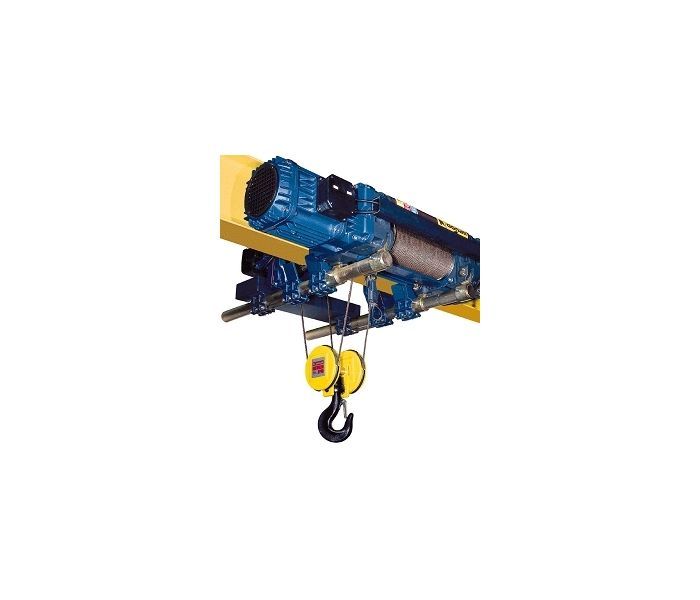

Donati Electric Wire Rope Hoists 800 kg to 50,000 kg for Monorails or Cranes 400V3PH50HZ - Donati - By Brand
Donati Electric Wire Rope Hoists 800 kg to 50,000 kg for Monorails or Cranes 400V3PH50HZ
Please enter details of your application and we will get back to you to discussl
Key Features
- Available in fixed suspension or single and twin beam crab operation
- Single and dual speed lifting and travel options
- Talk to us about special controls or power feed systems you need
- Full specifications available for download
- Get your personalised quotation today
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
- Fixed configuration.
- Normal headroom monorail trolley
- Low headroom monorail trolley, with double girder trolley.
The certified quality system UNI EN ISO 9001:2000 which regulates all the company's activity, allows Donati Sollevamenti to offer a high-level quality product in line with the relevant international standards.
The range of the DRH series electric wire rope hoists have been developed in:4 basic sizes:
DRH 1-2-3-4, to lift from 800 to 50.000 kg, including 1020 standard executions, in the FEM service group (ISO): 1Bm (M3), 1Am (M4) - 2M (M5) - 3M (M6).
1 lifting speed: made with a 4 pole motor: 4 or 6 m/min for 4 rope falls hoists; 8 or 12 m/min for 2 rope falls hoists; 2,7 m/min for 6 rope falls hoists; 2 m/min for 8 rope falls hosts.
2 lifting speeds: made with a 4/12 pole motor, speeds are: 4/1,3 or 6/2 m/min for 4 rope falls hoists; 8/2,6 or 12/4 m/min for 2 rope falls hoists; 2,7/0,9 m/min for 6 rope falls hoists; 2/0,7 m/min for 8 rope falls hosts.
3 lifting speeds: made with 4/12 pole motors the micro speed is obtained by the application of a frequency device on the 12 pole winding.
5 standard versions of drum: short (C), normal (N), long (L) and extra-long (X1) and (X2), for hook runs from 4 to 58 m.
Please download the product attachment for full details.
