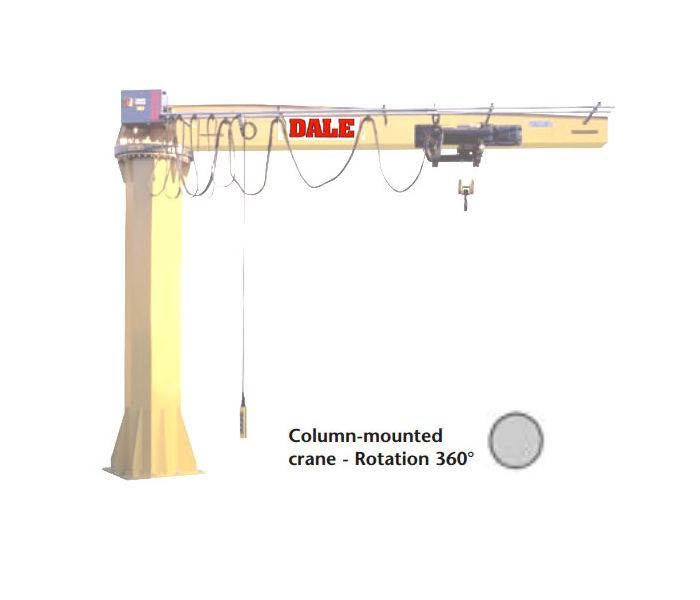

Donati - GBR Continuously Rotating Motorised Jib Cranes 1t to 4t Capacity
Key Features
- Free standing jibs 360 degree continuous rotation
- Available in 1,00, 2.00, 3.20 and 4.00 tonne capacity
- Available in up to 10.5 metre reach and 4.0 metres to underside of beam
- Optional electric hoist
- Foundation template and bolts
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
Tip: Select model from chart below - include your hoist , if required, base fixings (See chart below) and any other options for easy 'Get A Quote' entry
Model features:
1000 to 10000 kgs capacity
Free standing jibs 360-degree continuous rotation
Suitable for use with standard hoists.
Painted with a base and top coat of yellow enamel, subject to preparation of the surfaces by metallic sandblasting. The drying in an oven concludes the cycle.
Jibs can be supplied with the following options:
- Donati 400V 3ph 50Hz electric chain hoist or wire rope hoist with single or dual speed and low voltage pendant.
- Special reach and height
- 400v 3ph. 50 Hz Electric feed system with festooned cables and main/off switch on the column
- Foundation bolts and template or by the addition of an extended counter plate which can be used with chemical anchor fixings in suitable existing concrete floor.
- Outdoor use
- Special paint finish e.g. Off-shore use
- Installation - Subject to location
Contact our sales team for advice on 0161 223 1990
The Donati jib cranes are designed and manufactured according to the ISO A5 classification.
Installation and maintenance instructions are provided.
Full specification available in Donati jib crane catalogue - Download PDF
| Model | Lifting Capacity | Arm | Under Beam (h) |
Speed of Arm | Motor Power kw | Tilting Mome- ntum (kNm) |
Max. fall on the logbolt (kN) | Weight | |||
| Nominal Length (S) | Size of jib Crane | no of revs (rpm) | peri- pheric m/min | Crane | Column by m | ||||||
| kg | m | mm | kg | kg | |||||||
| 2E4040 | 1000kg | 4 | 2 | 4000 | 0.93 | 23.4 | 0.25 | 62 | 79 | 1100 | 122.5 |
| 2E4540 | 4.5 | 2 | 4000 | 0.93 | 26.3 | 0.25 | 71 | 79 | 1140 | 122.5 | |
| 2E5040 | 5 | 2 | 4000 | 0.93 | 29.2 | 0.25 | 81 | 79 | 1170 | 122.5 | |
| 2E5540 | 5.5 | 2 | 4000 | 0.57 | 19.7 | 0.25 | 90 | 79 | 1300 | 122.5 | |
| 2E6040 | 6 | 2 | 4000 | 0.57 | 21.5 | 0.25 | 102 | 79 | 1335 | 122.5 | |
| 2E6540 | 6.5 | 2 | 4000 | 0.57 | 23.3 | 0.25 | 112 | 79 | 1460 | 122.5 | |
| 2E7040 | 7 | 2 | 4000 | 0.57 | 25 | 0.25 | 125 | 79 | 1500 | 122.5 | |
| 2E7540 | 7.5 | 2 | 4000 | 0.57 | 27.3 | 0.25 | 135 | 79 | 1540 | 122.5 | |
| 3E8040 | 8 | 3 | 4000 | 0.43 | 26.9 | 0.25 | 149 | 126 | 1800 | 141.6 | |
| 3E8540 | 8.5 | 3 | 4000 | 0.43 | 23 | 0.25 | 160 | 126 | 1850 | 141.6 | |
| 3E9040 | 9 | 3 | 4000 | 0.43 | 24.3 | 0.25 | 181 | 126 | 2280 | 141.6 | |
| 3E9540 | 9.5 | 3 | 4000 | 0.43 | 25.6 | 0.25 | 195 | 126 | 2360 | 141.6 | |
| 3E1040 | 10 | 3 | 4000 | 0.43 | 27 | 0.25 | 208 | 126 | 2440 | 141.6 | |
| 3E1540 | 10.5 | 3 | 4000 | 0.43 | 28.3 | 0.25 | 221 | 126 | 2520 | 176.5 | |
| Model | Lifting Capacity | Arm | Under Beam (h) | Speed of Arm | Motor Power kw | Tilting Mome- ntum (kNm) |
Max. fall on the logbolt (kN) | Weight | |||
| Nominal Length (S) | Size of jib Crane | no of revs (rpm) | peri- pheric m/min | Crane | Column by m | ||||||
| kg | m | mm | kg | kg | |||||||
| 2H4040 | 2000kg | 4 | 2 | 4000 | 0.87 | 21.9 | 0.37 | 109 | 79 | 1160 | 122.5 |
| 2H4540 | 4.5 | 2 | 4000 | 0.78 | 22 | 0.37 | 126 | 79 | 1300 | 122.5 | |
| 2H5040 | 5 | 2 | 4000 | 0.78 | 24.5 | 0.37 | 142 | 79 | 1340 | 122.5 | |
| 2H5540 | 5.5 | 2 | 4000 | 0.78 | 27 | 0.37 | 161 | 79 | 1380 | 122.5 | |
| 2H6040 | 6 | 2 | 4000 | 0.78 | 29.4 | 0.37 | 179 | 79 | 1530 | 152.6 | |
| 3H6540 | 6.5 | 3 | 4000 | 0.53 | 21.5 | 0.37 | 202 | 126 | 1860 | 141.6 | |
| 3H7040 | 7 | 3 | 4000 | 0.53 | 23.2 | 0.37 | 221 | 126 | 2045 | 176.5 | |
| 3H7540 | 7.5 | 3 | 4000 | 0.53 | 24.8 | 0.37 | 241 | 126 | 2130 | 176.5 | |
| 3H8040 | 8 | 3 | 4000 | 0.53 | 26.5 | 0.37 | 260 | 126 | 2185 | 176.5 | |
| 4H8540 | 8.5 | 4 | 4000 | 0.49 | 26.4 | 0.37 | 282 | 183 | 2550 | 219.7 | |
| 4H9040 | 9 | 4 | 4000 | 0.49 | 27.9 | 0.37 | 303 | 183 | 2590 | 219.7 | |
| 4H9540 | 9.5 | 4 | 4000 | 0.49 | 29.5 | 0.37 | 326 | 183 | 2870 | 273.5 | |
| 5H1040 | 10 | 5 | 4000 | 0.4 | 25.4 | 0.37 | 348 | 183 | 2880 | 183.6 | |
| 5H1540 | 10.5 | 5 | 4000 | 0.4 | 26.4 | 0.37 | 372 | 183 | 2925 | 183.6 | |
| Model | Lifting Capacity | Arm | Under Beam (h) | Speed of Arm | Motor Power kw | Tilting Mome- ntum (kNm) |
Max. fall on the logbolt (kN) | Weight | |||
| Nominal Length (S) | Size of jib Crane | no of revs (rpm) | peri- pheric m/min | Crane | Column by m | ||||||
| kg | m | mm | kg | kg | |||||||
| 2J4040 | 3200kg | 4 | 2 | 4000 | 0.93 | 23.4 | 0.37 | 164 | 79 | 1380 | 152.6 |
| 3J4540 | 4.5 | 3 | 4000 | 0.91 | 25.7 | 0.37 | 191 | 126 | 1490 | 141.6 | |
| 3J5040 | 5 | 3 | 4000 | 0.91 | 28.6 | 0.37 | 215 | 126 | 1525 | 141.6 | |
| 3J5540 | 5.5 | 3 | 4000 | 0.63 | 21.8 | 0.37 | 242 | 126 | 1755 | 141.6 | |
| 3J6040 | 6 | 3 | 4000 | 0.63 | 23.8 | 0.37 | 268 | 126 | 1940 | 176.5 | |
| 4J6540 | 6.5 | 4 | 4000 | 0.59 | 24.2 | 0.37 | 295 | 183 | 2330 | 219.7 | |
| 4J7040 | 7 | 4 | 4000 | 0.49 | 21.8 | 0.37 | 322 | 183 | 2585 | 273.5 | |
| 5J7540 | 7.5 | 5 | 4000 | 0.5 | 23.8 | 0.37 | 353 | 183 | 2575 | 183.6 | |
| 5J8040 | 8 | 5 | 4000 | 0.5 | 25.4 | 0.37 | 381 | 183 | 2695 | 183.6 | |
| 5J8540 | 8.5 | 5 | 4000 | 0.4 | 21.6 | 0.37 | 411 | 183 | 2990 | 229 | |
| 5J9040 | 9 | 5 | 4000 | 0.4 | 22.8 | 0.37 | 440 | 183 | 3055 | 229 | |
| 5J9540 | 9.5 | 5 | 4000 | 0.35 | 21 | 0.55 | 472 | 183 | 3235 | 229 | |
| 5J1040 | 10 | 5 | 4000 | 0.35 | 22 | 0.55 | 502 | 183 | 3485 | 274 | |
| 5J1540 | 10.5 | 5 | 4000 | 0.35 | 23.2 | 0.55 | 535 | 183 | 3555 | 274 | |
| Model | Lifting Capacity | Arm | Under Beam (h) | Speed of Arm | Motor Power kw | Tilting Mome- ntum (kNm) |
Max. fall on the logbolt (kN) | Weight | |||
| Nominal Length (S) | Size of jib Crane | no of revs (rpm) | peri- pheric m/min | Crane | Column by m | ||||||
| kg | m | mm | kg | kg | |||||||
| 3K4040 | 4000kg | 4 | 3 | 4000 | 0.91 | 22.9 | 0.37 | 208 | 126 | 1575 | 141.6 |
| 3K4540 | 4.5 | 3 | 4000 | 0.91 | 25.7 | 0.37 | 239 | 126 | 1770 | 176.5 | |
| 3K5040 | 5 | 3 | 4000 | 0.91 | 28.6 | 0.37 | 270 | 126 | 1835 | 176.5 | |
| 4K5540 | 5.5 | 4 | 4000 | 0.64 | 22.1 | 0.55 | 301 | 183 | 2415 | 273.5 | |
| 4K6040 | 6 | 4 | 4000 | 0.64 | 24.1 | 0.55 | 335 | 183 | 2525 | 273.5 | |
| 5K6540 | 6.5 | 5 | 4000 | 0.53 | 21.6 | 0.55 | 367 | 183 | 2510 | 183.6 | |
| 5K7040 | 7 | 5 | 4000 | 0.53 | 23.3 | 0.55 | 402 | 183 | 2805 | 229 | |
| 5K7540 | 7.5 | 5 | 4000 | 0.53 | 25 | 0.55 | 435 | 183 | 2860 | 229 | |
| 5K8040 | 8 | 5 | 4000 | 0.53 | 26.6 | 0.55 | 471 | 183 | 2965 | 229 | |
| 5K8540 | 8.5 | 5 | 4000 | 0.44 | 23.5 | 0.55 | 505 | 183 | 3280 | 274 | |
| 5K9040 | 9 | 5 | 4000 | 0.44 | 24.9 | 0.55 | 540 | 183 | 3350 | 274 | |
| 5K9540 | 9.5 | 5 | 4000 | 0.44 | 26.2 | 0.55 | 578 | 183 | 3575 | 274 | |
| 5K1040 | 10 | 5 | 4000 | 0.35 | 22.1 | 0.55 | 619 | 183 | 3655 | 341.6 | |
| 5K1540 | 10.5 | 5 | 4000 | 0.35 | 23.2 | 0.55 | 648 | 183 | 3725 | 341.6 | |
| Size of Jib Crane | 2 | 3 | 4 | 5 | 6 |
| Base plate and foundation frame (mm) | 750 | 860 | 910 | 1100 | 1220 |
| Clamping couples for the logbolts (Nm) | 350 | 680 | 1200 | 1200 | 1200 |
| Weight of the frame with logbolts (kg) | 34.5 | 52.5 | 80 | 113 | 120 |
| Jib crane max. weight (kg) (without hoist and trolley) | 1540 | 2520 | 2870 | 3785 | 4180 |
| Maximum tilting momentum (kNm) | 179 | 270 | 335 | 649 | 788 |
