GIS - GP ATEX and GCH ATEX Explosion Protected chain hoists - GIS - By Brand

In stock
SKU
GIS-ATEX

GIS - GP ATEX and GCH ATEX Explosion Protected chain hoists

Maximum 20 characters

Maximum 10 characters

Maximum 500 characters

In stock
Quantity

Key Features

  • Lifting Capacity: GP250 - 1000: 2500 kg, GCH1600 - 2500: 5000 kg
  • Electric Chain Hoist explosion-proof in ATEX Design Dust- or gas-protected design For zones 22 (D) and 2 (G)
  • Degree of protection IP65 Optional motorized trolleys in ATEX design
  • 400V 3 phase - Eye bolt suspension or travel options available
Delivery Options

Delivery Information

Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.

Returns Policy

Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.

Non-standard (Quote only, pre-order or custom-made products)

Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.

For more information see https://www.dlhonline.co.uk/terms-conditions

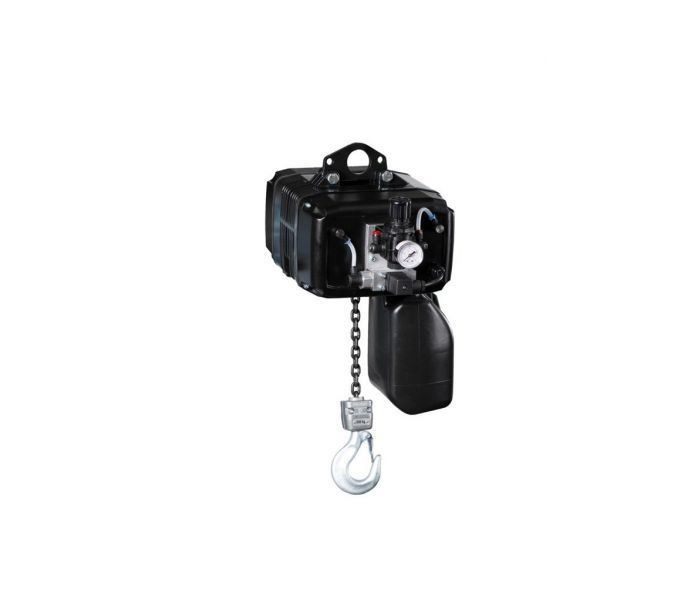

 GP ATEX and GCH ATEX, up to 5000 kg

  • Electric Chain Hoist explosion-proof in ATEX Design Dust- or gas-protected design
  • For zones 22 (D) Dust proof  Risk area: II 3D Ex tc IIIA T130°C Dc
  • For Zone 2 (G) Gas proof Risk area II 3D Ex tc IIIA T130°C Dc II 3G Ex pz IIA T3 Gb
    gas-gun version offers maximum safety: The ingress
    of gas is prevented by overpressure in the housing. If the pressure drops in the housing, the operating voltage is interrupted immediately and the lifting process thus stopped.
  • The degree of protection IP65
  • Optionally motorized trolleys in ATEX designs

Download PDF for details

Technical specifications
Standard version

  • Maximum payload (2-way):
  • GP250 - 1000: 2500 kg, GCH1600 - 2500: 5000 kg
  • 3 ph 400 V / 50 Hz,
  • Control 42 V Low voltage
  • 3-phase motor: 1 or 2 speeds

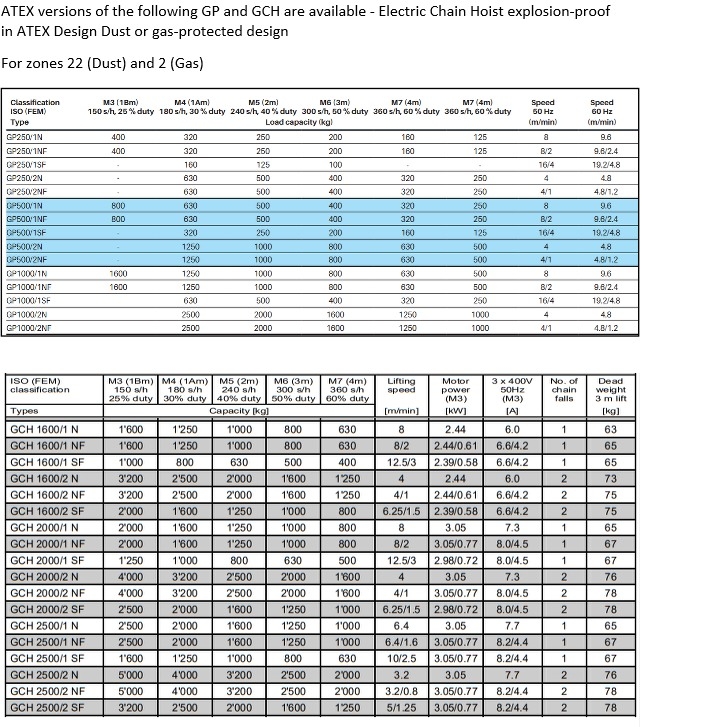

Technical specification

Hoist Models (Select duty rating required for your quote - Hoist will be badged with rated capacity chosen)

Gis Atex hoists



Accessories & Options

(Add to special requirements)

  • Other operating voltages on request
    Other control voltages on request
    Hook suspension
    Safety load hook
    Chain storage for various lifting heights
    Motor and hand suspensions
