GIS GP Wind Industry Electric Chain Hoist 3 Phase 400 V / 50 Hz,
Key Features
- Lifting capacity up to 1000 kg
- Electric chain hoist for wind turbines
- Lifting speed up to 16 m / min. Lifting height up to 200 m
- Temperature monitoring with motor shutdown function in the event of overheating
- Automatic switching from high to low stroke speed shortly before the stroke end via gear limit switch
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
GIS GP Wind Industry Electric Chain Hoist 3 Phase 400 V / 50 Hz,;
Wind power GP, up to 1000 kg
General information
- Electric chain hoist for wind turbines Lifting speed up to 16 m / min.
- Lifting height up to 200 m
- Temperature monitoring with motor shutdown function in the event of overheating
- Automatic switching from high to low stroke speed shortly before the stroke end via gear limit switch External limit switch for hook end positions
- Special tempered chain Load hook with protective cover
- Optional with hand or motorized suspension
- Optional with chain magazine
Scope of supply
- Standard version
- Capacity: maximum of 1000 kg (1-leg)
3 phase 400 V / 50 Hz - Control 42 V Low voltage
- 3-phase motor: 2 speeds
- Eyelet suspension
- Gear limit switch
- Ergonomic control switch with emergency stop
- Protection class IP65
- Insulation class F (engine)
- DC-spring pressure brake
- slip clutch is not in the power flow
Features:
- External limit switch for top hook position
- Automatic switching from high to lower before the end of stroke
- Temperature monitoring having a shutdown function in case of overheating
- Tempered special chain
- Hook with guard
Customer benefits
Electric chain hoists are mainly used in the wind industry to transport spare parts and tools from the ground up into the nacelle.
Due to the high lifting height, the chain hoist used for this purpose is equipped with a number of special features.
For example, automatic switching from high to low lifting speed takes place when the load hook approaches the end of the stroke.
This feature prevents high-speed travel against the hoist housing because of the risk that unsecured parts of the load (eg tools in a toolbox) may come loose and fall off.
Another special feature is the protective cover over the load hook. This eliminates the risk that the load hook will hang on the long way up somewhere unintentionally.

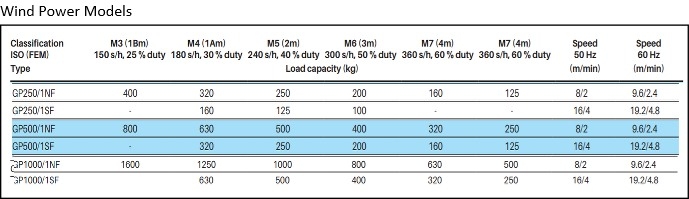

Hoist Models (Select duty rating required for your quote - Hoist will be badged with rated capacity chosen)
Accessories and options (Add to special requirements)
-
Other operating voltages on request
-
Other control voltages on request
-
Hook suspension
-
Safety load hook
-
Operating hours and switching counters
-
Manual brake bleeding
-
Chain box for various lift heights
-
Heights up to 200 m
-
Motor and push trolleys
-
Special suspension
-
Gear grease for low-temperature applications
