Haacon Wall mounted hand winch - Type 4210 Plated or Stainless Steel 80 - 125 kg capacity - Haacon - By Brand
Haacon Wall mounted hand winch - Type 4210 Plated or Stainless Steel 80 - 125 kg capacity
Key Features
- Easy safe operation,and space-saving mounting
- Wall mounted spur gear winch with fixed crank • Compact unobtrusive hand winches
- Pressed steel with zinc plating, corrossion resistant
- or Painted cast iron and Stainless Steel version available A304
- With automatic Siku type brake - self sustaining
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions

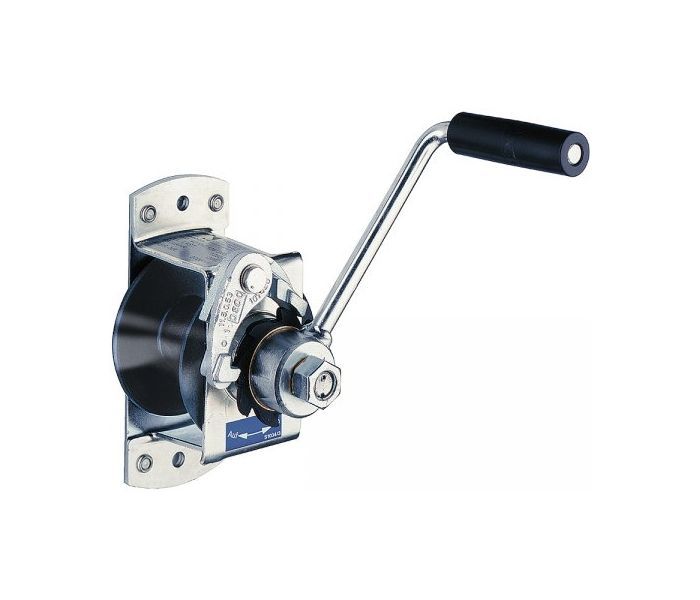

HAND WINCH TYPE 4210
Lifting capacity 80 kg - 125 kg for wall mounting
• Wall mounted spur gear winch with fixed crank
• Compact unobtrusive hand winches
• Pressed steel with zinc plating, corrosion resistant
• Easy, safe operation
• Rope outlet in any direction
• With automatic Siku type brake - self-sustaining
• Stainless Steel version available - 125 kg Material A304
| Type | 421 0,125 | 4210.08 | 4210.0.125 | 421.0.125SS |
| Finish | Painted | Zinc Plated | Zinc Plated | Stainless Steel |
| Lifting Capacity 1st Layer: | 125kg | 80kg | 125kg | 125kg |
| Lifting Capacity Last Layer: | 64 kg | 40kg | 64kg | 64kg |
| Lift per crank turn | 135mm | 135mm | 135mm | 135mm |
| Rope Capacity Total: | 15 | 20m | 15m | 15m |
| Rope Diameter: | 4mm | 3mm | 4mm | 4mm |
| Ratio: | 1:1 | 1:1 | 1:1 | 1:1 |
| Required Effort: | 17 kg | 17kg | 17kg | 17kg |
| Weight: | 4.0kg | 3.0 kg | 3.0kg | 5.0kg |
Winch supplied without wire rope -- To purchase CLICK HERE
