AISI 316 STAINLESS STEEL Safety Pin Dee Shackle C/W Captivating Locking Pin - William Hackett - By Brand

Out of stock
SKU
13857

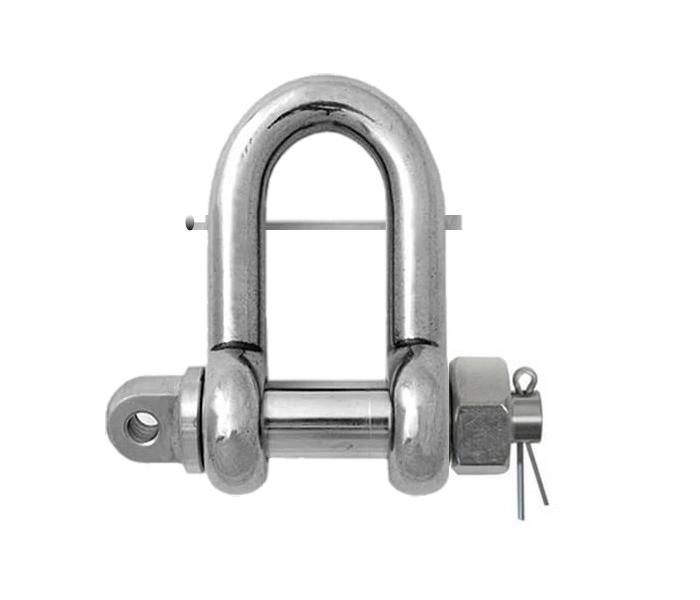

AISI 316 STAINLESS STEEL Safety Pin Dee Shackle C/W Captivating Locking Pin

AISI 316L Stainless Steel Safety Pin Dee Shackle C/W Captivating Locking Pin

Material: AISI 316L Stainless Steel
Markings: W.L.L. - Size -
Batch Number - Material Grade
Test: Batch Tested and Certified
Finish: Polished

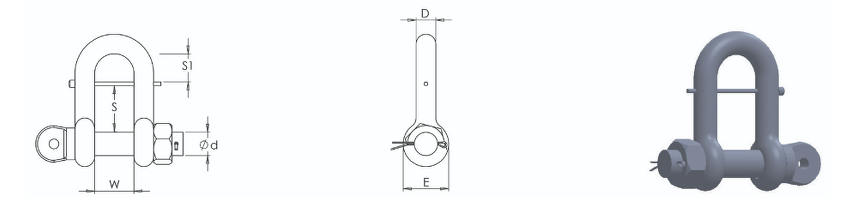

AISI 316L Stainless Steel Safety Pin Dee Shackle C/W Captivating Locking Pi
 Part Code W.L.L.
(t)
D
(mm)
 d
(mm)
 W
(mm)
S
(mm)
 S1
(mm)
 E
(mm)
Weight
each (Kg)
201.46.10  1.00 9.5  12  20  25  15  27  0.25
201.46.16  2.00  16.0  19  32  40  22  40  0.75
201.46.20  3.20  19.0  22  38  45  28  46  1.12
201.46.22  5.00  22.0  25  44  55  29  52  1.67
These load-rated stainless steel Dee shackles are supplied in three different options, screw pin, safety pin and safety pin with captive locking pin (to captivate the shackle to another item of lifting equipment most commonly used in
the utility/wastewater sectors).
Load-rated stainless steel shackles are predominantly used in areas of high corrosion, such as the water utility/chemical / oil & gas sectors as well as food processing plants.
AISI 316L Stainless Steel Safety Pin Dee Shackle c/w Captivating Lock
