Hackett WH-GT Geared Trolleys 500 kg to 10 tonnes
Key Features
- High quality trolley range is precision engineered in W.L.L. capacities from 500 Kg to 10 tonnes.
- Enabling exact positioning or easy traversing of large loads incorporating manual hoists,
- Geared trolley can be supplied to suit various track widths within the standard beam range 1 and the extended beam range 2.
- The runners (trolley wheels) are precision machined and they rotate on maintenance sealed ball bearings.
- All William Hackett geared trolleys are fitted with anti-jump bars and rubber end stops as standard.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
The William Hackett WH-GT Geared Travel Trolleys meet and exceed the requirements of international standard and British Standard BS EN 13157:2004 + AI:2009.
This high-quality trolley range is precision engineered in capacities from 500Kg to 10 tonnes. Enabling exact positioning or easy traversing of large loads incorporating Manual hoists, the Hackett series push trolley can be supplied to suit various track widths with Beam Range 1 and the extended Beam Range 2.
It has been designed so that the bottom of the hand chain loop is 500mm from ground level.
The runners (trolley wheels) are precision machined and they rotate on maintenance sealed ball bearings.
All Hackett geared trolleys are fitted with anti-jump bars and rubber end stops as standard.

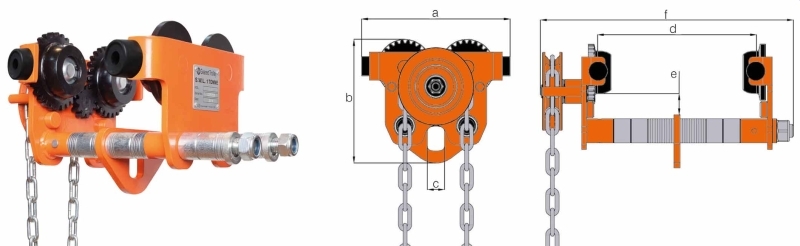

Specifications
|
Part Code |
WLL |
Min.radius |
a mm |
b mm |
c mm |
e mm |
| 055.050 | 0.50 | 0.8 | 190 | 154 | 22 | 27 |
| 055.100 | 1.00 | 0.9 | 206 | 180 | 30 | 26 |
| 055.200 | 2.00 | 1.0 | 246 | 210 | 37 | 26 |
| 055.320 | 3.20 | 1.2 | 300 | 249 | 42 | 28 |
| 055.500 | 5.00 | 1.3 | 336 | 277 | 50 | 37 |
| 055.1000 | 10.00 | 2.0 | 396 | 334 | 58 | 37 |
Standard Range 1
|
WLL |
I Beam Width |
d Max. width |
f Max. |
Mass |
| 0.50 | 50-203 | 203 | 323 | 9.60 |
| 1.00 | 64-203 | 203 | 332 | 12.30 |
| 2.00 | 88-203 | 203 | 341 | 17.20 |
| 3.20 | 100-203 | 203 | 359 | 28.40 |
| 5.00 | 114-203 | 203 | 366 | 40.10 |
| 10.00 | 124-203 | 203 | 386 | 62.00 |
Extended Range 2
|
Part |
WLL |
I Beam Width |
d Max. width |
f Max. |
Mass |
| 055.050 | 0.50 | - | - | - | - |
| 055.100 | 1.00 | 64-305 | 305 | 434 | 13.70 |
| 055.200 | 2.00 | 88-305 | 305 | 443 | 19.00 |
| 055.320 | 3.20 | 100-305 | 305 | 461 | 31.20 |
| 055.500 | 5.00 | 114-305 | 305 | 468 | 44.20 |
| 055.1000 | 10.00 | 124-305 | 305 | 488 | 67.00 |
