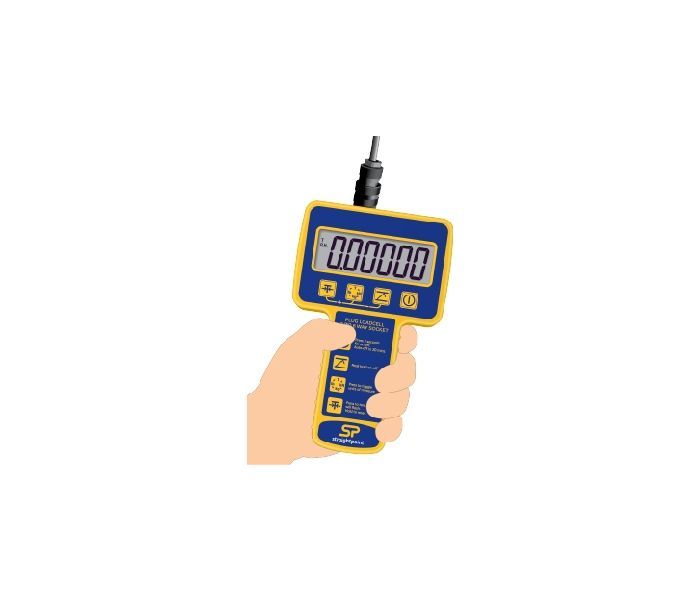

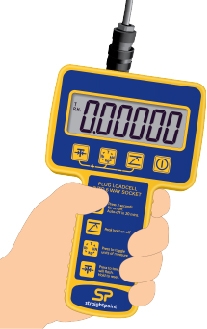

Handheld plus for cabled loadcells

The Handheld plus is a rugged and versatile digital handheld display with a broad range of features and suitable for all Straightpoint load cell products.

At the heart of the ergonomically designed Handheld plus is a powerful PCB providing industry-leading features such as user-selectable units of measure (tonnes, lbs, kg, and kN), programmable audible overload alarm, peak hold, pre-set tare and a user resettable overload counter.

This crucial overload alarm counter is a requirement for many safety and quality control departments, as it keeps track of overload events, allowing the load cell in question to be removed from service immediately, following the calibration voiding overload event. The load cell in question can then be sent out for proper testing and, if necessary, recalibration before re-entering service.

The HHP is suitable for connection via cable to any Straightpoint cabled load cell product and easily adapted to any other manufacturers’ load cell product with a mv/v output.

Wall or cab mount bracket for SW-HHP, SW-AC or HHP

Constructed from stainless steel and fitted with a viewing angle adjusting mechanism

the SU3282 bracket fits either the HHP or SW-HHP handheld displays.
Ideal for wall or cab mounting leaving the operators hands free to work safely

Cable version of data logging software

Windows-based software package. DCP10M simply plugs into the spare port on the load cell and connects to a Windows-based PC, laptop or tablet.

This easy to use software allows the operator to view live loads, control the loadcell on screen and then log data using either of two methods. The first method allows the operator to set up a time interval and then load data directly into a .csv file by time and date as the test is happening.

The file can then be opened in Microsoft Excel and the data analysed; this is especially useful for dynamic load monitoring applications. Secondly, the software will allow the operator to generate a single load report within Microsoft Word – this report details the load applied and the time and date of the test.

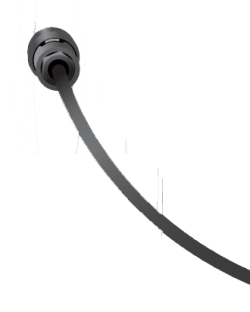

This function is very useful in testing applications where an ultimate load needs to be achieved and recorded. DCP10M is supplied with a 10metre or 30-foot cable assembly, other lengths are available on application. A spare USB port is required.

Protective boot for SW-HHP and HHP

Drop tested to one metre at –30°C this 70SHA rubber boot is purpose moulded to fit
and protect the HHP and SW-HHP handheld display against impact when being used
in the harshest industrial environments
