Yale RPE 400V or 230V Electric Wire Rope Winches - 250-2000 kg - Yale Winches - Yale - By Brand

In stock
SKU
388

Yale RPE 400V or 230V Electric Wire Rope Winches - 250-2000 kg

Be the first to review this product
Price on Request

Maximum 10 characters

In stock
Quantity
Add to Compare

Key Features

  • 250 to 2000 kg capacities
  • Spring pressure disc brake incorporated in the motor holds the load secure
  • Designed explicitly for performance, efficiency and safety
  • Extremely compact, practical cube design and universal rope lead-offs allow individual applications in almost any position
  • Many optional features available - Please select as required
Delivery Options

Delivery Information

Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.

Returns Policy

Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.

Non-standard (Quote only, pre-order or custom-made products)

Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.

For more information see https://www.dlhonline.co.uk/terms-conditions

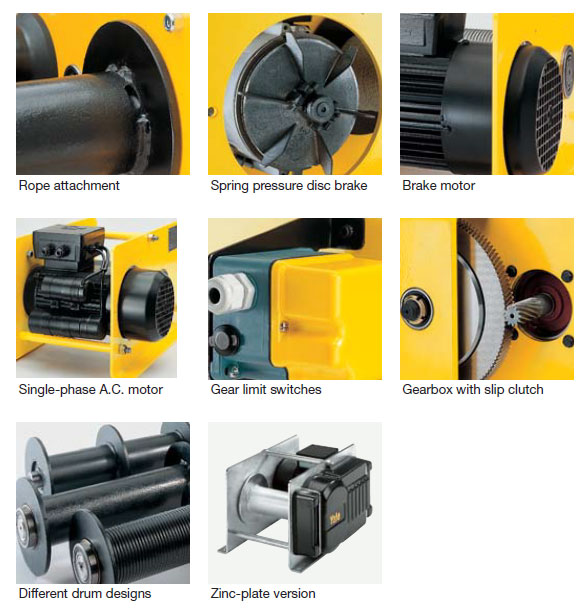

main product photo
For more information about this, or any of our other products contact our team on 0161 223 1990 or send us a message >


YALE Electric winch model RPE Capacity 250 - 2000 kg

Winches series RPE  are designed explicitly for performance, efficiency and safety and offer many advantages
and options. RPE‘s extremely compact, practical cube design and universal rope lead-offs allow individual applications in almost any position, making them powerful aids for lifting and pulling loads.

250 kg, 500 kg and 1,000 kg available in 230V 1 ph 50 Hz and 400V 3ph 50Hz
2,000 kg available in 400V 3ph 50 only

Model Capacity
kg		 Lifting speed m/min Rope layers max. Rope diameter mm Motor
kW		 ED Weight without rope kg
1st layer top layer L XL
RPE 2-13 L 250 10.2 13.2 4 4 0.55 40 % 40 48
RPE 5-6 L 500 4.6 6.6 4 6 0.55 40 % 41 49
RPE 5-12 L 500 8.7 12.6 4 6 1.1 40 % 47 54
RPE 10-6 L¹ 1000 5.1 6.5 3 8 1.1 40 % 89 105
RPE 20-6 ¹ 2000 5.2 7.6 3 12 2.2 40 % 213 235
¹Adjustable slip clutch as standard

The winches are designed to DIN 15020, classification 1 Bm/M3, safety regulation BGV D8 (winch, lift and pull
equipment) and, of course, the EC machinery directives. Every winch is factory tested with overload.

The units are supplied with a test certificate showing the unit‘s serial no. and an operating instructions manual
which contains a manufacturer‘s declaration.

Features
  • Compact dimensions due to internal brake motor.
  • Voltage 400 V 3-phase, 50 Hz, protected to IP 54, insulation class F. All models or  Single-phase A.C. motor 230 V, 50 Hz, #up to 1,000 kg only
  • 42 V low voltage control option 250 kg to 2000 kg.
  • Adjustable slip clutch to protect the winch from overloading standard for model RPE 10-6.
  • Spur gear transmission with helical first gear ensures smooth motion. It is lubricated by grease and can be used in any position.
  • The spring pressure disc brake incorporated in the motor holds the load secure even in a power failure.
  • Plain rope drum standard.
  • The rope is secured to the drum in a recess so that the rope can be wound onto the drum in several layers without damage.
  • Direct control or 42 V low voltage control (incl. pushbutton with emergency stop and 2 m control cable).



Options - Contact us.
  • Different drum designs, e.g. extended to accommodate longer rope (see below)
  • Machined grooves for exact reeling, with separation web and 2nd rope outlet for working with two ropes.
  • Geared limit switches to limit rope motion in both directions (in combination with 42 V low voltage control).
  • Slack rope switch to automatically stop the winch when rope tension eases e.g. when the load touches down (only in combination with low voltage control)
  • Frequency converter for stepless speed control.
  • Adjustable slip clutch to protect the winch from overloading for models RPE 2-13, RPE 5-6 and RPE 5-12.
  • Special design according to BGV C1 for theatre stage applications available.
  • Radio remote control.Other operating voltages - Note: 110V not available.
  • Stainless brake.

Technical Specifications

Plain drum capacity

Model Capacity top layer kg Drum size Useable rope length max. m
1st layer 2nd layer 3rd layer 4th layer
RPE 2-13 ¹ 250 1¹ 11.1 24.5 39 54
RPE 5-6 ¹ 500 1¹ 7.4 16.9 27 38
RPE 10-6 ¹ 1000 1¹ 10.1 23.0 37 –
RPE 20-6 2000 1 13.2 30.3 49 –
RPE 2-13 L 250 2 16.8 36.4 57 80
RPE 5-6 L 500 2 11.3 25.2 40 57
RPE 5-12 L 500 2 11.3 25.2 40 57
RPE 10-6 L 1000 2 15.8 35.2 56 –
RPE 20-6 L 2000 2 20.6 46.1 74 –
RPE 2-13 XL 250 3 44.3 94.1 148 200
RPE 5-6 XL 500 3 30.0 65.5 105 149
RPE 5-12 XL 500 3 65.0 65.5 105 149
RPE 10-6 XL 1000 3 30.7 67.0 107 –
RPE 20-6 XL 2000 3 34.1 74.9 120 –


Grooved drum capacity

Model Capacity top layer kg Drum size Useable rope length m
1st layer max.
RPE 2-13 R¹ 250 1¹ 8.8 43
RPE 5-6 R¹ 500 1¹ 6.2 33
RPE 10-6 R¹ 1000 1¹ 8.2 30
RPE 20-6 R 2000 1 12.0 44
RPE 2-13 LR 250 2 13.3 64
RPE 5-6 LR 500 2 9.5 49
RPE 5-12 LR 500 2 9.5 49
RPE 10-6 LR 1000 2 12.9 47
RPE 20-6 LR 2000 2 16.8 61
RPE 2-13 XLR 250 3 35.3 165
RPE 5-6 XLR 500 3 25.7 128
RPE 5-12 XLR 500 3 25.7 128
RPE 10-6 XLR 1000 3 25.2 89
RPE 20-6 XLR 2000 3 27.9 99

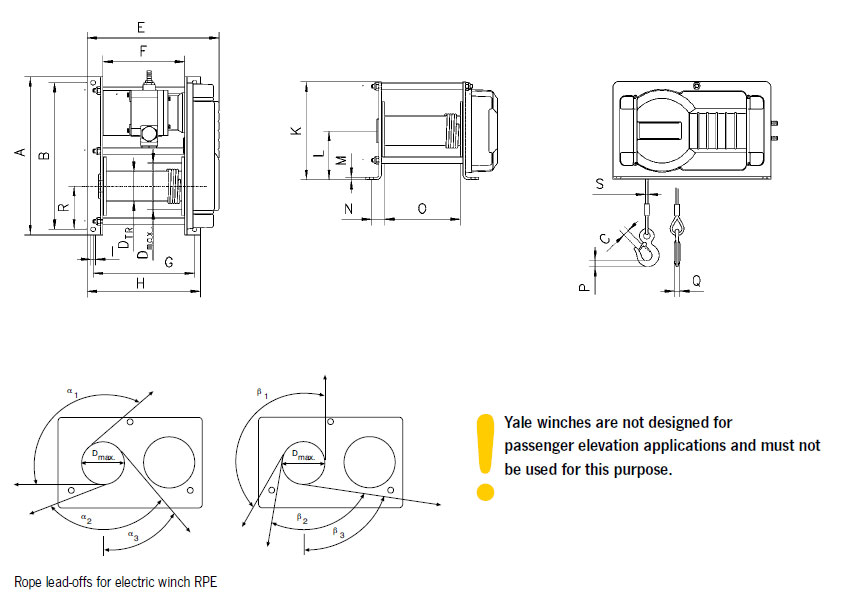

Dimensions (See key diagrams in images above

Model RPE 2-13 ¹
RPE 5-6 ¹		 RPE 2-13 L
RPE 5-6 L
RPE 5-12 L		 RPE 2-13 XL
RPE 5-6 XL
RPE 5-12 XL		 RPE 10-6 ¹ RPE 10-6 L RPE 10-6 XL RPE 20-6 RPE 20-6 L RPE 20-6 XL
A, mm 405 405 405 525 525 525 670 670 670
B, mm 375 375 375 485 485 485 550 550 550
C, mm 18 18 18 25 25 25 36 36 36
DTR, mm 76 76 76 108 108 108 146 146 146
D max, mm 104 118 118 148 148 148 224.4 224.4 224.4
DA, mm 150 150 150 180 180 180 245 245 245
E, mm 338 428 865 450 575 902 619 784 1084
F, mm 210 300 737 270 395 722 360 525 825
G, mm 260 350 787 345 470 797 480 645 945
H, mm 290 380 817 380 505 832 540 705 1005
I, mm 11 11 11 13 13 13 23 23 23
K, mm 250 250 250 340 340 340 401 401 401
L, mm 125 125 125 170 170 170 215 215 215
M, mm 6 6 6 10 10 10 15 15 15
N, mm 33 33 33 47.5 47.5 47.5 72.5 72.5 72.5
O, mm 194 284 721 250 375 702 335 500 800
P, mm 19 19 19 24 24 24 34 34 34
Q, mm 13 13 13 19 19 19 26 26 26
R, mm 125 125 125 170 170 170 135 135 135
S, mm 4 6 6 8 8 8 12 12 12
α 1, ° 130 130 130 145 145 145 153 153 153
α 2, ° 110 110 110 125 125 125 136 136 136
α 3, ° 40 40 40 50 50 50 64 64 64
β 1, ° 150 150 150 155 155 155 147 147 147
β 2, ° 90 90 90 100 100 100 107 107 107
β 3, ° 80 80 80 83 83 83 83 83 83

Wire ropes

Wire rope acc. to DIN 3069-SE - 1770 N/mm², the steel rope comes cpl. with taper and hook Rope diameter Ø4 mm Rope dia Ø6 mm Rope diameter Ø8 mm Rope diameter Ø12 mm
for RPE 2-13 for RPE 5-6 5-12 for RPE 10-6… for RPE 20-6…
Article no. Article no. Article no. Article no.
Rope length 5 m 192024852 192024881 192024914 192046048
Rope length 10 m 192025082 192024887 192024915 192046049
Rope length 15 m 192025083 192024888 192024916 192046052
Rope length 20 m 192025084 192024889 192024917 192046054
Rope length 25 m 192025087 192024890 192024919 192046055
Rope length 30 m 192025089 192024893 192024920 192046057
Rope length 35 m 192025090 192024896 192024921 192046058
Rope length 40 m 192025091 192024899 192024924 192046059
Rope length 45 m 192025093 192024900 192024925 192046062
Rope length 50 m 192025094 192024901 192024927 192046064
Rope length 55 m 192025095 192024902 192024928 192046065
Rope length 60 m 192025096 192024903 192024929 192046066
Rope length 65 m 192025097 192024904 192024930 192046067
Rope length 70 m 192025098 192024905 192024931 192046068
Rope length 75 m 192025099 192024907 192024932 192046070
Rope length 80 m 192025100 192024908 192024933 192046071
Rope length 85 m 192025101 192024909 192024934 192046072
Rope length 90 m 192025102 192024910 192024935 192046073
Rope length 95 m 192025103 192024911 192024936 192046074
Rope length 100 m 192025104 192024912 192024937 192046075
