CAMLOK 92 SERIES VERTICAL PLATE CLAMPS WITH LINK & CHAIN - 500 KG TO 3,000 KG
Key Features
- These clamps are primarily used for transporting sheet metal and steel plates in the vertical position, as well as lifting and rotating through 180 degrees.
- The range offers lifting capacities from 50 kg to 3000 kg
- The jaw is opened and closed with the locking lever except for the 92-500 which uses a positive spring-loaded cam. The safety lock spring loads the cam jaw, preventing the clamp from opening even when there is no load.
- Jaw capacity range for 0 - 32 mm plate thickness
- These plate clamps are service-friendly, making it easy to exchange parts, which are readily available.

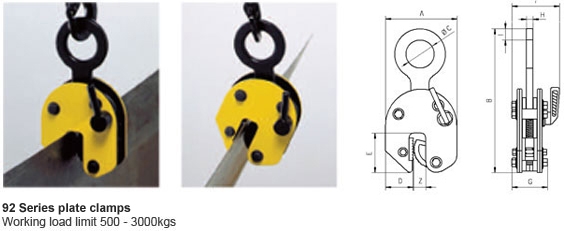

CAMLOK 92 SERIES VERTICAL PLATE CLAMPS WITH LINK & CHAIN - 500 KG TO 3,000 KG
Standard plate clamps with safety lock
Working load limit (WLL) 500 - 3000kgs
These clamps are primarily used for transporting sheet metal and steel plates in the vertical position, as well as lifting and rotating through 1800.
They can also be used for transporting steel constructions and profiles.
It is recommended to use a pair of plate clamps in conjunction with a spreader beam for long materials which have a tendency to sag or flex.
Function
The jaw is opened and closed with the locking lever except for the 92-500 which uses a positive spring-loaded cam.
The safety lock spring loads the cam jaw, preventing the clamp from opening even when there is no load.
Workmanship and parts
These plate clamps are service-friendly, making it easy to exchange parts, which are readily available. Clamp repairs are available through the factory, or can be done by a competent person.
The 92-500 is equipped with positive spring-loaded cam but comes without locking lever.
NB: The plate surface of the material must have a hardness level below HRC 30/Brinell 300.
| Model | WLL kg* |
Jaw (Z) capacity mm |
A mm |
B mm |
C mm |
D mm |
E mm |
F mm |
G mm |
H mm |
I mm |
Weight kg** |
| 92-500 | 50 - 500 | 0 - 16 | 99 | 195 | 29 | 33 | 47 | 50 | 48 | 11 | 15 | 1.5 |
| 92-1500 | 100 - 1500 | 0 - 20 | 126 | 225 | 50 | 49 | 70 | 82 | 55 | 13 | 20 | 3.0 |
| 92-2000 | 200 - 2000 | 0 - 32 | 192 | 312 | 80 | 75 | 96 | 100 | 81 | 20 | 24 | 8.0 |
| 92-3000 | 300 - 3000 | 0 - 32 | 192 | 320 | 80 | 75 | 96 | 100 | 81 | 30 | 30 | 12.0 |
PLEASE NOTE: Units are supplied as standard with a hook ring. Link fitting and chain are available on request as a special order. *Per clamp. **Weight per clamp with hook ring. ***Standard length of chain = 4-6 links.
