Camlok Board clamp model TPZ - Furniture Industry - By Industry
Camlok Board clamp model TPZ
Key Features
- This product offer lifting capacities from 20 kg to 1500 kg
- Jaw capacities 5 mm to 150 mm
- TPZ board clamps offer an simple and effective way to vertically lift and transport a variety of materials such as wood, MDF, plasterboard, stone, and plastics.
- They can also be used to lift loads from the horizontal to the vertical through 90 degrees for transportation
- Each clamp is supplied fitted with large rubber pads to minimise damage.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions

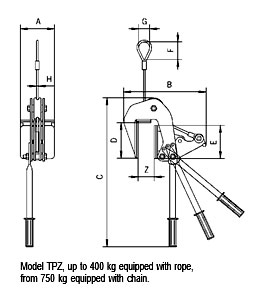

Board clamp model TPZ
Capacity 400 - 1500 kg
TPZ board clamps offer a simple and effective way to vertically lift and transport a variety of materials such as wood, MDF, plasterboard, stone, and plastics.
They can also be used to lift loads from the horizontal to the vertical through 90 degrees for transportation. The range has been designed to be user friendly and the handle enables the operator to guide the load easily during operation and each clamp is supplied fitted with large rubber pads to minimise damage.
These clamps are ideal for production facilities and especially on construction and building sites.
| Model | WLL kg* |
Jaw capacity mm | Weight kg* |
| TPZ 400 | 20 - 400 | 5 - 55 | 8 |
| TPZ 400L | 20 - 400 | 50 - 100 | 9 |
| TPZ 750 | 40 - 750 | 5 - 60 | 12 |
| TPZ 750L | 40 - 750 | 60 - 120 | 14 |
| TPZ 1500 | 75 - 1500 | 5 - 75 | 13 |
| TPZ 1500L | 75 - 1500 | 75 - 150 | 15 |
