CAMLOK CH HORIZONTAL PLATE CLAMPS WITH SMOOTH JAW
Key Features
- This product offers lifting capacities from 1,000 kg to 20,000 kg
- Jaw capacities from 5 mm to 150 mm
- Specifically designed to be used, in pairs, for the transportation of plate bundles as well as single plates with a minimum thickness of 5mm.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
Working load limit (WLL) 1,000 - 20,000kg
Sold in pairs e.g. for 2 clamps enter quantity: 1

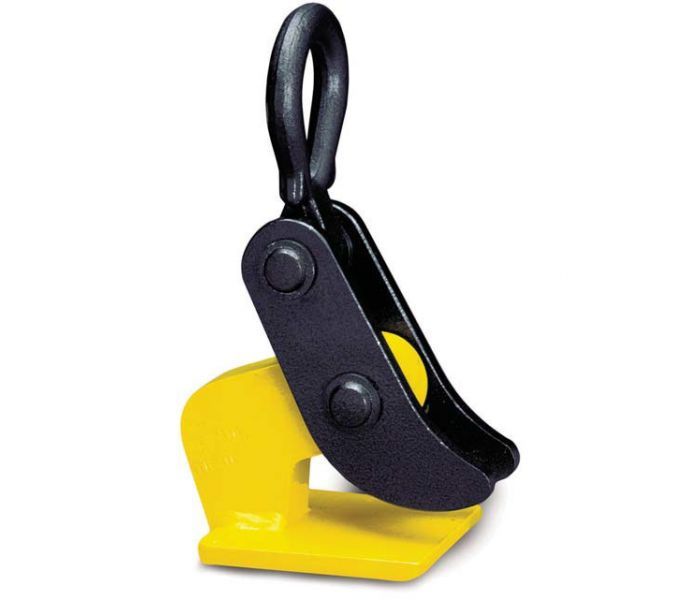

The CH horizontal plate clamps have been specifically designed to be used, in pairs, for the transportation of plate bundles as well as single plates with a minimum thickness of 5mm.

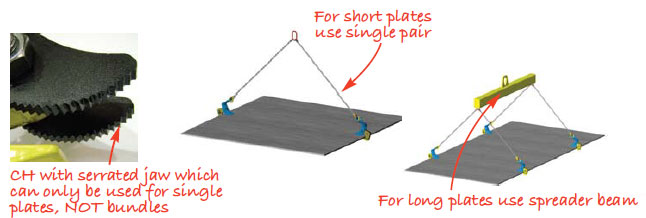

A pair of clamps used with a two-legged chain sling is suitable for small plates. It is recommended to use two pairs in conjunction with a spreader beam for handling of larger plates, These units are supplied as standard with a smooth jaw. There is also the option of hardened steel teeth for special applications. Please contact our technical department for further details.
! Must not be used with endless chain slings
 |
||||||||||

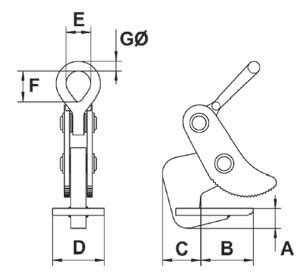

| Model | WLL kg* |
Jaw capacity mm |
A mm |
B mm |
C mm |
D mm |
E mm |
F mm |
G mm |
Weight kg** |
| CH1*** | 1000 | 5 - 32 | 15 | 82 | 60 | 100 | 32 | 44 | 13 | 8 |
| CH2 | 2000 | 5 - 32 | 30 | 82 | 60 | 100 | 50 | 73 | 18 | 11 |
| CH2L | 2000 | 20 - 50 | 30 | 82 | 60 | 100 | 50 | 73 | 18 | 12 |
| CH4 | 4000 | 5 - 50 | 40 | 112 | 80 | 100 | 64 | 92 | 25 | 17 |
| CH4L | 4000 | 50 - 100 | 40 | 112 | 80 | 100 | 64 | 92 | 25 | 23 |
| CH6 | 6000 | 5 - 75 | 55 | 172 | 100 | 130 | 90 | 130 | 35 | 46 |
| CH6L | 6000 | 50 - 125 | 55 | 172 | 100 | 130 | 90 | 130 | 35 | 56 |
| CH8 | 8000 | 5 - 75 | 55 | 172 | 105 | 130 | 90 | 130 | 35 | 53 |
| CH8L | 8000 | 50 - 125 | 55 | 172 | 105 | 130 | 90 | 130 | 35 | 60 |
| CH10 | 10000 | 5 - 100 | 65 | 215 | 120 | 150 | 114 | 114 | 35 | 95 |
| CH10L | 10000 | 50 - 150 | 65 | 215 | 120 | 150 | 114 | 114 | 35 | 108 |
| CH15 | 15000 | 5 - 100 | 71 | 230 | 120 | 150 | 114 | 114 | 35 | 110 |
| CH15L | 15000 | 50 - 150 | 71 | 230 | 120 | 150 | 114 | 114 | 35 | 123 |
| CH20 | 20000 | 5 - 100 | 70 | 220 | 118 | 220 | 80 | 120 | 38 | 165 |
| CH20L | 20000 | 50 - 150 | 70 | 220 | 118 | 220 | 80 | 120 | 38 | 172 |
Workmanship and parts
These plate clamps are service-friendly, making it easy to exchange parts, which are readily available. Clamp repairs are available through the factory or can be done by a competent person.
Repairs and Spare parts are available - please contact us
