Camlok CLT and CLB Container Lifting Lugs 32t to 56t WLL - Camlok Lifting Clamps - By Brand
Camlok CLT and CLB Container Lifting Lugs 32t to 56t WLL
Key Features
- CLT for top lifting and CLB for side lifting
- These container lifting lugs are supplied, and used, in sets of 4 and have a total lifting capacity of up to 56 tonnes.
- The CLT and CLB lugs serve as flexible lashing points for the transportation of containers.
- Two types are available dependant on if you want to fasten them to the top or the side of the container
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
CLT for top lifting and CLB for side lifting
Working load limit* (WLL) 32000 - 56000kg
These container lifting lugs are supplied, and used, in sets of 4 and have a total lifting capacity of up to 56 tonnes. The CLT and CLB lugs serve as flexible lashing points for the transportation of containers.
Two types are available dependant on if you want to fasten them to the top or the side of the container:

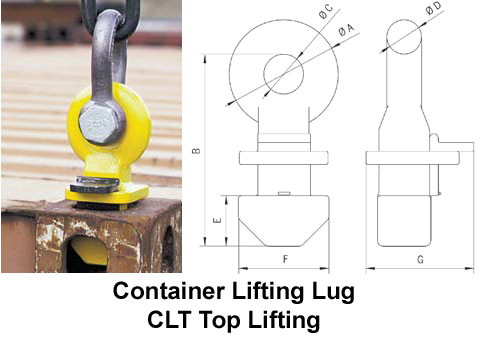

The CLT type is vertically mounted in the hole at the top of the container and is locked into place by simply turning the lug 900. This configuration allows for transportation via the use of a lifting frame in conjunction with cables, chains or slings.
The CLB model is mounted horizontally to the side of the container at either the top or the bottom fixing holes. This model has a spring loaded bolt to prevent accidental release.
NB. NOT TO BE USED ON A 4 LEG CHAIN SLING. Click here to view our Container Lifting Spreader Set
 |
 |
||||||||||
| Model | WLL kg* |
Type of lifting | Sling angle from vertical | A mm |
B mm |
C mm |
D mm |
E mm |
F mm |
G mm |
Weight kg* |
| CLB |
32,000 | SIDE | 50 degree |
152 |
181 |
45 |
37 |
73 |
75 |
40 |
18 |
| 40,000 | 36 degrees | ||||||||||
| 50,000 | Vertical | ||||||||||
| CLT |
56000 |
TOP |
Vertical |
123 |
217 |
45 |
39 |
57 |
101 |
121 |
28 |
*Per set of 4.
