CAMLOK TSB NON-MARKING " FRICTION" PLATE CLAMPS - Camlok Lifting Clamps - By Brand
CAMLOK TSB NON-MARKING " FRICTION" PLATE CLAMPS
Key Features
- 20 to 1250 kg lifting range - 0 - 65 mm jaw capacity
- TSB plate clamp is non-marking. It works through the process of `friction'. This is achieved by a special material on the jaw and pad which is similar to brake linings.
- TSB, is that one grab can be used for lifting different materials such as concrete, wood, stone, and hardened steel.
- hese plate clamps are service-friendly, making it easy to exchange parts, which are readily available. Clamp repairs are available through the factory, or can be done by a competent person.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
TSB NON-MARKING " FRICTION" PLATE CLAMPS

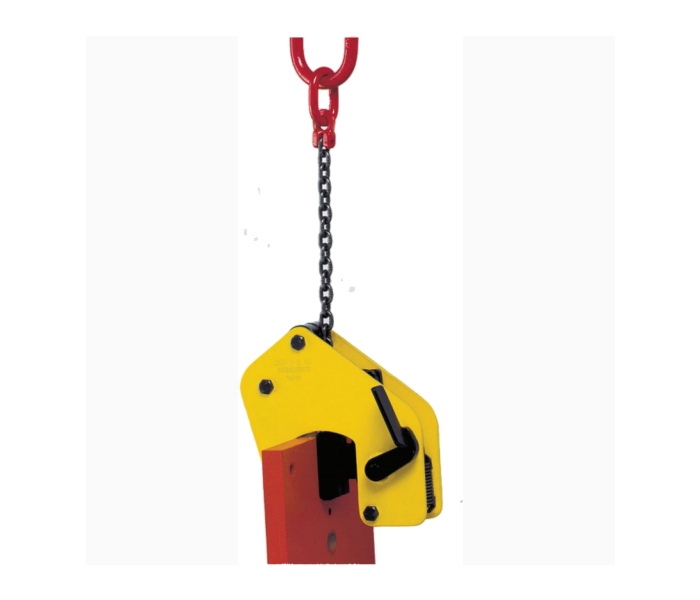

The TSB non-marking plate clamps with chain are designed for vertical lifting and transporting of plate material. This particular range of clamps has a large jaw capacity that enables it to be used on a multitude of applications.
The main feature of the TSB plate clamps is the fact that it is non-marking. It works through the process of `friction'. This is achieved by a special material on the jaw and pad which is similar to brake linings.
Another benefit of the TSB, is that one grab can be used for lifting different materials such as concrete, wood, stone, and hardened steel.
These plate clamps are service-friendly, making it easy to exchange parts, which are readily available. Clamp repairs are available through the factory, or can be done by a competent person.
NB: The surface of the material being gripped must be free of oil, grease or any other liquid to ensure safe transport.

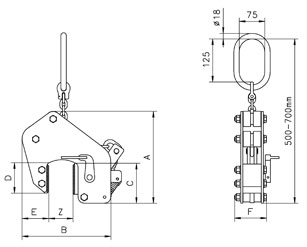

| Model | WLL kg* |
Jaw capacity mm | A mm |
B mm |
C mm |
D mm |
E mm |
F mm |
Weight kg* |
| TSB 750/65 | 40 - 750 | 0 - 65 | 270 | 260 | 128 | 100 | 65 | 78 | 9 |
| TSB 1250/65 | 125 - 1250 | 0 - 65 | 270 | 260 | 128 | 100 | 65 | 78 | 12 |
*Per clamp.
