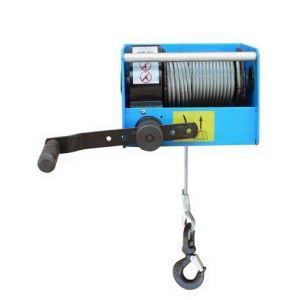

CaRol TR Manual Hand Winches 150-2000kgs
Key Features
- Available in 5 capacities 250, 500, 1000, 1500, and 2000 kg
- Automatic pawl brake with double spring.
- Drum disengageable by easily accessible lever with safety device preventing disengagement when carrying a load.
- Variable-length control cCrank handle (6 adjustment positions) allowing user to either apply maximum control force, or perform rapid cranking for small loads or rewinding.
- The TR winch can be mounted in multiple positions on a horizontal or vertical mounting plane.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
|
Model
|
CAROL TR 150
|
CAROL TR 300
|
CAROL TR 500
|
CAROL TR 1000
|
CAROL TR 2000
|
|
Capacity (kg)
|
150kg
|
300kg
|
500kg
|
1000kg
|
2000kg
|
|
Wire rope diameter (mm)
|
4
|
5
|
8
|
9
|
13
|
|
Max. length wire rope (m)
|
22
|
40
|
20
|
35
|
30
|
|
Weight (kg)
|
8
|
16
|
16
|
38
|
60
|
Features :
- Complies with machinery directive 98/37/CE.
- Winch satisfies all rupture and endurance test requirements per standard EN13157 :12/2004.
- Automatic pawl brake with double spring.
- Rigid tubular frame with painted mechanical parts and drum.
- Drum disengageable by easily accessible lever with safety device preventing disengagement when carrying a load.
- Users and gears protected by ergonomic cover, removable for maintenance.
- Simple, fast cable fastener.
- Variable-length control crank handle (6 adjustment positions) allowing user to either apply maximum control force, or perform rapid cranking for small loads or rewinding.
- Self-locking crank handle adjustment knob for maximum user comfort and safety. Allows adjusting crank handle or removing it to prevent operation of winch.
- The TR winch can be mounted in multiple positions on a horizontal or vertical mounting plane.
- Easily transportable by cross bar.
Winch ropes sold separately available online or contact us
