CAST IRON WIRE ROPE PULLEYS WITH BEARING AND FIXING BOLT ( ETT-74 ) - 200 to 1000 kg CAPACITY - Wire Rope Pulleys, Divertor & Snatch Blocks - Lifting, Hoisting and Winching

In stock
Only %1 left
SKU
11824

CAST IRON WIRE ROPE PULLEYS WITH BEARING AND FIXING BOLT ( ETT-74 ) - 200 to 1000 kg CAPACITY

From £39.60 £33.00
In stock
Quantity
Delivery Options

Delivery Information

Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.

Returns Policy

Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.

Non-standard (Quote only, pre-order or custom-made products)

Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.

For more information see https://www.dlhonline.co.uk/terms-conditions

ETT-74 PULLEY - FOR WIRE ROPE

  • With bearing and xing bolt
  • Material - galvanized cast iron

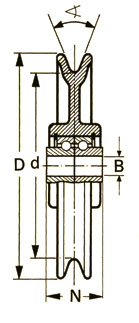

    ETT-74 PULLEY diagram

Product code     ETT-74- 70 ETT-74- 100 ETT-74- 120 ETT-74- 150 ETT-74- 180 ETT-74- 210 ETT-74- 240 ETT-74- 300
Diameter of pulley D mm 70 100 120 150 180 210 240 300
Load capacity   kg 200 300 400 500 500 800 800 1000
Max eet angle eet angle ° 40 40 40 40 40 40 30 30
Rope diameter Ř mm 3 4 5 6,5 8 9 10 12
Width N mm 26 30 30 34 34 38 38 38
Fixing bolt   mm 8x45 10x55 12x60 14x65 14x65 16x70 16x70 16x70
  d mm 56 83 100 130 160 185 206 265
Bore B mm 8,2 10,2 12,2 14,2 14,2 16,5 16,5 16,5
Number bearings     2 2 2 2 2 2 2 2
Weight per item   kg 0,37 0,6 0,9 1,6 2,0 3,4 4,0 6,5


Please note: Due to demand, delivery times for some of our pulleys have become particularly extended. In order to avoid disappointment through late delivery - Please contact our sales team for current despatch dates, prior to ordering.
