CROSBY G209 - SCREW PIN ANCHOR ( BOW ) SHACKLES
Key Features
- Capacities 1/3 thru 55 metric tons, grade 6.
- Forged - Quenched and Tempered, with alloy pins.
- Working Load Limit and grade “6” permanently shown on every shackle.
- Hot Dip galvanized
- Sizes 1/2t-25t meet the performance requirements of EN13889:2003.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
CROSBY G209 - SCREW PIN ANCHOR ( BOW ) SHACKLES
- Capacities 1/3 thru 55 metric tons, grade 6.
- Forged - Quenched and Tempered, with alloy pins.
- Working Load Limit and grade “6” permanently shown on every shackle.
- Hot Dip galvanized
- Fatigue rated.
- Shackles 25t and larger are RFID EQUIPPED.
- Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or other certification. Charges for proof testing and certification available when requested at the time of order.
- Approved for use at -40 degree C (-40 degree F) to 204 degree C (400 degree F).
- Shackles are Quenched and Tempered and can meet DNV impact requirements of 42 joules (31 ft. Ibs.) at -20 degree C (-4 degree F).
- Sizes 1/2t-25t meet the performance requirements of EN13889:2003.
- Meets or exceeds all requirements of ASME B30.26.
- Type Approval and certification in accordance with ABS 2006 Steel Vessel Rules 1-1-17.7, and ABS Guide for Certification of Cranes.
- Crosby has Type Approved to provide 2t through 25t 209 anchor shackles that meet the requirements of DNV Certification Notes 2.7-1 - Offshore Containers. These Crosby shackles (met by our current standardproducts) are: statistical proof test of 1% to 3%, based on lot size is required. Impact test of shackle bow and pin are provided. The tests are conducted by Crosby and we provide a 3.1 test certificate upon request, with test results.
- Look for the Red Pin® . . . the mark of genuine Crosby quality.
| NominalSize (in.) | Working Load Limit(t)* |
Stock No. |
WeightEach (kg) |

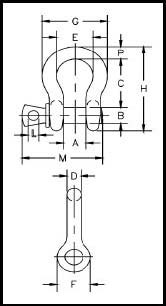

Dimensions (mm) |
Tolerance + / - |
|||||||||||
| G-209 |
A |
B |
C |
D |
E |
F |
G |
H |
L |
M |
P |
C |
A |
|||
| 3/16 | 1/3 | 1018357 | .03 | 9.65 | 6.35 | 22.4 | 4.85 | 15.2 | 14.2 | 24.9 | 37.3 | 4.06 | 28.4 | 4.85 | 1.50 | 1.50 |
| 1/4 | 1/2 | 1018375 | .05 | 11.9 | 7.85 | 28.7 | 6.35 | 19.8 | 15.5 | 32.5 | 46.7 | 4.85 | 35.1 | 6.35 | 1.50 | 1.50 |
| 5/16 | 3/4 | 1018393 | .09 | 13.5 | 9.65 | 31.0 | 7.85 | 21.3 | 19.1 | 37.3 | 53.0 | 5.60 | 42.2 | 7.85 | 3.30 | 1.50 |
| 3/8 | 1 | 1018419 | .14 | 16.8 | 11.2 | 36.6 | 9.65 | 26.2 | 23.1 | 45.2 | 63.0 | 6.35 | 51.5 | 9.65 | 3.30 | 1.50 |
| 7/16 | 1-1/2 | 1018437 | .17 | 19.1 | 12.7 | 42.9 | 11.2 | 29.5 | 26.9 | 51.5 | 74.0 | 7.85 | 60.5 | 11.2 | 3.30 | 1.50 |
| 1/2 | 2 | 1018455 | .33 | 20.6 | 16.0 | 47.8 | 12.7 | 33.3 | 30.2 | 58.5 | 83.5 | 9.65 | 68.5 | 12.7 | 3.30 | 1.50 |
| 5/8 | 3-1/4 | 1018473 | .62 | 26.9 | 19.1 | 60.5 | 16.0 | 42.9 | 38.1 | 74.5 | 106 | 11.2 | 85.0 | 17.5 | 6.35 | 1.50 |
| 3/4 | 4-3/4 | 1018491 | 1.07 | 31.8 | 22.4 | 71.5 | 19.1 | 51.0 | 46.0 | 89.0 | 126 | 12.7 | 101 | 20.6 | 6.35 | 1.50 |
| 7/8 | 6-1/2 | 1018516 | 1.64 | 36.6 | 25.4 | 84.0 | 22.4 | 58.0 | 53.0 | 102 | 148 | 12.7 | 114 | 24.6 | 6.35 | 1.50 |
| 1 | 8-1/2 | 1018534 | 2.28 | 42.9 | 28.7 | 95.5 | 25.4 | 68.5 | 60.5 | 119 | 167 | 14.2 | 129 | 26.9 | 6.35 | 1.50 |
| 1-1/8 | 9-1/2 | 1018552 | 3.36 | 46.0 | 31.8 | 108 | 29.5 | 74.0 | 68.5 | 131 | 190 | 16.0 | 142 | 31.8 | 6.35 | 1.50 |
| 1-1/4 | 12 | 1018570 | 4.31 | 51.5 | 35.1 | 119 | 32.8 | 82.5 | 76.0 | 146 | 210 | 17.5 | 156 | 35.1 | 6.35 | 1.50 |
| 1-3/8 | 13-1/2 | 1018598 | 6.14 | 57.0 | 38.1 | 133 | 36.1 | 92.0 | 84.0 | 162 | 233 | 19.1 | 174 | 38.1 | 6.35 | 3.30 |
| 1-1/2 | 17 | 1018614 | 7.80 | 60.5 | 41.4 | 146 | 39.1 | 98.5 | 92.0 | 175 | 254 | 20.6 | 187 | 41.1 | 6.35 | 3.30 |
| 1-3/4 | 25 | 1018632 | 12.6 | 73.0 | 51.0 | 178 | 46.7 | 127 | 106 | 225 | 313 | 25.4 | 231 | 57.0 | 6.35 | 3.30 |
| 2 | 35 | 1018650 | 20.4 | 82.5 | 57.0 | 197 | 53.0 | 146 | 122 | 253 | 348 | 31.0 | 263 | 61.0 | 6.35 | 3.30 |
| 2-1/2 | 55 | 1018678 | 38.9 | 105 | 70.0 | 267 | 69.0 | 184 | 145 | 327 | 453 | 35.1 | 330 | 79.5 | 6.35 | 6.35 |
