CROSBY HR125M - SWIVEL HOIST RING - METRIC - Crosby - By Brand

In stock
Only %1 left
SKU
HR125M

CROSBY HR125M - SWIVEL HOIST RING - METRIC

From £185.76 £154.80
In stock
Quantity

Key Features

  • Available in metric thread sizes. M8 to M48
  • Metric threads available in sizes from 400kg to 16,900kg and dual rated in both a 4 to 1 and 5 to 1 design factor.
  • All Components are Alloy Steel - Quenched and Tempered
  • Rated at 100% at 90° angle.
  • 100% individually proof tested to 2-1/2 times the Working Load Limit with certification and Statistically Magnetic Particle inspected.
Delivery Options

Delivery Information

Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.

Returns Policy

Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.

Non-standard (Quote only, pre-order or custom-made products)

Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.

For more information see https://www.dlhonline.co.uk/terms-conditions

CROSBY HR125M - SWIVEL HOIST RING - METRIC

  • Available in metric thread sizes.
  • Metric threads available in sizes from 400kg to 16,900kg and dual rated in both a 4 to 1 and 5 to 1 design factor.
  • All Components are Alloy Steel - Quenched and Tempered
  • Rated at 100% at 90° angle.• 100% individually proof tested to 2-1/2 times the Working Load Limit with certification and Statistically Magnetic Particle inspected. (Can be furnished 100% Magnetic Particle inspected when requested at time of order)
  • Each product has a Product Identification Code (PIC) for material traceability along with a Working Load Limit and the name Crosby or “CG” stamped into it.• Meets or exceeds all the requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these hoist rings meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.• 360° swivel and 180° pivot action
  • Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit
  • Individually packaged along with proper application instructions and warning information
  • Bolt is secured with E-clip, threads are grooved. This method allows for easy disassembly and assembly of hoist ring for thorough examination of all components. Replacement kits are available.• Bolts are individually Proof Tested.• Multiple Bolt length available to meet specific application requirements
  • Zinc Plated (Yellow Chromate) finish for increased corrosion protection thru 30,000 pounds size.

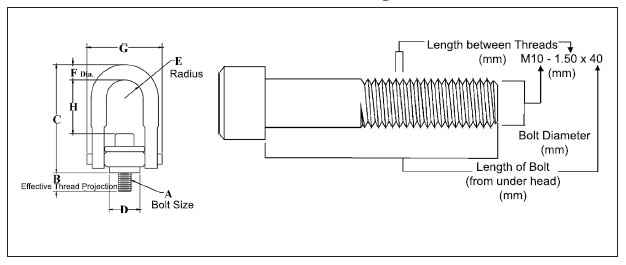

Crosby HR125M diagram



  HR-125M
Stock No.
Working
Load Limit (kg)


 Torque in Nm*

Dimensions (mm)


 Weight Each (kg)
At a
5:1
Design Factor †
At a
4:1
Design Factor †


Bolt Size
(A) †
Effective
Thread Length (B)


C


D


Radius E


Diameter F


G


H
1016602 400 500 10 M8X 1.25 X 40 16.9 68.1 25.4 11.8 8.5 42.9 28.2 .19
1016613 450 550 16 M10 X 1.50 X 40 16.9 68.1 25.4 11.8 8.5 42.9 27.69 .19
1016624 1050 1300 38 M12 X 1.75 X 50 17.2 124.5 50.8 22.3 17.5 82.7 58.17 1.13
1016635 1900 2400 81 M16 X 2.00 X 60 27.2 124.5 50.8 22.3 17.5 82.7 56.13 1.22
1016644 2150 2700 136 M20 X 2.50 X 65 31.2 124.5 50.8 22.3 17.5 82.7 52.07 1.36
1016657 3000 3750 136 M20 X 2.50 X 75 28.1 167.0 76.2 34.7 25.4 120.1 75.69 3.18
1016668 4200 5250 312 M24 X 3.00 X 80 33.1 167.0 76.2 34.7 25.4 120.1 74.93 3.18
1016679 7000 8750 637 M30 X 3.50 X 120 65.1 220.0 95.3 44.5 30.5 152.4 102.0 6.70
1016690 11000 13750 1005 M36 X 4.00 X 150 60.6 315.3 120.7 57.2 44.5 203.2 124.2 14.95
1016701 12500 15600 1005 M42 X 4.50 X 160 70.6 315.3 120.7 57.2 44.5 203.2 150.6 16.33
1016712 13500 16900 1350 M48 X 5.00 X 160 70.6 315.3 120.7 57.2 44.5 203.2 137.9 16.33


*The tightening torque values shown are based upon threads being clean, dry and free of lubrication.
† Individually proof loaded to 2-1/2 times the Working Load Limit based on the 4:1 design factor.
‡ Bolt specification is a Grade 12.9 Alloy socket head cap screw to Din 912. All threads are metric (ASME/ANSI B18.3.1m).

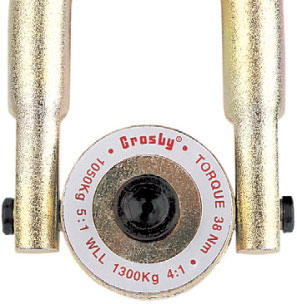

Crosby HR125M washer

Top washer has the following features:

  • The Working Load Limit and Recommended Torque value are permanently stamped into each washer.
  • Washer is color coded for easy identification: Silver - Metric thread.• Individually Proof Tested to 2-1/2 times Working Load Limit.• Bolt specification is a Grade 12.9
  • Alloy socket head cap screw to Din 912. All threads listed aremetric (ASME/ANSI B18.3.1m)
  • Designed to be used with ferrous work piece only
  • BOLT SIZE IDENTIFICATION: The size of the bolt will be stated as in the drawing above. Illustration shows meaning of each dimension given.
  • NOTE: For Special Applications, see page 456.• Frame 2 and larger RFID EQUIPPED.
