CROSBY IP10/S VERTICAL PLATE LIFTING CLAMP (For use with Stainless Steel material).
Key Features
- For vertical Lifting, Turning and Transfer - For use with Stainless Steel material.
- Available in capacities of 0,5 thru 12 metric tonnes
- Wide variety of jaw openings available: 0 to 54 mm
- Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
CROSBY IP10/S LIFTING CLAMP
The IP10 vertical lifting clamp is used for the lifting, turning, moving or vertical transfer of sheet, plates, or fabrications from horizontal to vertical and down to horizontal (180°) as needed. Usually used as a single point pick or when used with a spreader beam with multiple vertical drop lines.
For use with Stainless Steel material.
For vertical Lifting, Turning and Transfer
- Available in capacities of .5 thru 30 metric tons (Higher Working Load Limits are available upon request).
- Wide variety of jaw openings available: 0 to 155mm.
- Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
- Individually Proof Tested to 2 times the Working Load Limit with certification.
- Company name (CrosbyIP), logo, Working Load Limit and jaw opening permanently stamped on body.
- Each product is individually serialized, with the serial number and Proof Load test date stamped on
body. Serial number is included on the test certificate with maintenance and warranty logbook.
- Available in a variety of styles:
- IP10 - Standard clamp for materials with a surface hardness to 37Rc (345 HB).
- IP10J - Larger jaw opening.
- IP10S - For use with Stainless Steel material.
- IP10H - For use with materials with a surface hardness to 47Rc (450 HB).
- Full 180° turning range for material transfer, turning or moving.
- Lock open, lock closed ability with latch for pretension on material and then release of material.
- Optional IP-5000 Stinger assembly available (see page 402). Allows for easy connection between the clamp and hoist hook.
- Minimum WLL of 10% of Maximum WLL.
- Maintenance replacement kits are available.
- Manufactured by a ISO 9001 facility.
- All sizes are RFID EQUIPPED
|
|
 |
|

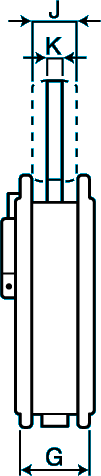

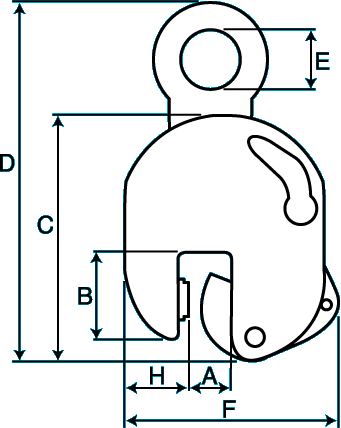

model |
stock no |
WLL Each (t)* |
Weight Each (kg.) |
Jaw A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
|
0,5 IP10S |
2702274 |
0,5 |
1,8 |
0-16 |
44 |
128 |
207 |
30 |
115 |
41 |
28 |
- |
10 |
|
1 IP10S |
2702262 |
1,0 |
2,0 |
0-20 |
45 |
139 |
215 |
30 |
126 |
41 |
38 |
- |
10 |
|
2 IP10S |
2702276 |
2,0 |
6,8 |
0-35 |
78 |
201 |
336 |
70 |
190 |
61 |
55 |
- |
16 |
|
3 IP10S |
2702264 |
3,0 |
13,8 |
0-40 |
100 |
253 |
436 |
75 |
225 |
78 |
60 |
- |
20 |
|
4,5 IP10S |
2702266 |
4,5 |
15,0 |
0-40 |
100 |
253 |
436 |
75 |
232 |
82 |
65 |
- |
20 |
|
6 IP10S |
2702268 |
6,0 |
23,5 |
0-50 |
126 |
302 |
525 |
80 |
292 |
84 |
95 |
40 |
20 |
|
9 IP10S |
2702270 |
9,0 |
27,5 |
0-50 |
126 |
325 |
557 |
80 |
310 |
92 |
105 |
44 |
25 |
|
12 IP10S |
2702278 |
12,0 |
49,0 |
0-54 |
160 |
391 |
623 |
80 |
331 |
117 |
137 |
41 |
25 |
