CROSBY IPBSNZ LIFTING CLAMP (For Horizontal Transfer and Stacking Steel Beams) - Crosby - By Brand
CROSBY IPBSNZ LIFTING CLAMP (For Horizontal Transfer and Stacking Steel Beams)
Key Features
- Lifting clamp IPBSNZ is suitable for: Lifting, transfer and stacking of steel beams.
- Lifting, mounting and transfer of steel constructions or as an auxiliary tool for assembling ship sections.
- Capacities 1.5 t and 3 t
- Jaw range 0 - 40 mm
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
CROSBY IPBSNZ LIFTING CLAMP
Crosby IP Horizontal Transfer and Stacking Clamp.
Lifting clamp IPBSNZ is suitable for:
- Lifting, transfer and stacking of steel beams.
- Lifting, mounting and transfer of steel constructions.
- As an auxiliary tool for assembling shipsections.
- The IPBSNZ lifting clamp is fitted with a locking device for both open and closed positions, which ensures complete reliability.
- The IPBSNZ lifting clamp lifts the material in such a manner that the flanges of the beam hang exactly horizontal, regardless of the width of the flanges.

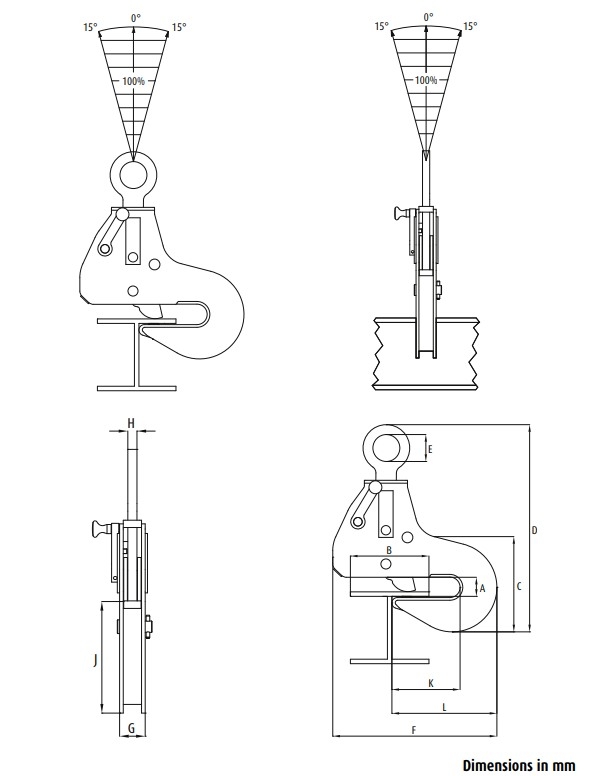

- For correct use of the clamp, please consult fig. 2 & 3.
- Higher WLL and different jaw-apertures upon request.
Dimensions are in milimeters.
| Options | WLL per pce (tonnes) | Jaw (mm) - A | B | C | D | E | F | G | H | J | K | Weight per pce (kg) |
| 2705925 | 1.5 | 0.32 | 100-270 | 304 | 480 | 70 | 319 | 47 | 16 | 165 | 148 | 14.0 |
| 2705926 | 3.0 | 0.40 | 100-330 | 352 | 494 | 75 | 408 | 56 | 20 | 207 | 182 | 22.0 |
