CROSBY IPH10 AND IPH10/J HORIZONTAL PRETENSION PLATE LIFTING CLAMP
Key Features
- The IPH10 horizontal lifting clamps with spring loaded tension have a pretension feature that allows the user to attach the clamps to the material for horizontal lifting and transfer of non-sagging material
- Available in capacities of .5 thru 12 metric tonnes
- Jaw openings available: 0 to 120 mm.
- Welded alloy steel body for strength and smaller size.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
CROSBY IPH10/J LIFTING CLAMP
The IPH10 horizontal lifting clamps with spring loaded tension have a pretension feature that allows the user to attach the clamps to the material for horizontal lifting and transfer of non-sagging material. These clamps must be used in pairs or more.
For Horizontal Lift and Transfer - with Pretension System
- Available in capacities of .5 thru 12 metric tonnes• Jaw openings available: 0 to 120mm
- Welded alloy steel body for strength and smaller size. Forged alloy components, where required
- Individually Proof Tested to 2 times the Working Load Limit with certification.
- Company name (CrosbyIP), logo, Working Load Limit and jaw opening permanently stamped on body.
- Each product is individually serialized, with the serial number and Proof Load test date stamped on body. Serial number is included on the test certificate with maintenance and warranty logbook.• Maintenance replacement parts are available.
- Manufactured by a ISO 9001 facility.
- All sizes are RFID EQUIPPED
| Model |
Working Load Limit (Per Pair) (t)* | IPH10 Stock No. |
Weight Each (kg.) |

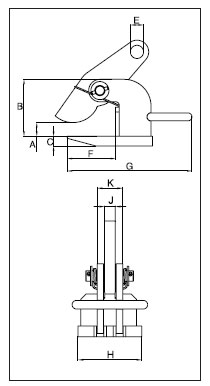

Dimensions (mm) | ||||||||
| Jaw A |
B |
C |
E |
F |
G |
H |
J |
K |
||||
| IPH10 | 0.5+ | 2703297 | 1.8 | 0 - 20 | 86 | 12 | 16 | 103 | 150 | 60 | 12 | 27 |
| IPH10 | 1+ | 2703298 | 2.5 | 0 - 35 | 100 | 16 | 16 | 103 | 150 | 60 | 12 | 31 |
| IPH10 | 2 | 2703522 | 5.5 | 0 - 60 | 117 | 16 | 22 | 109 | 256 | 110 | 20 | 40 |
| IPH10 | 3 | 2703523 | 7.5 | 0 - 60 | 117 | 20 | 26 | 109 | 266 | 120 | 20 | 48 |
| IPH10 | 4.5 | 2703524 | 10.5 | 0 - 60 | 132 | 25 | 30 | 104 | 280 | 130 | 20 | 48 |
| IPH10 | 6 | 2703525 | 13.0 | 0 - 60 | 143 | 25 | 36 | 123 | 320 | 130 | 20 | 48 |
| IPH10 | 9 | 2703526 | 18.5 | 0 - 60 | 157 | 30 | 43 | 133 | 330 | 140 | 25 | 62 |
| IPH10 | 12 | 2703527 | 21.5 | 0 - 60 | 172 | 30 | 47 | 141 | 353 | 150 | 25 | 62 |
| With larger jaw opening | ||||||||||||
| IPH10/J | 3 | 2703533 | 9.0 | 60 - 120 | 177 | 20 | 26 | 109 | 266 | 120 | 20 | 48 |
| IPH10/J | 4.5 | 2703534 | 12.0 | 60 - 120 | 192 | 25 | 30 | 104 | 280 | 130 | 20 | 48 |
| IPH10/J | 6 | 2703535 | 15.0 | 60 - 120 | 203 | 25 | 36 | 123 | 320 | 130 | 20 | 48 |
| IPH10/J | 9 | 2703536 | 20.5 | 60 - 120 | 217 | 30 | 43 | 133 | 330 | 140 | 25 | 62 |
| IPH10/J | 12 | 2703537 | 24.0 | 60 - 120 | 232 | 30 | 47 | 141 | 353 | 150 | 25 | 62 |
* Design Factor based on EN 13155 and ASME B30.20. + No handle or magnets.
