CROSBY IPSTARTEC11 LIFTING CLAMP (For transportation and stacking of steel H beam profiles).
Key Features
- The IP-STARTEC has been especially developed for lifting with the body in vertical position, controlled tilting (see illustrations),
- 1.5 and 2.5 tonnes cpacities
- For transportation and stacking of steel H - and I - profiles.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
CROSBY IPSTARTEC11 LIFTING CLAMP

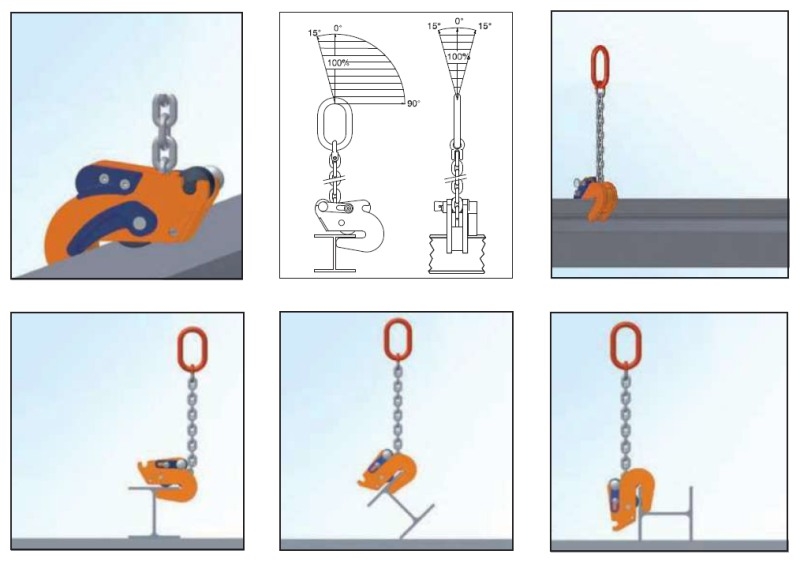

- The IP-STARTEC has been especially developed for lifting with the body in vertical position, controlled tilting (see illustrations), transportation and stacking of steel H - and I - profiles.
- By placing the chain guide in the appropriate position, it is straight forward to switch from lifting to tilting and back again, which shifts the center of gravity.
- Depending on the measurements and weight there is a version with jaw opening of 6 - 12 mm (WLL of 1500 kg) and a version with a jaw opening of 6 - 20 mm (WLL of 2500 kg).
- For correct use of the clamp, please consult fig. 2

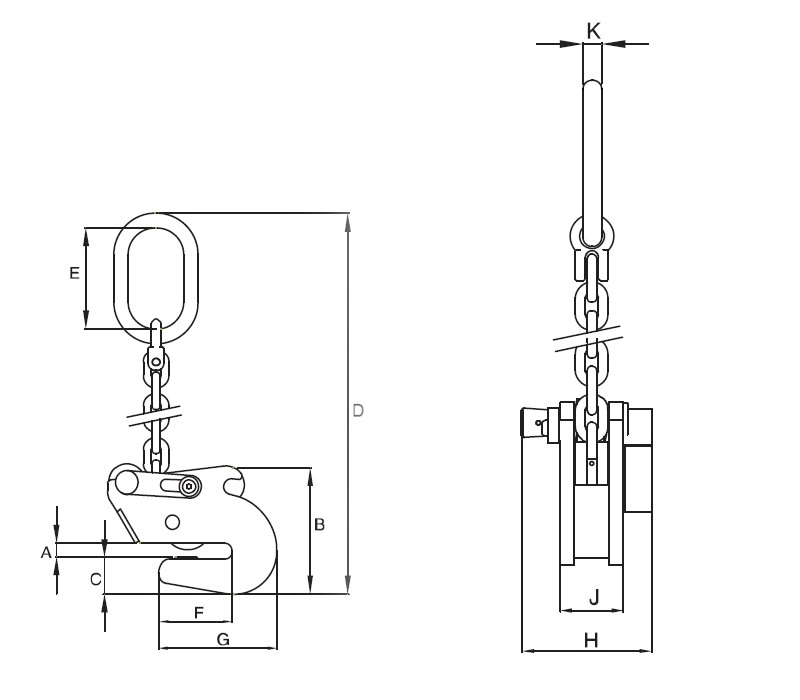

Dimensional Specifications
Dimensions are in milimeters.
Options | WLL per pce (tonnes) | Jaw (mm) A | B | C | D | E | F | G | H | J | K | Weight per pce (kg) |
2701812 | 1.5 | 6-12 | 140 | 39 | 575 | 110 | 81 | 129 | 54 | 126 | 16 | 6.6 |
2701822 | 2.5 | 6-20 | 210 | 55 | 725 | 135 | 115 | 182 | 74 | 140 | 18 | 14. |
