CROSBY IPTK LIFTING CLAMP (For steel beams)
Key Features
- Multi-purpose lifting clamp for steel beams. Suitable for application as a lifting clamp, tackle-eye clamp and as a lashing clamp
- Capacities 2 t to 5 t
- Wide variety of jaw openings available: 75 to 350 mm.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
CROSBY IPTK LIFTING CLAMP
Crosby Screw Lock Beam Clamp.
- Multi-purpose lifting clamp for steel beams.
- IPTK is suitable for application as a lifting clamp, tackle-eye clamp and as a lashing clamp.
- Load carrying capacity up to 15º from the center line of the clamp.
- The IPTK clamp is fitted with a screwed spindle for attachment of the clamp to the beam.
- All other parts and functions of the IPTKW clamp are identical to those of the IPTK beam clamp.
- For correct use of the clamp, please consult loading angles below
- Wide variety of jaw openings available: 75 to 350mm.
- Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
- Individually Proof Tested to 2 times the Working Load Limit with certification.
- Company name (CrosbyIP), logo, Working Load Limit and jaw opening permanently stamped on body.
- Each product is individually serialized, with the serial number and Proof Load test date stamped on body. Serial number is included on the test certificate with maintenance and warranty logbook.
- Maintenance replacement parts are available.
- Manufactured by a ISO 9001 facility.

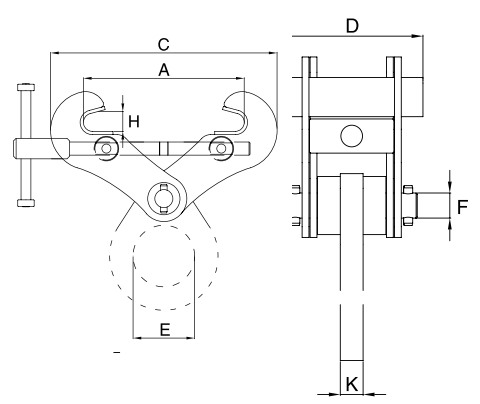

Dimensions and Specifications
ITPK (with hoisting eye)
| Part Number | Model | WLL per pce (tonnes)* | Jaw (mm) - A | C | D | E | H | K | Weight per pce (kg) |
| 2700996 | IPTK2 | 2.0 | 75-190 | A+80 | 125 | 75 | 25 | 20 | 6.0 |
| 2700997 | IPTK3 | 3.0 | 75-190 | A+80 | 125 | 75 | 25 | 20 | 6.5 |
| 2700998 | IPTK4 | 4.0 | 150-280 | A+100 | 125 | 75 | 35 | 20 | 8.5 |
| 2700994 | IPTK5 | 5.0 | 120-350 | A+195 | 125 | 75 | 43 | 20 | 11.0 |
