CROSBY IPTKU LIFTING CLAMP (For Steel Beams) - Crosby - By Brand

In stock
Only %1 left
SKU
IPTKU

CROSBY IPTKU LIFTING CLAMP (For Steel Beams)

From £570.24 £475.20
In stock
Quantity

Key Features

  • The new and improved IPTKU beam clamp is not your "standard" beam clamp. It is the new standard.
  • With an improved hinged hoisting eye that increases the loading angles and an optional new "Double locking Device", the versatility of the new IPTKU beam clamp makes it perfect for use as a temporary tackle eye for a beam, a lashing clamp or as a lifting
  • Range capacities of 2 through 10 metric tonnes.
Delivery Options

Delivery Information

Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.

Returns Policy

Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.

Non-standard (Quote only, pre-order or custom-made products)

Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.

For more information see https://www.dlhonline.co.uk/terms-conditions

CROSBY IPTKU LIFTING CLAMP

The new and improved IPTKU beam clamp is not your "standard" beam clamp. It is the new standard.

With an improved hinged hoisting eye that increases the loading angles and an optional new "Double locking Device", the versatility of the new IPTKU beam clamp makes it perfect for use as a temporary tackle eye for a beam, a lashing clamp or as a lifting clamp.

Available in capacities of 2 through 10 metric tonnes. Higher capacities are available upon request.
Also available: IPTKU/D with double locking device.

Features

  • Larger and hinged hoisting eye.
  • Up to 45° side loading & 15° cross loading *.
  • Hexagon-head handle that allows easy opening and closing with wrench (pneumatic or electrical).
  • Double locking device (Suffix D Optional).
  • All parts of spindle are replaceable.
  • Reduced weight.
  • All sizes are RFID EQUIPPED.

* 100% W.l.l. at 45° cross loading can be achieved, provided that special demands regarding flange thickness and fixation are met.

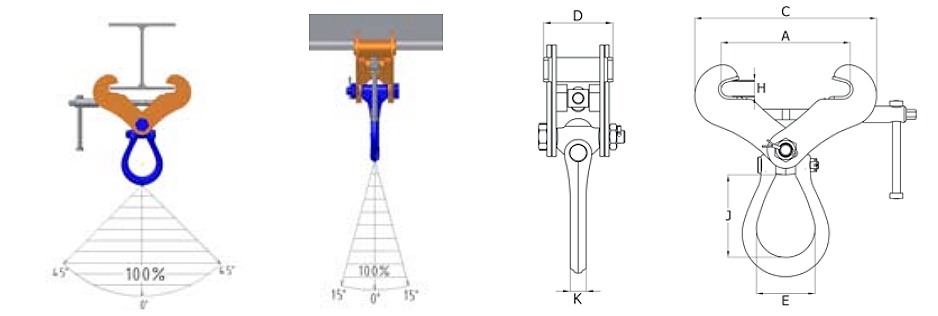

 IPTKU-Key

Part N° WLL Each (tonnes) Model Weight Each (kg) Beam Range (mm) (A) C (mm) D (mm) E (mm) H (mm) J (mm) K (mm)
With single locking device
2707996 2 2 IPTKU 5.8 75-190 A+100 121 76 22 99 19
2707997 3 3 IPTKU 6.5 75-190 A+100 121 89 22 122 22
2707998 4 4 IPTKU 9.9 120-280 A+150 140 89 40 122 22
2707994 5 5 IPTKU 12 120-350 A+175 140 89 40 122 22
2707970 10 10 IPTKU 38 200-460 A+300 200 105 60 152 26
With optional double locking device
2709996 2 2 IPTKU/D 5.8 75-190 A+100 165 76 22 99 19
2709993 3 3 IPTKU/D 6.5 75-190 A+100 165 89 22 122 22
2709995 4 4 IPTKU/D 9.9 120-280 A+150 185 89 40 122 22
2709994 5 5 IPTKU/D 12 120-350 A+175 185 89 40 122 22
2709970 10 10 IPTKU/D 38 200-460 A+300 250 105 60 152 26

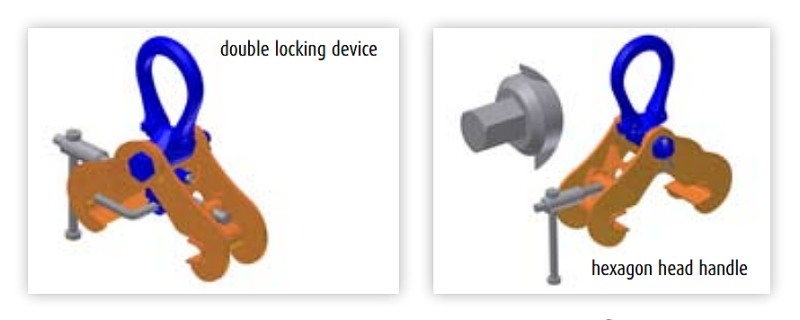

IPTKU-locking-device
