Crosby IPTKUM Anchor Clamp (For one person) (75-190MM) - Crosby - By Brand
Crosby IPTKUM Anchor Clamp (For one person) (75-190MM)
Key Features
- This anchor clamp is suitable as an anchor device for one person, for the attachment of components forming part of a personal protection system.
- Easy to operate (ergonomic). - Low own weight.
- Frame is galvanized (sherardised) - Standard: EN 795
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
Anchor Clamp IPTKUM
General: This anchor clamp is suitable as an anchor device for one person, for the attachment of components forming part of a personal protection system.
The steel beams must have a flange width of minimum 75 mm up to maximum 190 mm and a flange thickness of minimum 5 mm and maximum 22 mm.
Finish: Galvanized.
Marking: Max. load, ID number, RFID chip and CE.
Features:
- Easy to operate (ergonomic).
- Low own weight.
- Double locking system.
- Up to 45° side loading and 15° cross loading with 100% WLL.
- Spindle with hexagon head for fast pneumatical or electronic opening and closing.
- Supplied with certificate and manual.
- Frame is galvanized (sherardised)
- Standard: EN 795

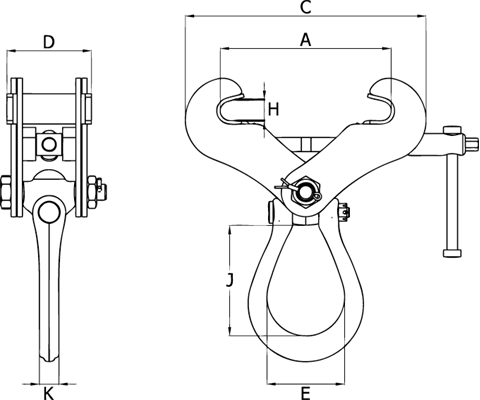

| Art No | Code | Max. number of persons | Jaw A | C | D | E | H | J | K | Weight |
| mm | kg | |||||||||
| 270999 | IPTKUM | 1 | 75-190 | A+100 | 121 | 76 | 22 | 99 | 19 | 6 |
