Crosby L322AN Alloy Swivel Hook With Latch - 1.25t to 22t WLL - Crosby - By Brand

In stock
Only %1 left
SKU
L322AN

Crosby L322AN Alloy Swivel Hook With Latch - 1.25t to 22t WLL

Be the first to review this product
From £35.10 £29.25
In stock
Quantity
Add to Compare

Key Features

  • Forged - Quenched and Tempered - Swivel hooks are load rated.
  • Crosby latch kit included
  • Deformation Indicators
  • Alloy swivel hooks 1.25tA-31.5tA : proof load is 2.5 times working load limit. Designed with a 4 to 1 safety factor
Delivery Options

Delivery Information

Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.

Returns Policy

Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.

Non-standard (Quote only, pre-order or custom-made products)

Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.

For more information see https://www.dlhonline.co.uk/terms-conditions

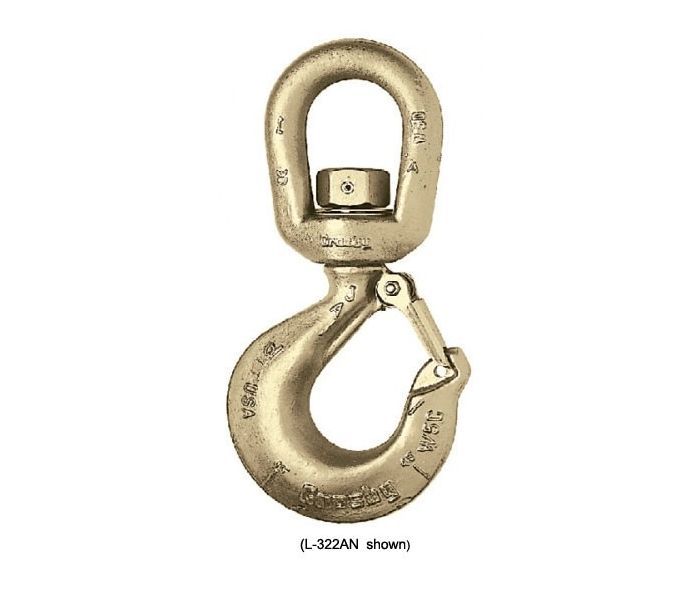

main product photo
For more information about this, or any of our other products contact our team on 0161 223 1990 or send us a message >
  • Forged - Quenched and Tempered.
  • Swivel hooks are load rated.
  • Proper design, careful forging, and precision controlled quench and tempering give maximum strength without excessive weight and bulk.Low profile hook tip designed to utilize Crosby S-4320 and  PL-N latch kit.  Even years after purchase of the original hook, latch assemblies can be purchased.  (contact us)
  • Hoist hooks incorporate markings forged into the product which address two (2) QUIC-CHECK® features:
  • Deformation Indicators -- Two strategically placed marks, one just below the shank or eye and the other on the hook tip, which allows fora QUIC-CHECK® measurement to determine if the throat opening has changed, thus indicating abuse or overload.Angle Indicators — Indicates the maximum included angle which is allowed between two (2) sling legs in the hook.  These indicators also provide the opportunity to approximate other included angles between two sling legs.
  • Type Approval and certification in accordance with ABS 2006 Steel Vessel Rules 1-1-17.7, and ABS Guide for Certification of Cranes.

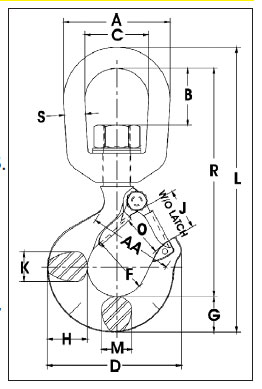

Crosby L322AN diagram


This hook is a positioning device and is not intended to rotate under load. For swivel hooks designed to rotate under load, Use in corrosive environment requires shank and nut inspection in accordance with
ASME B30.10-1.10.4(b)(5)(c) 2009. - U.S. Patents 5,381,650 & 5,193,480 & 5,103,755 and foreign equivalents.

Working Load Limit (t)*

L-322 AN
Stock No.

Weight Each (lbs.)
Dimensions (mm)

Alloy
A
B
C
D
F
G
H
J
K
L
M
O †
R
S
AA
1.25 1048807 .34 51.0 20.8 31.8 72.5 31.8 18.5 20.6 23.6 16.0 144 16.0 23.6 116 9.65 38.1
1.60 1048816 .57 63.5 33.3 38.1 80.0 35.1 21.3 23.9 24.6 18.0 170 18.0 24.6 136 12.7 50.8
2.50 1048825 1.02 76.0 38.1 44.5 91.0 38.1 25.4 29.5 26.9 22.4 197 22.4 26.9 155 16.0 50.8
3.20 1048834 1.04 76.0 38.1 44.5 102 41.1 28.7 33.3 30.2 23.9 210 23.9 29.5 165 16.0 50.8
5.4 1048840 2.25 89.0 41.7 50.8 123 51.0 36.6 41.4 38.1 33.3 246 28.7 35.8 191 19.1 63.5
8.0 1048859 4.67 116 58.0 63.5 160 63.5 46.0 52.5 45.2 42.2 317 36.6 42.9 245 25.4 76.2
11.5 1048868 8.80 127 64.5 70.0 192 76.0 57.0 67.0 51.0 47.8 375 41.4 56.5 289 28.7 101
16 1048880 10.5 143 63.0 79.0 212 82.5 66.0 74.5 66.5 55.5 417 49.3 61.0 311 31.8 101
22 1048889 21.3 180 95.5 104 263 108 76.0 89.0 86.5 68.5 542 60.5 81.0 424 38.1 127
*NOTE: Alloy swivel hook 30tA: proof load is 2 times working load limit. Designed with a 4 to 1 design factor.
† Dimensions for alloy hooks are for S-4320 latch kits.
  •
Crosby-Carbon-and-Alloy-swivel-hooks
