Crosby
Turnbuckles HG223 – Hook & Hook
Hook-hook. End fittings are quenched and tempered, bodies heat-treated by normalizing.
Standard: According to Federal Specifications FF-T-791b.
- Marking: Logo, size, and type.
- Finish: Hot dipped galvanized.
- Note: Turnbuckles recommended for straight or in-line pull only.
- Safety factor: 5:1

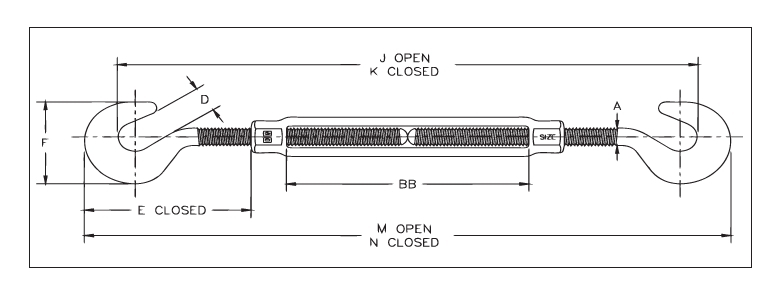

Metric Dimensions & Specifications
| Thread Diameter & Take Up (mm) | HG-223 Stock No. | Working Load Limit (t)* | Weight Each (kg) | Dimensions (mm) | ||||||||
| A | D | E Closed | F | J Open | K Closed | M Open | N Closed | BB | ||||
| † 6.35 x 102 | 1030011 | .18 | .15 | 6.35 | 11.2 | 42.3 | 32.3 | 249 | 187 | 310 | 208 | 103 |
| † 7.94 x 114 | 1030039 | .32 | .24 | 7.94 | 12.7 | 50.7 | 38.1 | 294 | 218 | 358 | 243 | 116 |
| † 9.53 x 152 | 1030057 | .45 | .38 | 9.53 | 14.2 | 57.8 | 44.7 | 387 | 270 | 453 | 301 | 155 |
| 12.7 x 152 | 1030075 | .68 | .85 | 12.7 | 16.5 | 89.7 | 57.9 | 457 | 335 | 527 | 375 | 153 |
| 12.7 x 305 | 1030119 | .68 | 1.26 | 12.7 | 16.5 | 89.2 | 57.9 | 769 | 495 | 839 | 535 | 314 |
| 15.9 x 305 | 1030137 | 1.02 | 1.46 | 15.9 | 22.9 | 108 | 71.4 | 495 | 368 | 572 | 419 | 153 |
| 15.9 x 305 | 1030173 | 1.02 | 2.08 | 15.9 | 22.9 | 107 | 71.4 | 809 | 529 | 885 | 580 | 315 |
| 19.1 x 152 | 1030191 | 1.36 | 1.91 | 19.1 | 24.9 | 129 | 84.6 | 538 | 406 | 620 | 467 | 156 |
| 19.1 x 305 | 1030235 | 1.36 | 3.14 | 19.1 | 24.9 | 128 | 84.6 | 853 | 568 | 935 | 630 | 320 |
| 19.1 x 457 | 1030253 | 1.36 | 3.92 | 19.1 | 24.9 | 129 | 84.6 | 1158 | 721 | 1240 | 782 | 471 |
| 22.2 x 305 | 1030271 | 1.81 | 4.47 | 22.2 | 28.7 | 148 | 96.0 | 886 | 597 | 972 | 667 | 309 |
| 25.4 x 305 | 1030333 | 2.27 | 6.70 | 25.4 | 31.8 | 167 | 108 | 929 | 637 | 1019 | 714 | 309 |
*Proof Load is 2.5 times the Working Load Limit. Ultimate Load is 5 times the Working Load Limit. † Mechanical Galvanized
