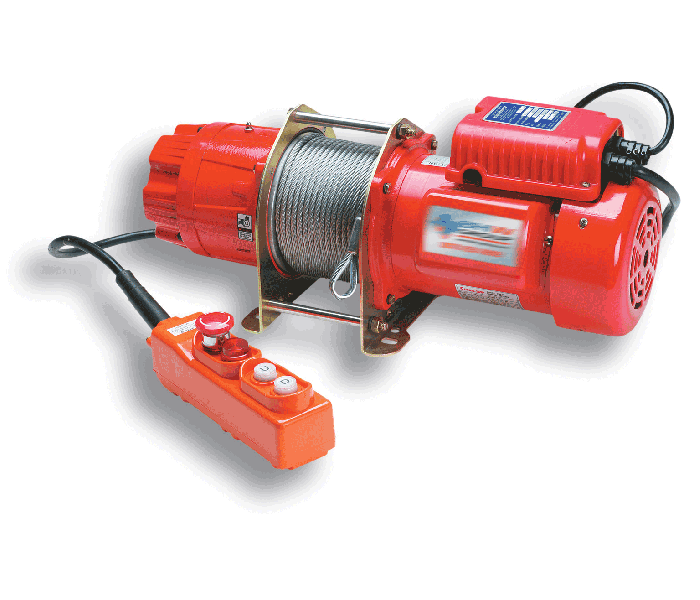

CWG range 300kg Lifting winch 110V, 240V or 415V
Key Features
- Complete with 6 mm dia. x 45metre wire rope (30m on 415V)
- All CWG winches are bi-rotational with electromagnetic spring-applied fail safe brake
- Heavy duty wanderlead pendant with emergency stop
- Heavy duty high efficiency ball bearings on all running surfaces
- Planetary gearing for maximum efficiency - Enclosed drum flanges = Quiet running
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
WINCH FEATURES INCLUDE
- 6 mm dia. x 45metre wire rope (30m on 415V)
- Positive retention of wire rope on to drum
- All CWG winches are bi-rotational
- Electromagnetic spring-applied fail safe brake
- Heavy duty wanderlead with emergency stop
- Heavy duty high efficiency ball bearings on all
running surfaces - Planetary gearing for maximum mechanical efficiency
- Enclosed drum flanges
- Quiet running
Radio Remote - 2 function + E/Stop control system (Contact us)
| SPECIFICATIONS | CWG10077 | CWG30075 | |||
| Voltage options: | 110v 1ph 240v 1ph | 415v 3ph | |||
| Lifting: | Capacity Height of lift | 300kg 300kg | 300kg | ||
| 43m | 29m | ||||
| Weight: | Winch only Total kit average | 42kg | 32kg | ||
| 44kg | 34kg | ||||
| Line speed: | 1st layer Last layer | 12m/min | 10m/min | ||
| 18m/min | 15m/min | ||||
| Duty cycle: | 1ph have a duty cycle of 25%,with a max.of 60 starts per hour | ||||
| Wire rope: | ř x length Safety factor | 6mm x 45m | 5mm x 30m | ||
| Minimum factor of safety 5:1 | |||||
| Motor type: Outputs: | Kilowatts Amperes | Induction motor | |||
| 1.5kw 1.5kw | 0.75kw | ||||
| 20amp 10.6amp | 1.8amp | ||||
| Braking: | Electromagnetic spring applied failsafe | ||||
| Drum: | Length Diameter ř Flange | 150mm | 110mm | ||
| 102mm | 94mm | ||||
| 180mm | 154mm | ||||
| Rope ř to mean drum ř ratio: | 18:1 | 20:1 | |||
* Mean drum diameter = the drum diameter plus the diameter of the wire rope
NOTE
These winches must not be used for the movement of personnel and 7 wraps of wire rope must be maintained on the drum.
Data shown is approximate and intended as a guide only.WARRANTY
Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.Wire ropes are not included under warranty
