D48 48.3 mm dia. Mezzanine Side Mounted Handrail kits to BS EN ISO 14122-3:2016 Galvanised - Warehouse & Storage - By Industry

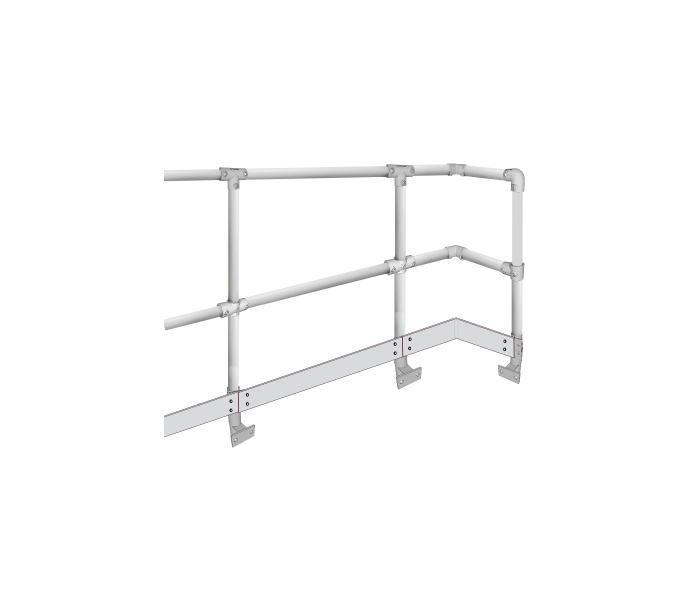

D48 48.3 mm dia. Mezzanine Side Mounted Handrail kits to BS EN ISO 14122-3:2016 Galvanised
Key Features
- Posts are 1260 mm high - jig assembly ensures accurate alignment
- Ready cut handrails and kick plates for posts at 1500 mm centres
- All galvanised finish for durability
- No cutting or welding on site - Stainless steel Hex screw assembly
- Side Flange bases for easy attachment to level surface
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
D48 48.3 mm dia. Mezzanine Side Mounted Handrail kits to BS EN ISO 14122-3:2016 Galvanised
The kits allow Production, Safety, and Maintenance Managers to immediately protect workplace areas resulting from risk assessments or other safety issues.
There is no need to weld or bend tubing and semi-skilled labour can easily install the sections. Pre-assembled uprights add to the simplicity and make installations extremely quick to complete, reducing expensive production downtime.
Most guardrail configurations can be constructed using a combination of the kits available. For alternative arrangements, bespoke layouts are used for machine guarding. platforms, staircases, ramps or steps - Please supply a sketch showing the layout and dimensions to mezzbarriers@dale-lifting.co.uk or to discuss your requirements, call: 0161 223 1990 for a no-obligation quotation

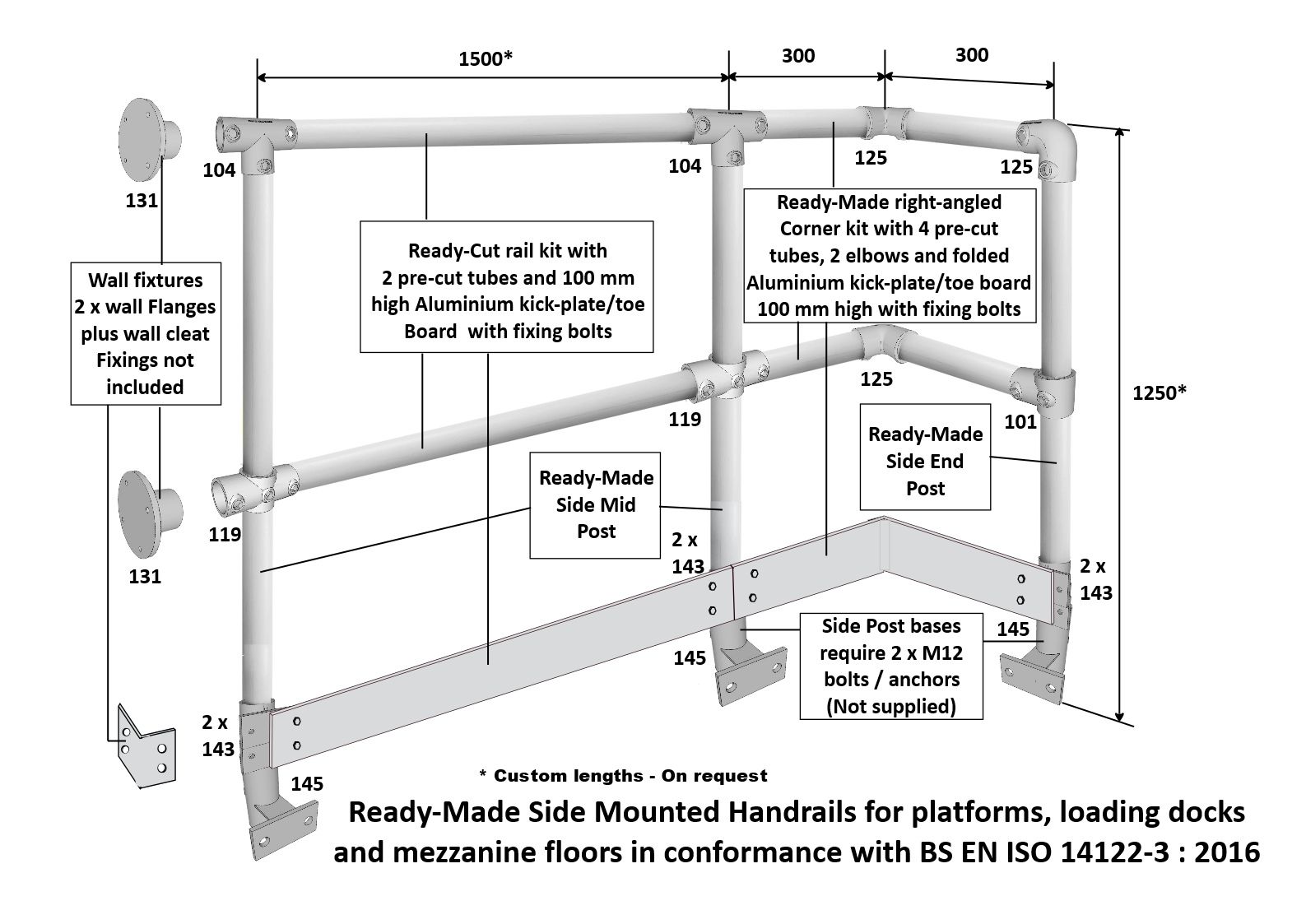

Side Mounted End Post: comprises galvanised tube 1250mm o/all high, 145 side flange (Side fixings not included),with 2 x 143 kick plate attachment and 101 short tee, 125 90 degrees 2-way elbow.
Side Mounted Middle Post: comprises galvanised tube 1250mm o/all high, 145 side flange (Side fixings not included),with 2 x 143 kick plate attachment, 119 2 socket cross, 104 long tee.
Right Angle Corner Rail kit: comprises 4 pre-cut tubes, 2 elbows and folded, 100 mm high Aluminium kick-plate/toe board with fixing bolts
Straight Handrail Kit: comprises 2 pre-cut tubes and 100 mm high Aluminium kick-plate/toe board with fixing bolts - for posts at 1500 mm centres.
Rail Wall Fixing kit : comrises;2 x 131 wall Flanges plus kick plate wall cleat ; Wall fixings not included.
Hi-Vis Hazard Warning Tube Sleeving 1 metre length (Sold separately)
Yellow and black diagonal stripe - Ideal to improve the visibility of your pallet gates and handrails. Easy-fit PVC tubular sleeving - Just springs over tube and grips. Durable and wipe clean finish. (Used by scaffold companies). Fits tubes sizes B34, C42 and D48. Sold in one-metre lengths, and can be butted together for longer lengths and is easily cut to fit.
'Off the Shelf' Railing Kits
Designed for quick assembly these safety railing kits, are available 2 tube sizes- Jig assembly for accurate alignment.
Features of Pre-assembled Railing Kits
- Pre-assembled uprights
- Utilises market leading Interclamp fittings
- Interclamp components are fitted with stainless steel grub screws.
- 42.4 and 48.3 mm diameter handrails - All round tube diameters quoted are OUTSIDE diameters.
Custom kits available (Contact us)
- Variable angle adjustment for Staircase, Step and Ramp kits.
- Alternative baseplate availability. (Contact us)
- Pedestrian safety gates, self-closing gates, and cat ladder extension kits
- Mezzanine pallet gates
- High-level door opening safety loading gates
Benefits of Pre-assembled Railing Kits
- Creates a Safe environment for workers
- No welding, bending or threading is required
- Versatile modular construction
- Sections can be added and changed as required making the Kit extremely versatile.
- Simple installation using the hexagon key (Sold separately)
- If necessary, tubes can be saw cut on site, kick plates will require redrilling after cutting or contact us for special cut-down lengths
