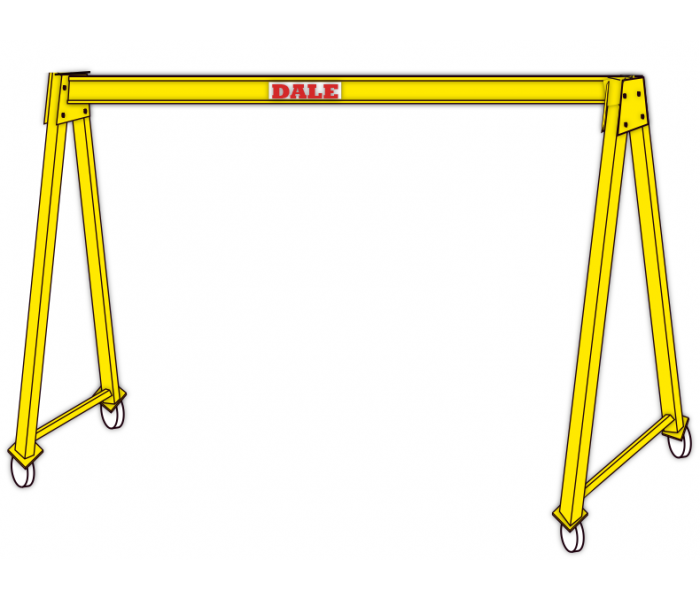

DALE Type A Steel Mobile Lifting Gantries - Unbraced up to 2,000 kg capacity
Key Features
- Mechanically welded construction can be dismantled into 3 main parts.
- Allows full unhindered travel along the beam
- 500 kg to 2,000 kg WLL
- Available in 6 heights 2.5, 3.0, 3.5, 4.0, 4.5 and 5.0 metres
- 6 Spans 2.5, 3.0, 3.5, 4.0, 4.5, and 5.0 metres
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
These gantries are ideal for confined spaces as the unbraced design allows unhindered travel along the full length of the beam.
A suitable gantry for workshops, yards, garages and many other applications
Features
- Mechanically welded construction can be dismantled into 3 parts
- White polyamide wheels for up to 2 tonnes
- Protection: 3 layers
- RAL 1028 yellow polyurethane finish
- Maximum hoisting lifting speed = 16m/min
- Maximum hoist travelling speed = 10m/min
- 250 kg to 2,000 kg SWL
- Available in 5 under beam height sizes and spans 3m to 5m
Type A Standard Range
| Capacity | Span (S) | Height under beam (H) (mm) | |||||
| 500 kg | 2.5 m | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 |
| 3 m | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | |
| 3.5 m | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | |
| 4 m | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | |
| 4.5 m | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | |
| 5 m | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | |
| 1000 kg | 2.5 m | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 |
| 3 m | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | |
| 3.5 m | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | |
| 4 m | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | |
| 4.5 m | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | |
| 5 m | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | |
| 1600 kg | 2.5 m | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 |
| 3 m | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | |
| 3.5 m | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | |
| 4 m | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | |
| 4.5 m | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | |
| 5 m | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | |
| 2000 kg | 2.5 m | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 |
| 3 m | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | |
| 3.5 m | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | |
| 4 m | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | |
| 4.5 m | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | |
| 5 m | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | |
Options (Contact us for details):
- Special dimensions
- 4 wheels with polyurethane tyres.
- Wheels lock (price per wheel
- Manual Hoist (Std lift 3m - Longer lifts available)
- Manual Push travel trolley
- Manual Hand geared trolley
- Electric hoist (Std lift 3 m - Longer lifts available). State voltage required.
- Powered travel trolley
- Power feeding line for electric hoist
- Lockable mains switch
- Cable reel 18 m.
- Polyurethan painting with specific color on epoxy primer for outdoor use
- Hot dip galvanizing
- Cover for the lockable switch
- Covering for hoist
Use our online get quote facility or contact our sales department: sales@dale-lifting.co.uk
