Delta Electric chain hoists 500 kg and 1000 kg 110V/240V - Electric Hoists - Hoists - Lifting, Hoisting and Winching

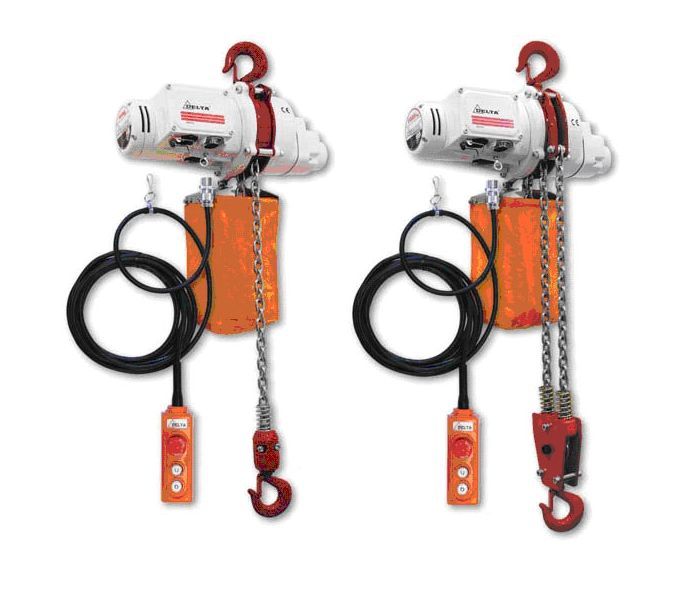

Delta Electric chain hoists 500 kg and 1000 kg 110V/240V
Key Features
- Ideal for Civil Contractors, Builders and Factory Service Engineers.
- Lightweight and compact design Easy installation - Ideal for moving between different locations
- Buy on line up to 6 metres lift or contact us for more options
- xcellent value for the professional user
- Optional chain collecting bag
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
Lightweight, versatile chain hoists offering excellent performance for such compact machines.
Sold online up to 6 metre height of lift. For a longer lift quotation, please contact our sales team
These professional jobbing hoists are a ‘must have’ for all service vans.
Ideal for Civil Contractors, Builders and Factory Service Engineers.
Portable, saves time and effort - and a major contribution to maintaining Health and Safety standards on site.

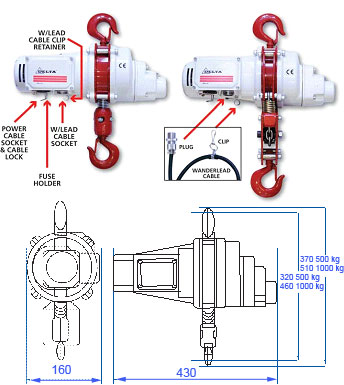

FEATURES INCLUDE
- Available in either 110v or 240v x 1ph options In the case of 110v version - via transformer
- Lightweight and compact design
- Easy installation, ideal for moving between different locations
- Safety slipping clutch
- Prevents hook becoming trapped into the hoist in the ‘up’ direction
- 360º safety hook Self latching swivel type
- 6 metre plug in pendant control - 2 button plus emergency stop
- 5 metre power lead with commercial type 3 pin plug
- Limited motor draw on amperage
- Rectified brush type limits current draw to 6 amps. This enables hoist to operate from a standard 13amp ring main.
Optional Extras:
Chain bag 15m capacity
Higher lifts and chain bags up to 60 metres (Contact us for prices)
SPECIFICATIONS
| Voltage: | 110v | 240v | 110v | 240v |
| Lifting: Capacity Type of fall |
500kg | 1000kg | ||
| Single | Double | |||
| Weight: Hoist 3m lift | ||||
| 20kg |
24kg | |||
| Line speed approx | 6m/min | 3m/min | ||
| Outputs Kilowatts Amperes |
1.3kW | 1.3kW | ||
| 12amp | 6amp | 12amp | 6amp | |
| Duty cycle | All have a duty cycle of 25%, with a maximum of 60 starts per hour | |||
| Chain Grade 80 HT | galvanised - Links 6.3mm dia x 19.1mm long | |||
