Delta Standard Low Headroom High Load Safety Pallet Gate Galvanised
Delivery generally takes approximately two weeks - It is available to buy online in popular sizes but is available in custom dimensions - For quotation, options, carriage and lead time; to request a quotation, please download the specification PDF E-form below.
Delta Specification, Custom Sizes and Options |
Key Features
- Conformance with BS EN ISO 14122-3:2016.
- Easy to install and simple to use - Instructions provided
- Available with 4 standard widths 1.50, 2.00, 2.5 ,3.0 metres and 3500 mm (Custom widths up to 3.5 metres)
- Protects all personnel from falls from opening and contact with moving loads
- Galvanised tube and components - All parts are replaceable - CE marked
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions

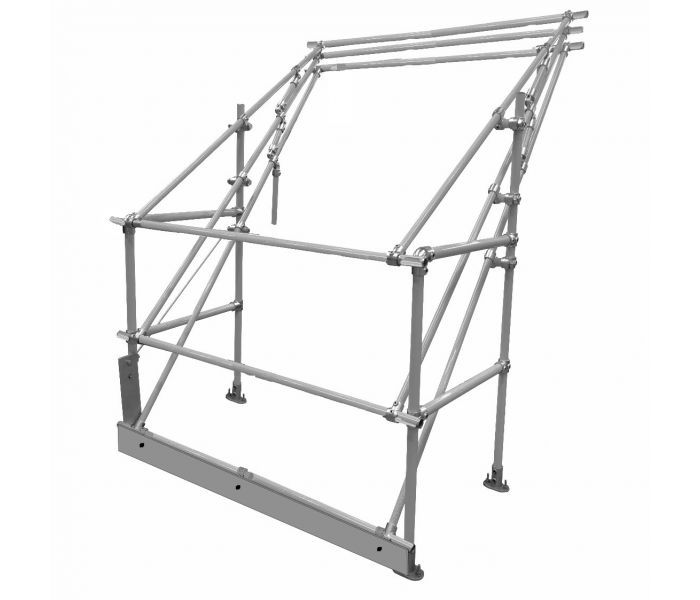

Delta Standard Low headroom High Load Pallet Gate - Galvanised
We offer this Delta standard made-to-order* model for pallets up to 2.0 metres high with headroom of 2.35 metres - Standard inside widths of 1.5, 2.0, 2.5, 3.0 and 3.5 metres.
Please download our order form for custom dimensions and optional extrash.
* Made to order 2-3 weeks - Please request a quote or contact us if this is outside of your requirements.
The Galvanised Delta Low headroom high-load mezzanine pallet gate system solves a problem encountered on many mezzanine floors. How to provide an economic safety gate for high-level pallet loading where low ceiling headroom and high load requirements conflict. Protects people from contact with moving loads and falls from the unprotected edge during fork truck loading access to the mezzanine floor.
-
Conforms to BS EN ISO 14122-3:2016 Mezzanine Gates

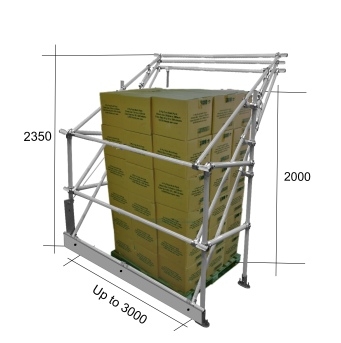

Dimensions:
- Inside width 1500 mm, 2000 mm, 2500 mm, 3000, 3500 mm
- Overall width = inside width + 290 mm
- Inside depth 1500 mm
- Overall depth 1600 mm
- Side frame depth 750 mm
- Max load height of 2000 mm
- Overall height 2350 mm (This dimension allows at least 150 mm load clearance on inside height)
- Handrail height 1100 mm
*Dimensions are approximate only. Due to differences in the tube clamps and the assembly process, the actual dimensions may vary slightly. Any critical dimensions, such as hole-fixing centres, should be determined when the product is on your site. We reserve the right to change the design without notice.
Installation: Requires 8 x M12 Bolts/Anchors (Not included).
Why use this safety gate system?
The Delta pallet gate design has proven the ideal answer to pallet loading issues. Low headroom, high load clearance, and space-saving side frames.
Replaces swing gates, removable bars or chains which can be left open.
The innovative Delta safety gates have been specifically developed to provide fool-proof safety for personnel working a height. The design is ideal for loading applications, from standard pallets to exceptionally large loads on mezzanine floors, loading docks, and high-level platforms.
The Delta safety gate model is offered to bespoke requirements. See details below - Despatch generally takes around two weeks - Request a quote for the accurate timescale.
How It Works
The gates pivot up and down at either end of the load, cleverly hinged to automatically close the edge gate when personnel needs to enter the enclosed loading area.
Delta Safety Gate System is possible for standard pallets or special versions for specific applications.
Features and benefits:

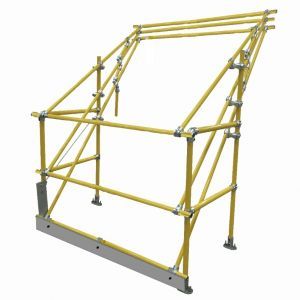

- All Galvanised Tubular steel construction or with Yellow Thermoplastic (Warm Touch) Coated Tube
- 100 mm high Aluminium kick plate attached to the bottom edge gate
- Gravity locks on the edge gate with a pull handle release.
- Pull down/Push up swing tube
- Supplied and ready for simple installation (Partially dismantled for shipment)
- High load clearance
- Clear of floor edge when open
- Balanced action provides an easy opening
- All parts are replaceable
- Separates people from moving loads and falling from the unprotected edge
- Allows a clear view of the operation
- Reinforces a sense of security
- Fail-safe operation
Full specifications are shown in the Delta Brochure/Order form Download PDF
Optional Special Features: (You can tell us about any special dimensions or extras you require in the Custom gate brochure
- Special inside width up to 3500 mm
- Special depth up to 2000 mm
- Special load height up to 2500 mm
Component Specification
Mezzbarriers tube clamps are made of malleable cast iron. Manufactured in conformance with BS EN 1562:1997, a dependable and well-proven material for this product type. The fittings are then hot-dipped galvanised to BS EN ISO 1461:1999 to produce a durable corrosion-resistant finished surface for extended life. Grub screws are stainless steel. Specially fabricated components are zinc sprayed as standard.
See Frequently asked questions for pallet gates
Optional Extras

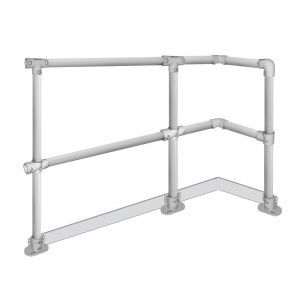

- Additional handrail to complete barrier infill or extend around your platform as required

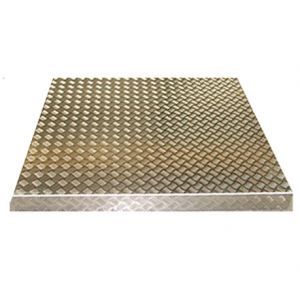

- Floor plate in aluminium chequer plate 1250 mm wide x 1150 mm deep with 100mm fold to protect edge (Recommended for wood floors). Order 2 for wider coverage). Delivery free when ordered with your Delta pallet gate

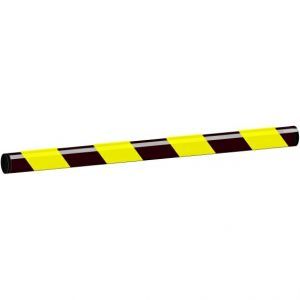

- Hi-Vis Hazard warning Yellow/Black tube sleeves 1000 mm lengths - Easy to fit and cut to length (Sold separately)
See below
