Donati GBP Wall Mounted 'H' Beam Overbraced Jib Cranes up to 2,000 kg capacity
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
| Standard Capacity | 125 kg* | 250 kg* | 500 kg* | 1000 kg* | 2000 kg* |
| Maximum Reach | up to 8.0 metres | Up to 8.0 metres | Up to 8.0 metres | Up to 7.0 metres | Up to 5.0metres |
| * Standard capaciies can be de-rated to suit your application | |||||
Tip: Maximum capacity sizes shown above or view standard models below.
270° 'H' Beam - Manually Rotated Jib Cranes
The manually rotated jib cranes are available for lifting capacities from 125 kg to 2000 kg and jibs from 4m to 8m. The Donati jib cranes are designed and manufactured according to the ISO A5 classification
The arm is an H (UB)-beam profile. The arm allows the addition of either standard electric or hand-pushed trolley
Painted with a base and top coat of yellow enamel, subject to preparation of the surfaces by metallic sandblasting. The drying in a oven concludes the cycle.Jibs can be supplied with the following options:
- Donati 400V 3ph 50Hz electric chain hoist with single or dual speed and low voltage pendant. Alternatively 110V and 240V electric hoists, other brands, manual or pneumatic hoist are available on request
- Special reach and height
- 400v 3ph. 50 Hz Electric feed system with festooned cables and main/off switch on the column
- Wall fixing system by using brackets and staybolts.
- Mechanical Slewing stops
- Outdoor use
- Special paint finish e.g. Off-shore use
- Installation - Subject to location
Contact our sales team for advice on 0845 270 2919
Installation and maintenance instructions are provided.

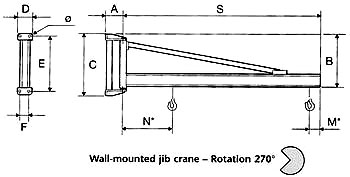

| Model | Lifting Capacity (kg) | Nominal Arm Length (S) (metres) | Size of jib Crane | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | ř (mm) | Weight of Crane (kg) |
| H02C60 | 125kg | 6 | C | 210 | 820 | 930 | 250 | 870 | 190 | 22 | 160 |
| H02C70 | 7 | C | 210 | 820 | 930 | 250 | 870 | 190 | 22 | 180 | |
| H02C80 | 8 | D | 210 | 820 | 930 | 250 | 870 | 190 | 22 | 251 | |
| H02C40 | 250kg | 4 | C | 210 | 820 | 930 | 250 | 870 | 190 | 22 | 122 |
| H02C50 | 5 | C | 210 | 820 | 930 | 250 | 870 | 190 | 22 | 141 | |
| H02D60 | 6 | D | 210 | 820 | 930 | 250 | 870 | 190 | 22 | 200 | |
| H02D70 | 7 | D | 210 | 820 | 930 | 250 | 870 | 190 | 22 | 226 | |
| H03E80 | 8 | E | 255 | 1100 | 1240 | 300 | 1160 | 220 | 34 | 303 | |
| H02D40 | 500kg | 4 | D | 210 | 820 | 930 | 250 | 870 | 190 | 22 | 149 |
| H02D50 | 5 | D | 210 | 820 | 930 | 250 | 870 | 190 | 22 | 175 | |
| H03E60 | 6 | E | 255 | 1100 | 1240 | 300 | 1160 | 220 | 34 | 262 | |
| H03E70 | 7 | E | 255 | 1100 | 1240 | 300 | 1160 | 220 | 34 | 293 | |
| H03E80 | 8 | F | 255 | 1100 | 1240 | 300 | 1160 | 220 | 34 | 389 | |
| H03E40 | 1000kg | 4 | E | 255 | 1100 | 1240 | 300 | 1160 | 220 | 34 | 200 |
| H03E50 | 5 | E | 255 | 1100 | 1240 | 300 | 1160 | 220 | 34 | 231 | |
| H03F60 | 6 | F | 255 | 1100 | 1240 | 300 | 1160 | 220 | 34 | 312 | |
| H03F70 | 7 | F | 255 | 1100 | 1240 | 300 | 1160 | 220 | 34 | 351 | |
| H03F40 | 2000kg | 4 | F | 255 | 1100 | 1240 | 300 | 1160 | 220 | 34 | 233 |
| H03F50 | 5 | F | 255 | 1100 | 1240 | 300 | 1160 | 220 | 34 | 272 |

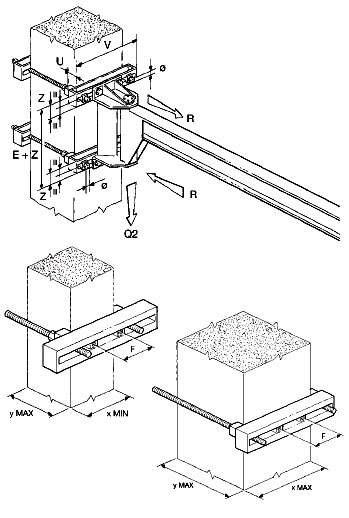

| Size of Crane | A | B | C | D | E | F | |
| Reactions (kN) | Q2 | 2.95 | 5 | 9.2 | 16.85 | 26.10 | 25.6 |
| R | 11.9 | 21.75 | 27.05 | 49 | 66.8 | 120 | |
| Type of Bracket | 01 | 02 | 03 | ||||
| Staybolts | ř | M14 | M20 | M30 | |||
| Clamping couples | (Nm) | 67 | 200 | 685 | |||
| Bracket Type: Short (mm) | Code | GBP010110 | GBP020110 | GBP030110 | |||
| U | 50 | 60 | 80 | ||||
| V | 400 | 490 | 532 | ||||
| Z | 75 | 90 | 135 | ||||
| Weight (kg) | 21 | 36 | 75 | ||||
| Pillar dimensions (mm) | x min | 200 | 250 | 300 | |||
| x max | 330 | 400 | 400 | ||||
| y max | 850 | 810 | 750 | ||||
| Bracket Type: Medium (mm) | Code | GBP010120 | GBP020120 | GBP030120 | |||
| U | 50 | 80 | 100 | ||||
| V | 530 | 640 | 682 | ||||
| Z | 75 | 120 | 145 | ||||
| Weight (kg) | 26 | 60 | 96 | ||||
| Pillar dimensions (mm) | x min | 200 | 250 | 400 | |||
| x max | 460 | 550 | 550 | ||||
| y max | 850 | 770 | 710 | ||||
| Bracket Type: Long (mm) | Code | GBP010130 | GBP020120 | GBP030130 | |||
| U | 60 | 80 | 120 | ||||
| V | 720 | 840 | 882 | ||||
| Z | 85 | 120 | 155 | ||||
| Weight (kg) | 40 | 74 | 132 | ||||
| Pillar dimensions (mm) | x min | 460 | 550 | 550 | |||
| x max | 650 | 750 | 750 | ||||
| y max | 830 | 770 | 670 | ||||
