Donati MBE Motorised Overbraced Wall Mounted Jib Cranes upto 2,000 kg capacity
Key Features
- Created for handling goods in areas which are difficult to reach and for lifting big capacities.
- Available in standard versions for lifting capacities from 250 kg to 2000 kg. Jibs from 2m to 8m.
- Maximum rotation field 290 deg. for the wall version.
- Optional Donati electric hoist avalable
- Request you no-obligation quotation
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
| Standard Capacity | 250 kg* | 500 kg* | 1000 kg* | 1600 kg* | 2000 kg* |
| Maximum Reach | Up to 8.0 metres | Up to 8.0 metres | Up to 8.0 metres | Up to 6.0metres | Up to 6.0metres |
| All models can be supplied with wall fixing system by using brackets and stay-bolts | |||||
| * Standard capacities can be de-rated to suit your application | |||||
Tip: Maximum capacity sizes are shown above or view standard models below.

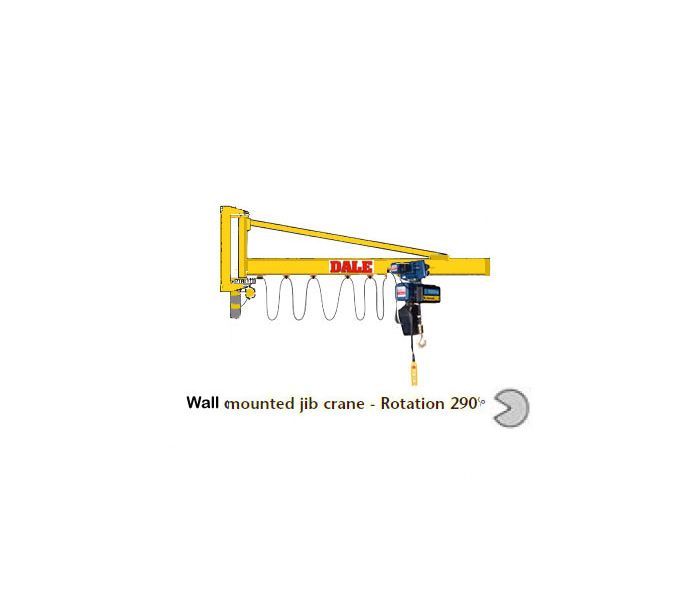

MBE Wall mounted over braced arm
Created for handling goods in areas which are difficult to reach and for lifting big capacities.
Available in standard versions for lifting capacities from 250 kg to 2000 kg. Jibs from 2m to 8m.
Maximum rotation field 290 deg. for the wall version.
The rotation mechanism is formed by a motor reducer fixed vertically in the lower part of the support bracket and the drive sprocket of the motor reducer fits together with a toothed crown integral with the arm which it powers.
The progressive starting up and braking are ensured by a variation of frequency (inverter).
The arm is an H (UB)-beam profile. The arm allows the addition of either standard electric or hand-pushed trolley
Painted with a base and top coat of yellow enamel, subject to preparation of the surfaces by metallic sandblasting. The drying in a oven concludes the cycle.
Jib cranes can be supplied with the following options:
- Donati 400V 3ph 50Hz electric chain hoist with single or dual speed and low voltage pendant.
- Special reach and height
- 400v 3ph. 50 Hz Electric feed system with festooned cables and main/off switch on the column
- Wall fixing system by using brackets and stay bolts.
- Mechanical Slewing stops
- Outdoor use
- Special paint finish e.g. Off-shore use
- Installation - Subject to location
Contact our sales team for advice on 0161 223 1990
Installation and maintenance instructions are provided.
| Type | Lifting Capacity(kg) | Arm (S)(m) | Size of Jib Crane | Speed of Arm | Motor Power | Weight of Crane | |
| R.P.M | Peripheric m/min | (kw) | (kg) | ||||
| EH02D60 | 250 | 6 | D | 0.6 | 23 | 0.4 | 258 |
| EH02D70 | 7 | D | 0.6 | 26 | 0.4 | 340 | |
| EH03E80 | 8 | E | 0.6 | 30 | 0.4 | 497 | |
| EH02D40 | 500 | 4 | D | 1 | 25 | 0.4 | 207 |
| EH02D50 | 5 | D | 0.8 | 25 | 0.4 | 233 | |
| EH03E60 | 6 | E | 0.6 | 23 | 0.4 | 334 | |
| EH03E70 | 7 | E | 0.6 | 26 | 0.4 | 451 | |
| EH03F80 | 8 | F | 0.6 | 30 | 0.4 | 497 | |
| EH03E40 | 1000 | 4 | E | 1 | 25 | 0.4 | 272 |
| EH03E50 | 5 | E | 0.8 | 25 | 0.4 | 304 | |
| EH03F60 | 6 | F | 0.6 | 23 | 0.4 | 384 | |
| EH03F70 | 7 | F | 0.6 | 26 | 0.4 | 451 | |
| EH03F85 | 8 | F | 0.6 | 30 | 0.4 | 497 | |
| EH03F67 | 1600 | 6 | F | 0.6 | 23 | 0.4 | 420 |
| EH03F40 | 2000 | 4 | F | 0.8 | 20 | 0.4 | 306 |
| EH03F50 | 5 | F | 0.6 | 20 | 0.4 | 344 | |
| Size of Crane | A | B | C | D | E | F | |
| Reactions (kN) | Q2 | 2.95 | 5 | 9.2 | 16.85 | 26.10 | 25.6 |
| R | 11.9 | 21.75 | 27.05 | 49 | 66.8 | 120 | |
| Type of Bracket | 01 | 02 | 03 | ||||
| Staybolts | ř | M14 | M20 | M30 | |||
| Clamping couples | (Nm) | 67 | 200 | 685 | |||
| Bracket Type: Short | Code | GBP010110 | GBP020110 | GBP030110 | |||
| Weight (kg) | 21 | 36 | 75 | ||||
| Bracket Type: Medium | Code | GBP010120 | GBP020120 | GBP030120 | |||
| Weight (kg) | 26 | 60 | 96 | ||||
| Bracket Type: Long | Code | GBP010130 | GBP020120 | GBP030130 | |||
| Weight (kg) | 40 | 74 | 132 | ||||
