Eclipse LF 90° Lift and Rotate Disc & Plate Magnet Lifter
Key Features
- Four sizes up to 1,000 kg
- Lift and turn in one single operation.- No power required
- Magnet position on the frame is adjustable to suit different load diameters.
- A neat hand grip on the frame makes it easy to guide
- Lift and rotate steel discs and plates for positioning and machine loading application
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
Eclipse LF 90° Lift and Rotate Disc & Plate Magnet Lifter
Lift and rotate steel discs and plates for positioning and machine loading applications.

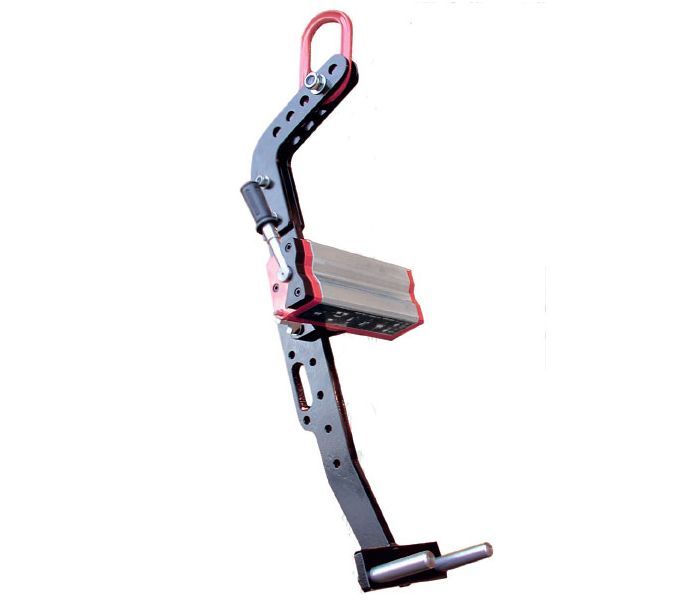

Frame with integrated lifting magnet allows you to pick the load from the floor and turn it through 90 degrees for final positioning.
EASE OF USE
- Lift and turn in one single operation.
- Returning to the pallet is simply the reverse of this movement.
ADJUSTMENT
- The magnet position on the frame is adjustable to suit different load diameters.
- The lifting point on the frame can also be adjusted to ensure a balanced lift.
SAFETY
- A neat handgrip on the frame makes it easy to guide the load to its location.
- The lower location pins prevent the load sliding when it is lifted through 90 degrees and allow a lighter and more cost effective magnet to be used.
Technical Data
Sizes below are for round and square components
Download PDF for full specifications
| Model | SWL kg | Minimum load thickness (mm) | Maximum load thickness (mm) | Mininum diameter (mm) | Maximum Diameter (mm) |
| LF 125 | 125 | 20 | 55 | 250 | 600 |
| LF 250 | 250 | 30 | 80 | 300 | 750 |
| LF 500 | 500 | 40 | 125 | 350 | 800 |
| LF 1000 | 1000 | 50 | 160 | 500 | 1000 |
