Galvanised Steel Wire Ropes 6 x 36 IWRC Warrington Searle construction
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
To receive quotation provide the following:
| Diameter | see chart below |
| Length | in metres |
| Terminations | e.g.Plain end, Tapered and fused. Talurit spliced plain or thimbles |
| Attachments | e.g hooks, shackles etc. |
| 6 x 36 IWRC Construction 1960 mpa | |||
|

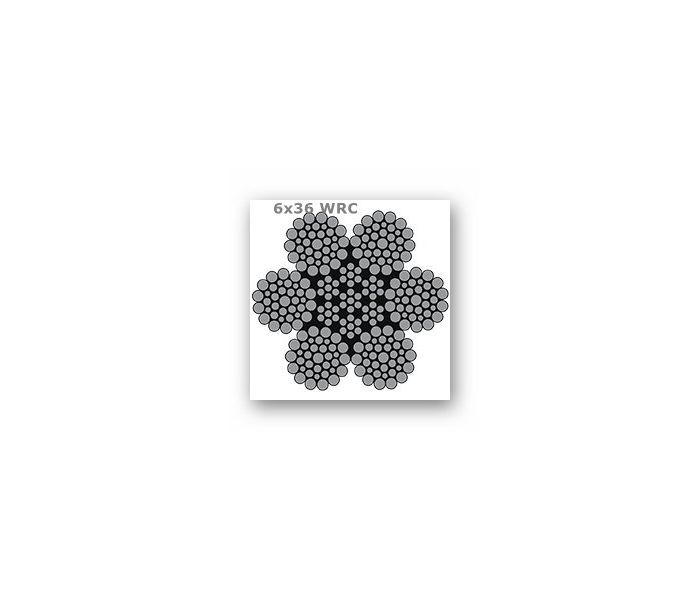

6x36 is a flexible general engineering wire rope readily available in galvanised. The wire rope has an equal lay construction (warrington seale) and achieves a superior breaking load to the 6x19 construction range. The construction has been designed to give a flexible rope with a good fatigue life. A 6x36 wire rope is available IWRC (independent wire rope core) and is used for a wide range of applications, examples of which are shown below:
|
|||
|
Nominal Diameter
|
Approximate Mass
|
Minimum breaking loads - 1960 Mpa
|
|
|
[mm]
|
[kg/m]
|
[kN]
|
[Kg]
|
|
8
|
0.262 | 44.7 | 4,555 |
|
9
|
0.331 | 56.5 | 5,764 |
|
10
|
0.409 | 69.8 | 7,117 |
|
11
|
0.495 | 84.4 | 8,611 |
|
12
|
0.589 | 100.5 | 10,248 |
|
13
|
0.691 | 117.9 | 12,028 |
|
14
|
0.802 | 136.8 | 13,949 |
|
16
|
1.047 | 178.6 | 18,219 |
|
18
|
1.325 | 226.1 | 23,059 |
|
19
|
1.476 | 251.9 | 25,692 |
|
20
|
1.636 | 279.1 | 28,468 |
|
22
|
1.980 | 337.7 | 34,447 |
|
24
|
2.356 | 401.9 | 40,994 |
|
26
|
2.765 | 471.7 | 48,111 |
|
28
|
3.207 | 547.0 | 55,798 |
|
30
|
3.681 | 628.0 | 64,054 |
|
32
|
4.188 | 714.5 | 72,879 |
|
34
|
4.728 | 806.6 | 82,274 |
|
36
|
5.301 | 904.3 | 92,238 |
|
38
|
5.906 | 1007.6 | 102,771 |
|
40
|
6.544 | 1116.4 | 113,874 |
|
42
|
7.215 | 1230.8 | 125,546 |
|
44
|
7.918 | 1350.9 | 137,788 |
