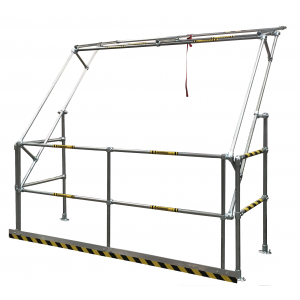

Gamma Standard Extra Wide Safety Pallet Gate Safety Yellow
Delivery generally takes approximately two weeks - It is available to buy online in popular sizes but is available in custom dimensions - For quotation, options, carriage and lead time; to request a quotation, please download the specification PDF E-form below.
Gamma Specification, Custom Sizes and Optional Extras |
Key Features
- Conforms to BS EN ISO 14122-3:2016 Mezzanine Gates
- Easy to install and simple to use - Instructions provided
- Standard inside widths 2.0, 2.5 and 3.0 metres
- Protects all personnel from falls from opening and contact with moving loads
- Safety yellow tube and galvanised finish components and with aluminium kick - All parts are replaceable - CE marked
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
Gamma Pallet Gate standard finish: Safety Yellow thermoplastic (Warm to touch) coated tube and galvanised components
This extra-wide model is a versatile design with a balanced action for standard or non-standard wide loads.
We offer this model made to order for extra wide applications - Standard inside widths of 2.0, 2.5, 3.0 and 3.5 metres with a load clearance height of 1.8 metres.
Dimensions:
- Inside width 2000 mm, 2500 mm, 3000 mm, 3500 mm
- Overall width = inside width + 290 mm
- Inside depth 1500 mm
- Overall depth 1700 mm
- Side frame depth 800 mm
- Max load height of 1800 mm - pushing standard depth pallets forward will increase load height to 2000 mm.
- Overall height 2400 mm
- Handrail height 1100 mm
Please download our order form for custom intermediate widths up to 3500 mm inside width.
We recommend allowing 200 mm minimum load clearance for the inside gate width.
Installation requires 8 x M12 Bolts/Anchors (Not provided)
Note - Despatch approx. 1 - 2 weeks; please request a quote or contact us if this exceeds your requirements.
Special intermediate widths (Custom sizes up to 3.5 m ) optional safety net available by quotation. See our order form
For extra depth and height, see our Titan extra-large model
*Dimensions are approximate only. Due to differences in the tube clamps and the assembly process, the actual dimensions may vary slightly. Any critical dimensions, such as hole-fixing centres, should be determined when the product is on your site.
We reserve the right to change the design without notice
Gamma Pallet Gate Features and Benefits:
- Conform to BS EN ISO 14122-3:2016 Mezzanine Gate - HSE approved
- Safety Yellow thermoplastic (Warm to touch) coated tube
and galvanised components - Improved wear resistance - wipe clean - weather resistant - 100 mm high Kick plate in aluminium - Lightweight and weather-resistant
- Supplied complete for simple installation (Partially dismantled for shipment flat-pack on a pallet)
- Installation, operation and maintenance instructions - supplied with each gate.
- Simply bolt to the floor and use - Free-standing, no-weld construction
- Balanced action - provides an easy opening for a single operative
- Minimal headroom required - standard ceiling height
- All component parts are replaceable - Damage can be repaired for extended life
- Nylon maintenance-free bushes on all pivot points
- Separates people from moving loads and from falling from an unguarded edge
- Allows a clear view of the operation
- Reinforces a sense of security for all employees
- Failsafe operation - Double gate system ensures floor edge is protected at all times
- CE Marked
Component Specification
Mezzbarriers tube clamps are made from malleable cast iron, manufactured in conformance with BS EN 1562:1997, a dependable and well-proven material for this product type. The fittings are then hot-dipped galvanised to BS EN ISO 1461:1999 to produce a durable corrosion-resistant finished surface for extended life. Grub Screws and Springs are stainless steel. Nylon pivot bushes with M20 galvanised bolts, washers and nylon lock nuts
See Frequently asked questions for pallet gates
Optional Extras:
- Floor plate in aluminium tread plate 1250 mm wide x 1150 mm deep with 100 mm fold to protect edge (Recommended for wood floors). The plate is supplied undrilled without fixings.
- Hi-Vis Hazard warning Yellow/Black tube sleeves 1000 mm lengths - Easy to fit and cut to length.
- Safety netting for edge gate - see Gamma brochure - order form
- Mezzanine handrail systems
