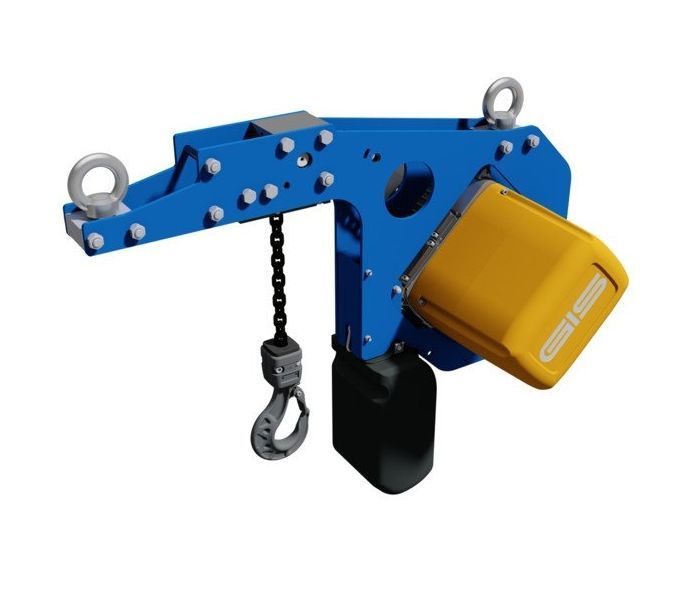

GIS - GPK and GCHK Low Headroom chain hoists
Key Features
- Lifting Capacity: GPK 500: 1000 kg; GCHK 1600 - 2500: 4000 kg
- These electric chain hoists are designed for particularly low spaces.
- The chain is deflected by a special guide up to increase the lifting height.- For large bulky loads, the hook spacing can be extended.
- The absolute synchronism of the electric chain hoist and the leveling out of the two load elements make it possible to precisely position the transported goods without turning them.
- 400V 3 phase - Eye bolt suspension or travel options available
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
GPK and GCHK, up to 4000 kg
- A solution for extra-low spaces
- Room height achieved through sophisticated chain guidance
- Hook position adjustable by gear limit switch
- With an extended frame for transporting long and bulky loads (See PDF)
- 1 or 2 lifting speeds
- Optionally with running gear - push or power travel
Download PDF for full details and dimensions
Technical specifications
Standard version
- Maximum load (2-way):
- GPK 500 -1000 kg; GCHK 250 - 500 - 1000- 1600 - 2500: 4000 kg
- 3 Ph 400 V / 50 Hz
- Control 42 V Low voltage
- 1 or 2 speeds
- Standard lift height 3 m
- Control cable length 1.8 m Eye suspensions
- Gear limit switch
- Ergonomic control switch with emergency stop
- The degree of protection IP55
- Insulation class F ( Motor)
- DC spring-loaded brake
- Slip clutch, not in power flow

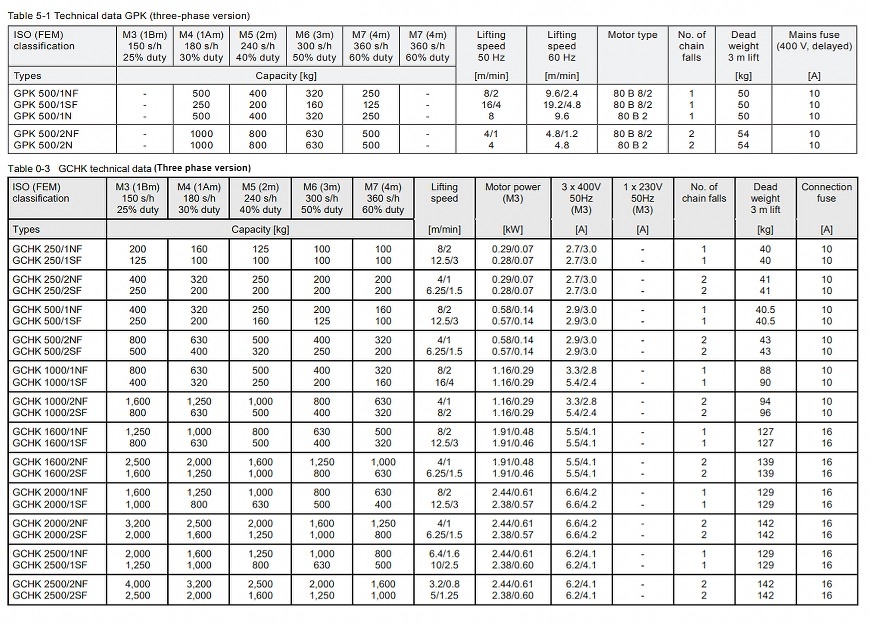

Technical specification
Hoist Models (Select duty rating required for your quote - Hoist will be badged with rated capacity chosen)
Accessories & Options
(Add to special requirements)
- Extended frame for long and bulky loads (See PDF enter dim +a for model required)
- Automatic chain oil dispenser
- direct control
- Other operating voltages on request
- Other control voltages on request
- Geared with two additional emergency stop contacts
- Operating hours and operation counter
- Frequency converter (FU)
- Temperature monitoring to protect the motor against overheating
- Manual brake bleeding
- Chain box for various lift heights
- Hook suspension
- Safety load hook
- Motor and Hand travel
- Radio control
- Holding contact control
