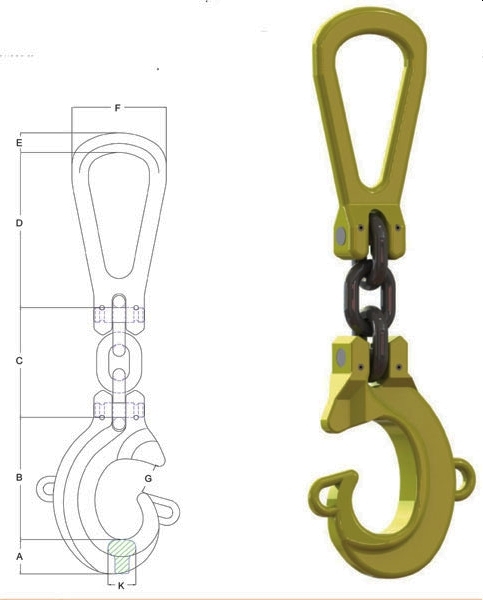

Lifting Hook Location System, formerly known as the “Blue Rope” system, consists of a Gr. 8 clevis C hook with additional line location points one end and a Gr. 8 clevis reevable egg link the other end. Also included are 3 links of Gr. 8 chains suitable to lift the capacity required.
This system is devised to enable the safe retrieval of submersible equipment from wet wells and similar locations. A number of utility companies prefer this system to a traditional chain system if the pump is in a shallow well. Alternative variations are available on request.
|
Chain Size (mm) |
W.L.L. (t) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
K (mm) |
| 10 | 1.0 | 40 | 127 | 90 | 130 | 19 | 97 | 30 | 30 |
| 13 | 3.0 | 52 | 167 | 117 | 178 | 22 | 111 | 40 | 38 |
| 16 | 5.0 | 59 | 206 | 144 | 203 | 26 | 124 | 47 | 44 |
