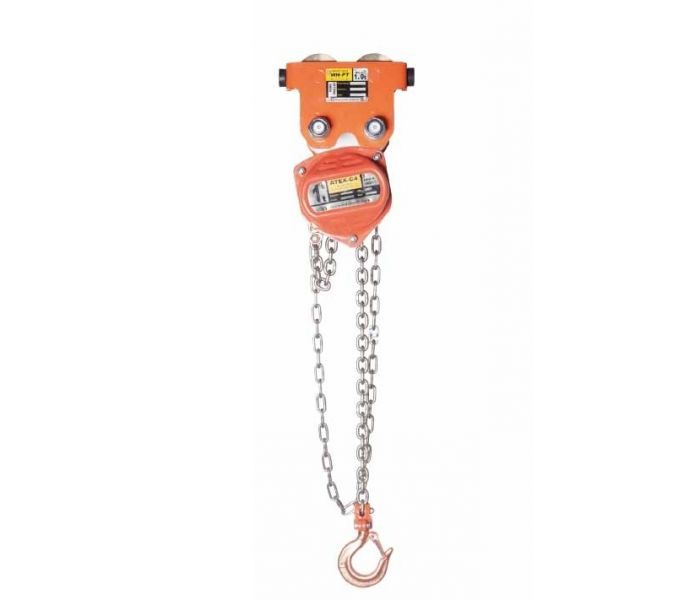

Hackett ATEX-C4 Combined Chain Hoist and Push/Geared Trolleys 500 kg to 2 tonnes. (Full range)
Key Features
- WORKING LOAD LIMIT RANGE: 500 kg to 2 tonnes.
- Calibrated Grade T (8) load chain to BS EN818-7 zinc plated with zinc plated hand chain or
- Calibrated Grade S (6) 316L stainless steel load chain, hand chain and bottom hook (stainless steel bottom hooks are only available for 500kg and 1 tonne units)
- ATEX anti-spark combined chain block and trollies for use in hazardous environments
- Special internal components corrosion protected
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions

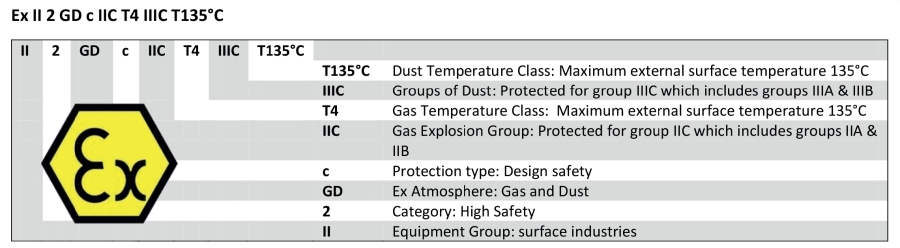

In accordance with: ATEX Directive 2014/34/EU and Machinery Directive 2006/42/EC
The William Hackett ATEX-C4 Combined Chain Hoist and Trolleys meet and exceed the requirements of international standard and British Standard BS EN 13157:2004 + AI:2009.
This high-quality trolley range is precision engineered in capacities from 500 kg to 2 tonne
Enabling exact positioning or easy traversing of large loads incorporating manual hoists, the Hackett series combined chain block and trollies can be supplied to suit various track widths with Beam Range 1 and the extended Beam Range 2.
The runners (trolley wheels) are precision machined and they rotate on maintenance sealed ball bearings.
All Hackett combined trolleys are fitted with anti-jump bars and rubber end stops as standard.
- ATEX anti-spark combined chain block and trollies for use in hazardous environments
- Special internal components corrosion protected
- Fitted with stainless steel hand chain material 316L
- Supplied with EN818-7 zinc plated load chain as standard with an option for stainless steel Grade 6 load chain upon application.
- Capacity 500 Kg - 2 tonne
- Other sizes available upon request
- Low headroom combined chain hoist and push travel trolley
- Low headroom combined chain hoist and geared travel trolley
All the above hoist configurations can also be supplied with the following options:
- Calibrated Grade T (8) load chain to BS EN818-7 DT9 corrosion coated and hand chain Dacromet corrosion coating.
- Calibrated Grade S (6) 316L stainless steel load chain, hand chain and bottom hook (stainless steel bottom hooks are only available for 500kg and 1 tonne units)
- Overload protection option available.
Performance and Testing

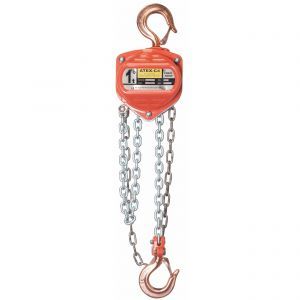

The William Hackett ATEX-C4 chain hoist has been fully tried and tested to include:
- Minimum Breaking Load - a minimum of 4 x the WLL
- The load chain anchor/end stop tested to at least 2.5 x the WLL with no restriction of either the brake or gears
- All Hoists are 100% proof tested at 1.5 x the Working Load Limit
- Light load of 2% of Working Load Limit
ATEX-C4 Combined Chain Hoist And Push Trolley

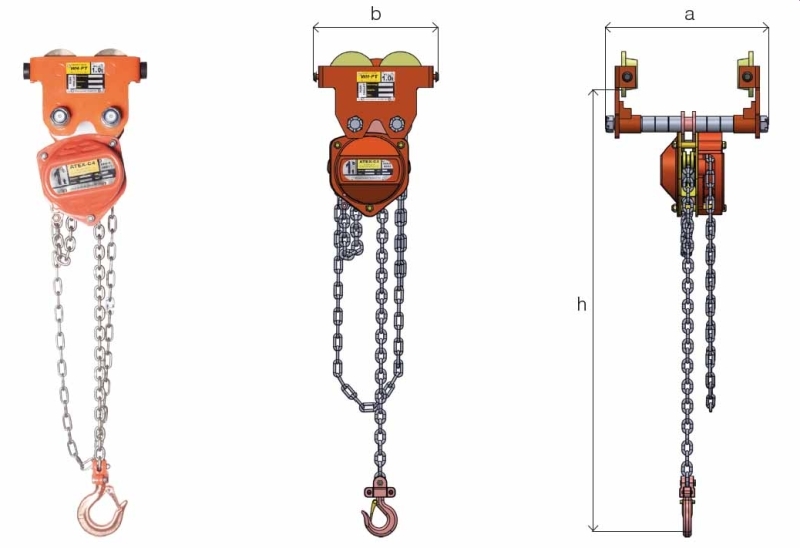

| Part Code | WLL tonnes |
No. of Falls |
Beam Range 1 mm |
Beam Range 2 mm |
a max mm |
b mm |
h mm |
Mass kg |
| 066.ATEX.050 | 0.50 | 1 | 50 - 203 | - | 294 | 190 | 314 | 15.00 |
| 066.ATEX.100 | 1.00 | 1 | 64 - 203 | 64 - 203 | 311 | 206 | 340 | 22.00 |
| 066.ATEX.200 | 2.00 | 1 | 88 - 203 | 88 - 305 | 324 | 246 | 400 | 34.00 |
ATEX-C4 Combined Chain Hoist And Geared Trolley
| Part Code | WLL tonnes |
No. of Falls |
Beam Range 1 mm |
Beam Range 2 mm |
a max mm |
b mm |
h mm |
Mass kg |
| 067.ATEX.050 | 0.50 | 1 | 50 - 203 | - | 320 | 200 | 314 | 15.60 |
| 067.ATEX.100 | 1.00 | 1 | 64 - 203 | 64 - 305 | 333 | 232 | 340 | 25.50 |
| 067.ATEX.200 | 2.00 | 1 | 88 - 203 | 88 - 305 | 342 | 260 | 400 | 37.50 |
