The William Hackett SS-L5 QP is the first lever hoist to incorporate four pawl mechanical engagement functionality. The unique and patented pawl design enhances the capabilities of the hoist allowing all four pawls to engage with the ratchet gear in an offset configuration allowing finer adjustment and tensioning capability while maintaining pawl/ratchet gear engagement. The pawl springs are totally enclosed in the brake chamber and the patented pawl design allows, however unlikely, for both pawl springs to fail and for the quad pawls to maintain full functioning engagement with the ratchet gear making the hoist safer.

William Hackett verifies that the SS-L5 QP can be safely used over a 21-day single immersion and a 31-day multi immersion period which offers operators considerable financial advantages.

The design features, manufacture, verification testing and guidance for use, maintenance, and storage of the SS-L5 QP has also been developed in line with:

BP Document DEV-AAD-SS-SD-BP-0545
'Specification and compliance requirements for lever hoists used subsea on BP projects'

IMCA LR 005 D 028 June 2017 Rev. 2
'Guidance on the Use of Chain Lever Hoists in the offshore Subsea Environment'

IMCA LR 006 March 2018 Rev. 1
'Guidance for lifting operations'

The design and specification of the William Hackett SS-L5 QP lever hoist include:

• WORKING LOAD LIMIT RANGE: 800kg to 15 tonnes.
• LIGHT LOAD CAPABILITY: the SS-L5 QP is tested and certified at 2% of the lever hoist rated capacity.
• DABS (DUAL ANTI-LOCK  BRAKE  SYSTEM):  allows the load chain to be adjusted in freewheel mode without locking the brake.
• CONSTRUCTION AND DESIGN: minimises the ingress of contaminates to the internal brake mechanism surfaces.
• STAINLESS STEEL PAWL SPRINGS: specially designed to work with the SS-L5 patented quad pawls. The stainless steel springs are captivated in the brake chamber protecting them against damage.
• STAINLESS STEEL FIXINGS: all internal springs, circ clips securing the pawls onto the pawl stands, nyloc nuts and socket head cap screws are stainless steel.
• SINTERED/FUSED   FRICTION   MATERIAL: the brake material of the SS-L5 QP is fused directly onto the ratchet gear. This reduces the number of mating faces where there is a potential for ingress of contaminants that could affect the brake performance. Grooves cut into the brake material allow water to be displaced from the friction surface.
• LOAD CHAIN: the SS-L5 QP only uses a fully compliant Grade 8 load chain to BSEN818-7.
• CORROSION PROTECTION: the complete brake mechanism of the SS-L5 QP is corrosion protected including the pinion shaft, disc hub, change gear, ratchet gear, pawls, pawl stands, and load sheave. In addition, the load chain guide, stay bolts and chain stripper are also corrosion protected.
• HIGH-PERFORMANCE WATERPROOF GREASE: used throughout the SS-L5 QP lever hoist enhancing the corrosion protection.
• ADJUSTABLE TRAVELLING END STOP: the uniquely designed travelling end stop of the SS-L5 QP lever hoist allows the operator to position the end stop at any point of the slack section of the Grade 8 load chain. When the lever hoist is in a final rigged position the travelling end stop can be positioned adjacent to the body of the SS-L5 QP. This has the function of preventing the payout of the chain for whatever reason when the next time the lever hoist is operated.
• TEMPERATURE RANGE: -40°C to +120°C.
• OPTIONAL EQUIPMENT: the SS-L5 QP lever hoist can be fitted with an overload limiter and also hook adaptors to allow any Grade 8 fixing to be fitted to the SS-L5 QP to suit varying applications.
• PROOF TESTED: every SS-L5 QP lever hoist is proof tested to 1.5 times the Working Load Limit.
• SAFETY FACTOR: 4 : 1.
• MANUFACTURED: in the United Kingdom.

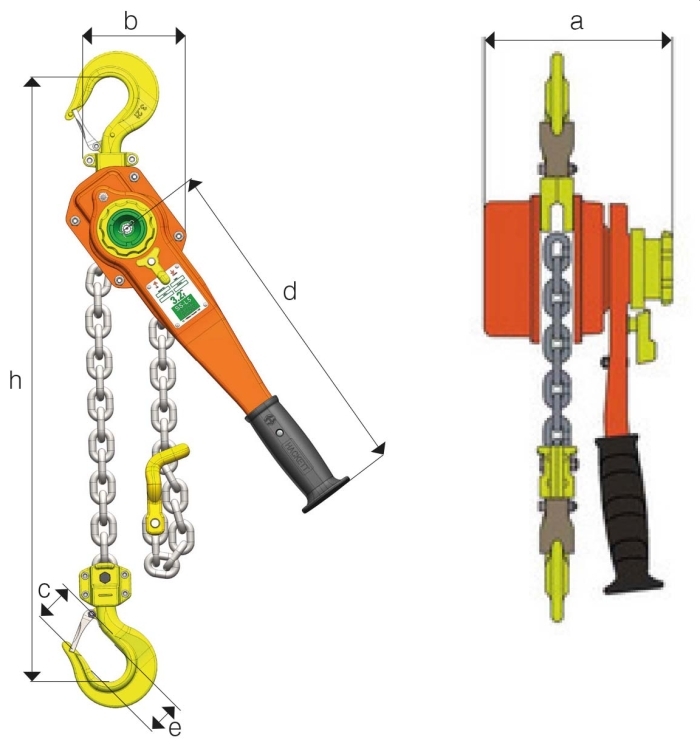

Specifications
