Hackett WH-AT Adjustable Trolley 2,000 kg to 6,000 kg - Beam Trolleys & Clamps - Lifting, Hoisting and Winching
Hackett WH-AT Adjustable Trolley 2,000 kg to 6,000 kg
Key Features
- High quality trolley range is precision engineered in W.L.L. capacities from 2000 Kg to 6,000 kf
- The WH-AT Adjustable Push Trolley features a light weight robust construction, allowing quick and effective installation onto various beams and girders.
- The adjustable trolley is fitted with wheel guard anti-drop plates and precision ball bearing wheels
- Adapts to the beam width by turning the adjustable bar and is fitted with a locking mechanism for ensuring secure clamping to the beam.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
Manufactured in accordance with BS EN13155: 2003 + A2: 2009 - Cranes - Safety – Non-Fixed Load Lifting Attachments.
The William Hackett WH-AT Adjustable Push Trolleymeet and exceed the requirements of the following international standards: British Standard BS EN 13157:2004 + AI:2009.
The WH-AT Adjustable Push Trolley features lightweight robust construction, allowing quick and effective installation onto various beams and girders.
The adjustable trolley is fitted with wheel guard anti-drop plates and precision ball bearing wheels allowing easy movement along the beam. It adapts to the beam width by turning the adjustable bar and is fitted with a locking mechanism for ensuring secure clamping to the beam.
W.L.L. capacities of 2.0 tonnes, 3.2 tonnes and 6.0 tonnes are available and the trolleys are designed to accommodate a range of beam widths.

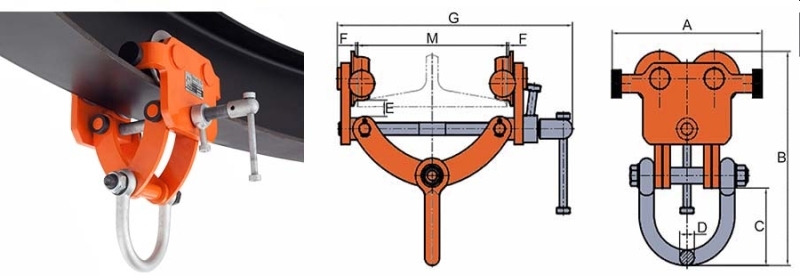

| Part Code |
WLL |
Min. Radius of Curve |
A |
B |
C |
D |
E |
F |
G |
Beam Width |
Mass |
| 014.200 | 2.00 | 0.7 | 204 | 276-322 | 100 | 20 | 21 | 2.5 | 320 | 76-203 | 8.10 |
| 014.320 | 3.20 | 1.1 | 246 | 334-374 | 111 | 20 | 25 | 2.5 | 330 | 76-203 | 14.25 |
| 014.600 | 6.00 | 1.4 | 286 | 384-463 | 124 | 25 | 33 | 3.0 | 454 | 100-305 | 27.40 |
