Hackett WH-BC fixed jaw super clamps 2,000 kg to 15,000 kg
Key Features
- High quality WH-BC fixed jaw super clamp range is precision engineered in W.L.L. capacities from 2,000 Kg to 15,000 kg
- WH-BC fixed jaw super clamp is fitted with a 'gusset' in both jaws of the beam clamp maximising contact between the beam and beam clamp increasing the grip of the beam clamp
- A shackle is fitted to the bottom of the beam clamp allowing an easy connection of the hoist to be attached.
- This fixed jaw super clamp can be used to an angle of 45° to the vertical. When the angle is moved away from the vertical the working load limit of the beam clamp needs to be reduced
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
Manufactured in accordance with BS EN13155: 2003 + A2: 2009 - Cranes - Safety - Non-Fixed Load Lifting Attachments.
The WH-BC fixed jaw super clamp is fitted with a 'gusset' in both jaws of the beam clamp maximising contact between the beam and beam clamp increasing the grip of the beam clamp. A shackle is fitted to the bottom of the beam clamp allowing an easy connection of the hoist to be attached.
This fixed jaw super clamp can be used to an angle of 45° to the vertical. When the angle is moved away from the vertical the working load limit of the beam clamp needs to be reduced. Please refer to the table opposite - reduction in working load limits when side loads are applied.

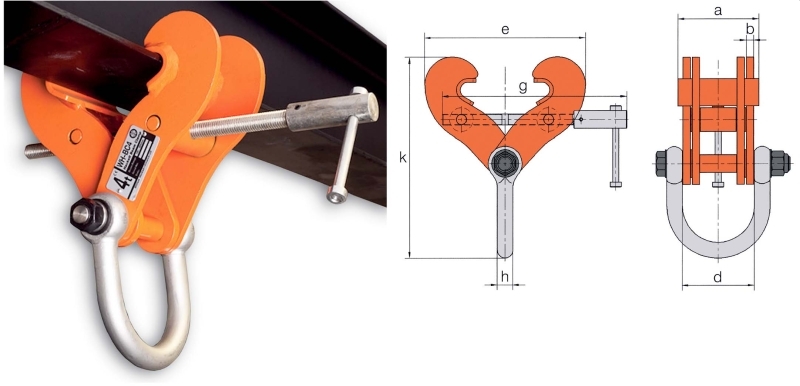

Specifications
| Part Code |
Model No. |
WLL tonnes |
Beam Range mm |
Max. Beam Thickness mm |
a mm |
b mm |
d mm |
e max |
e min |
g mm |
k max |
k min |
h mm |
Mass kg |
| 027.200 | WH-BC2 | 2.0 | 76-190 | 14 | 130 | 3 | 90 | 254 | 133 | 275 | 263 | 223 | 20 | 4.0 |
| 027.320 | WH-BC3 | 3.2 | 76-190 | 16 | 130 | 12 | 102 | 275 | 166 | 275 | 289 | 251 | 20 | 8.0 |
| 027.320.E | WH-BC3W | 3.2 | 127-350 | 16 | 130 | 12 | 102 | 438 | 228 | 560 | 375 | 294 | 20 | 11.5 |
| 027.400 | WH-BC4 | 4.0 | 150-254 | 12 | 130 | 10 | 112 | 371 | 185 | 410 | 369 | 308 | 25 | 11.0 |
| 027.500 | WH-BC5 | 5.0 | 76-190 | 12 | 130 | 12 | 116 | 306 | 191 | 295 | 338 | 300 | 25 | 10.0 |
| 027.500.E | WH-BC5W | 5.0 | 150-305 | 12 | 130 | 12 | 116 | 422 | 264 | 410 | 413 | 360 | 25 | 15.0 |
| 027.600 | WH-BC6 | 6.0 | 203-457 | 24 | 140 | 12 | 116 | 608 | 267 | 560 | 511 | 402 | 25 | 18.8 |
| 027/1000 | WH-BC10 | 10.0 | 203-457 | 24 | 140 | 20 | 118 | 608 | 267 | 560 | 530 | 421 | 32 | 28.0 |
| 027/1500 | WH-BC15 | 15.0 | 203-457 | 54 | 170 | 20 | 116.5 | 648 | 400 | 660 | 684 | 608 | 40 | 49.5 |
| 027/1500.E | WH-BC15W | 15.0 | 406-610 | 54 | 170 | 20 | 116.5 | 800 | 600 | 810 | 812 | 706 | 40 | 58.5 |
