Hackett WH-C4 Hand Chain Hoist 500 kg to 50 t. (Full range)
Key Features
- WORKING LOAD LIMIT RANGE: 500kg to 50 tonnes.
- LIGHT LOAD CAPABILITY: the WH-C4 is tested and certified at 2% of the chain hoist rated capacity.
- TWIN PAWL: double safety - SAFETY LATCHES - OVERLOAD INDICATOR MARKS - fitted as standard.
- FLEETING/CROSS HAULING: the WH-C4 chain hoist is tested and certified for fleeting or cross hauling applications up to 45° from the vertical without deration.
- OVERLOAD LIMITER: available as an option upon request.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
The William Hackett WH-C4 chain hoist meets and exceeds the requirements of the following international standards:
British Standard BS EN13157:2004 + AI:2009
American Standard ASME B30.16-2012
Australian Standard AS1418.2-1997
South African Standard SANS 1594:2007
NORSOK R-002: 2017.
The William Hackett WH-C4 chain hoist is manufactured in accordance with EN13157 which requires that it can be used within an operating temperature range of -40°C to +55°C. Please note that the maximum operating temperature range of William Hackett hoists can be increased to 65°C subject to operator competency and safety.
The design and specification of the William Hackett WH-C4 chain hoist include:
- WORKING LOAD LIMIT RANGE: 500kg to 50 tonnes.
- LIGHT LOAD CAPABILITY: the WH-C4 is tested and certified at 2% of the chain hoist rated capacity.
- TWIN PAWL: double safety; fitted as standard.
- SAFETY LATCHES: the WH-C4 chain hoist top and bottom hooks are fitted with heavy-duty cast steel latches. The latch and hook tips are integrated creating a strong and robust hook closure.
- OVERLOAD INDICATOR MARKS: WH-C4 chain block top and bottom hooks have, as part of the hook forging, overload indicator marks either side of the hook throat. By measuring the distance between the indicator marks, the hook can be quickly and easily checked to see if any stretch has occurred due to misuse or overloading.
- HAND CHAIN JOINER: a unique hand chain joiner is used as a quick and secure method of joining the hand chain without the need to cut, bend, open and close a link of existing hand chain.
- HOOK HOUSING: the WH-C4 chain hoist top and bottom hook housing is secured with socket head cap screws/hex head bolts and nyloc insert locking nuts.
- FLEETING/CROSS HAULING: the WH-C4 chain hoist is tested and certified for fleeting or cross hauling applications up to 45° from the vertical without deration.
- LOAD CHAIN: WH-C4 chain blocks are fitted with a load chain that fully complies with international standard BS EN818-7 Grade T (8).
- OVERLOAD LIMITER: available as an option upon request.
|

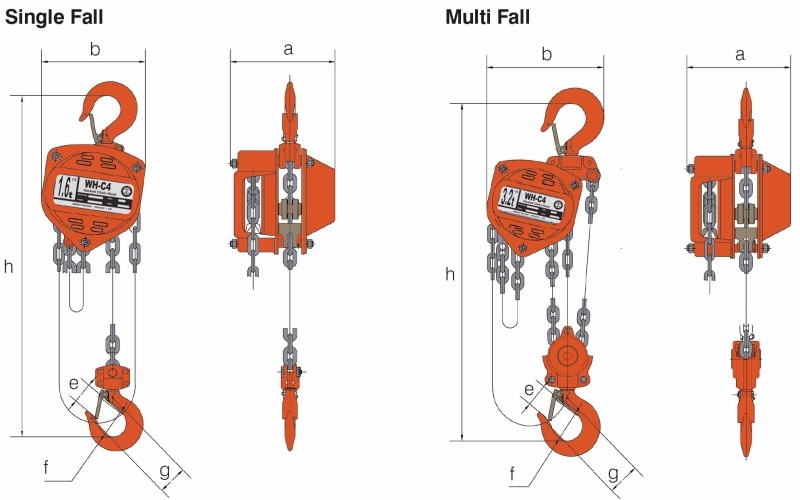

Part Code |
WLL tonnes |
No. of Falls |
Load Chain mm |
Hand Chain mm |
Standard Lift m |
a mm |
b mm |
e mm |
f mm |
g mm |
h mm |
Mass kg |
Extra Weight per M kg |
| 022.050 | 0.50 | 1 | 5 x 15 | 5 x 25 | 3 | 125 | 130 | 22.5 | 32 | 37 | 280 | 7.80 | 1.38 |
| 022.100 | 1.00 | 1 | 6 x 18 | 5 x 25 | 3 | 134 | 155 | 26.5 | 40 | 44 | 306 | 11.10 | 1.62 |
| 022.160 | 1.60 | 1 | 8 x 24 | 5 x 25 | 3 | 151 | 173 | 32.5 | 42 | 48 | 368 | 15.80 | 2.23 |
| 022.200 | 2.00 | 1 | 8 x 24 | 5 x 25 | 3 | 157 | 185 | 36.5 | 46 | 52 | 445 | 16.80 | 2.23 |
| 022.32D00 | 3.20 | 2 | 8 x 24 | 5 x 25 | 3 | 157 | 235 | 43.5 | 52 | 62 | 520 | 24.20 | 3.62 |
| 022.500 | 5.00 | 2 | 10 x 30 | 5 x 25 | 3 | 180 | 262 | 51.0 | 60 | 77 | 600 | 39.80 | 5.18 |
| 022.750 | 7.50 | 3 | 10 x 30 | 5 x 25 | 3 | 192 | 373 | 64.0 | 85 | - | 740 | 72.40 | 7.60 |
| 022.1000 | 10.00 | 4 | 10 x 30 | 5 x 25 | 3 | 180 | 365 | 53.0 | 85 | - | 760 | 89.70 | 9.52 |
| 022/1500 | 15.00 | 6 | 10 x 30 | 5 x 25 | 3 | 210 | 406 | 80.0 | 100 | - | 1000 | 91.10 | 13.86 |
| 022/2000 | 20.00 | 8 | 10 x 30 | 5 x 25 | 3 | 225 | 550 | 80.0 | 110 | - | 1150 | 197.00 | 19.03 |
| 024/3000 | 30.00 | 12 | 10 x 30 | 5 x 25 | 3 | 360 | 680 | 80.0 | 110 | - | 1250 | 301.00 | 27.71 |
| 024/5000 | 50.00 | 20 | 10 x 30 | 5 x 25 | 3 | 585 | 832 | 133.0 | 170 | - | 1700 | 877.00 | 45.80 |
