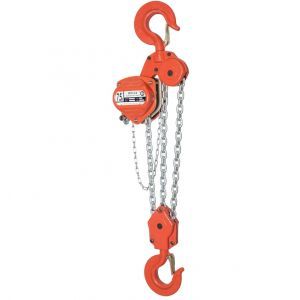

Hackett WH-CP-C4 Anti-Corrosion Hand Chain Hoist 500 kg to 2,000 kg
Key Features
- CP-C4 anti corrosion chain hoists. These hoists can be supplied in the following configurations; Single hook suspension unit
- Calibrated Grade T (8) load chain to BS EN818-7 zinc plated with zinc plated hand chain or
- Calibrated Grade S (6) 316L stainless steel load chain, hand chain and bottom hook (stainless steel bottom hooks are only available for 500kg and 1 tonne units)
- 500hrs + Protection against salt spray tests according to ASTM B117
- OVERLOAD LIMITER: available as an option upon request.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
The William Hackett CP-C4 corrosion protected chain hoist meets and exceeds the requirements of the following international standards:
British Standard BS EN13157:2004 + AI:2009
American Standard ASME B30.16-2012
Australian Standard AS1418.2-1997
South African Standard SANS 1594:2007
NORSOK R-002: 2017.
The William Hackett CP-C4 chain hoist is manufactured in accordance with EN13157 which requires that it can be used within an operating temperature range of -40°C to +55°C.
William Hackett has taken its extensive knowledge of corrosion protection acquired in the supply of specialist topside and subsea hoisting range to the offshore sector and translated this technology to a second-generation range of William Hackett CP-C4 anti-corrosion chain hoists. These hoists can be supplied in the following configurations;
- The single hook suspension unit
- Low headroom combined chain hoist and push travel trolley
- Low headroom combined chain hoist and geared travel trolley
All the above hoist configurations can also be supplied with the following options:
- Calibrated Grade T (8) load chain to BS EN818-7 DT9 corrosion coated and hand chain Dacromet corrosion coating.
- Calibrated Grade S (6) 316L stainless steel load chain, hand chain and bottom hook (stainless steel bottom hooks are only available for 500kg and 1 tonne units)
- Overload protection option available.
Features
- 500hrs + Protection against salt spray tests according to ASTM B117
- Twin pawls as standard
- Heavy-duty forged safety catches
- Stainless steel fixings used throughout the hoist
- Hook housing is bolt connected using cap head screws and nyloc nuts
- All hoist components are corrosion protected
- Load chain meets the requirements of European standards: EN818-7
- Compact and robust design for easy handling
Performance and Testing
The William Hackett CP-C4 chain hoist has been fully tried and tested to include:
- Minimum Breaking Load - a minimum of 4 x the WLL
- The load chain anchor / end stop tested to at least 2.5 x the WLL with no restriction of either the brake or gears
- All Hoists are 100% proof tested at 1.5 x the Working Load Limit
- Light load of 2% of Working Load Limit
Specifications
| Part Code | WLL tonnes |
No. of Falls |
Load Chain Size mm |
Standard Lift mm |
a mm |
b mm |
e mm |
f mm |
g mm |
h mm |
Mass |
Extra Weight |
| 022.050.CP | 0.50 | 1 | 5.0 x 15 | 3 | 125 | 130 | 27.5 | 32 | 37 | 280 | 7.80 | 1.38 |
| 022.100.CP | 1.00 | 1 | 6.0 x 18 | 3 | 134 | 155 | 31.5 | 40 | 44 | 306 | 11.10 | 1.62 |
| 022.200.CP | 2.00 | 1 | 8.0 x 24 | 3 | 157 | 185 | 36.5 | 46 | 52 | 445 | 16.80 | 2.23 |
